Broadband Inductors

Gowanda’s broadband inductors are engineered to provide reliable performance and signal integrity across a wide operational spectrum, from 40 MHz to 40 GHz. In complex high-frequency systems, such as telecommunications and RF test setups, the ability of a single component to perform consistently across a broad range is critical. This simplifies the design process and ensures predictable behavior in demanding RF and microwave circuits, bringing enhanced reliability and efficiency to your designs.

Consistent Performance: Delivers predictable impedance over a wide range of frequencies.
Design Simplification: Replaces multiple narrowband components, saving board space.
Enhanced Signal Integrity: Features high self-resonant frequencies (SRF) for clear signal transmission.
Application-Specific Options: Available in various standard and custom configurations.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	Turns	Wire Size (AWG)	Wire Type	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_turns	hf:tax:pa_wire-size-awg	hf:tax:pa_wire-type	hf:tax:pa_series
C1000FL5726G6	THT	22	0.215	2.7	57	26	Gold Plated Copper	tht	22	0-215	2-7	57	26	gold-plated-copper	c1000fl
C1000FL5726C6	THT	22	0.215	2.7	57	26	Copper	tht	22	0-215	2-7	57	26	copper	c1000fl
C750FL5328G6	THT	16	0.265	2.2	53	28	Gold Plated Copper	tht	16	0-265	2-2	53	28	gold-plated-copper	c750fl
C750FL5328C6	THT	16	0.265	2.2	53	28	Copper	tht	16	0-265	2-2	53	28	copper	c750fl
C1000FL4524G6	THT	13	0.11	3.8	45	24	Gold Plated Copper	tht	13	0-11	3-8	45	24	gold-plated-copper	c1000fl
C1000FL4524C6	THT	13	0.11	3.8	45	24	Copper	tht	13	0-11	3-8	45	24	copper	c1000fl
C750FL4326G6	THT	12	0.14	3	43	26	Gold Plated Copper	tht	12	0-14	3	43	26	gold-plated-copper	c750fl
C750FL4326C6	THT	12	0.14	3	43	26	Copper	tht	12	0-14	3	43	26	copper	c750fl
C182SM11047G6	SMT	10.7	7.1	0.15	110	47	Gold Plated Copper	smt	10-7	7-1	0-15	110	47	gold-plated-copper	c182sm
C182FL11047G6	THT	10.7	7.1	0.15	110	47	Gold Plated Copper	tht	10-7	7-1	0-15	110	47	gold-plated-copper	c182fl
C225SM11047G6	SMT	8	6.4	0.116	110	47	Gold Plated Copper	smt	8	6-4	0-116	110	47	gold-plated-copper	c225sm
C225FL11047G6	THT	8	6.4	0.089	110	47	Gold Plated Copper	tht	8	6-4	0-089	110	47	gold-plated-copper	c225fl
C750FL3424G6	THT	7	0.07	4.1	34	24	Gold Plated Copper	tht	7	0-07	4-1	34	24	gold-plated-copper	c750fl
C750FL3424C6	THT	7	0.07	4.1	34	24	Copper	tht	7	0-07	4-1	34	24	copper	c750fl
C550FL3528G6	THT	6.8	0.125	2.2	35	28	Gold Plated Copper	tht	6-8	0-125	2-2	35	28	gold-plated-copper	c550fl
C550FL3528C6	THT	6.8	0.125	2.2	35	28	Copper	tht	6-8	0-125	2-2	35	28	copper	c550fl
C182SM7844G6	SMT	6	2.85	0.236	78	44	Gold Plated Copper	smt	6	2-85	0-236	78	44	gold-plated-copper	c182sm
C182FL7844G6	THT	6	2.85	0.236	78	44	Gold Plated Copper	tht	6	2-85	0-236	78	44	gold-plated-copper	c182fl
C225SM8544G6	SMT	5.1	2.6	0.182	85	44	Gold Plated Copper	smt	5-1	2-6	0-182	85	44	gold-plated-copper	c225sm
C225FL8544G6	THT	5.1	2.6	0.139	85	44	Gold Plated Copper	tht	5-1	2-6	0-139	85	44	gold-plated-copper	c225fl
C550FL3126G6	THT	5	0.07	3	31	26	Gold Plated Copper	tht	5	0-07	3	31	26	gold-plated-copper	c550fl
C550FL3126C6	THT	5	0.07	3	31	26	Copper	tht	5	0-07	3	31	26	copper	c550fl
C1000FL2920G6	THT	5	0.03	7.7	29	20	Gold Plated Copper	tht	5	0-03	7-7	29	20	gold-plated-copper	c1000fl
C1000FL2920C6	THT	5	0.03	7.7	29	20	Copper	tht	5	0-03	7-7	29	20	copper	c1000fl
C225FL7042G6	THT	3.8	1.5	0.184	70	42	Gold Plated Copper	tht	3-8	1-5	0-184	70	42	gold-plated-copper	c225fl
C102SM6047G6	SMT	3.8	3.7	0.182	60	47	Gold Plated Copper	smt	3-8	3-7	0-182	60	47	gold-plated-copper	c102sm
C102FL6047G6	THT	3.8	3.7	0.182	60	47	Gold Plated Copper	tht	3-8	3-7	0-182	60	47	gold-plated-copper	c102fl
C225SM7042G6	SMT	3.6	1.5	0.239	70	43	Gold Plated Copper	smt	3-6	1-5	0-239	70	43	gold-plated-copper	c225sm
C550FL2524G6	THT	3.1	0.035	4.5	25	24	Gold Plated Copper	tht	3-1	0-035	4-5	25	24	gold-plated-copper	c550fl
C550FL2524C6	THT	3.1	0.035	4.5	25	24	Copper	tht	3-1	0-035	4-5	25	24	copper	c550fl
C182SM6042G6	SMT	3	1.29	0.35	60	42	Gold Plated Copper	smt	3	1-29	0-35	60	42	gold-plated-copper	c182sm
C182FL6042G6	THT	3	1.29	0.35	60	42	Gold Plated Copper	tht	3	1-29	0-35	60	42	gold-plated-copper	c182fl
C750FL2220G6	THT	2.5	0.02	8.1	22	20	Gold Plated Copper	tht	2-5	0-02	8-1	22	20	gold-plated-copper	c750fl
C750FL2220C6	THT	2.5	0.02	8.1	22	20	Copper	tht	2-5	0-02	8-1	22	20	copper	c750fl
C225SM5740G6	SMT	2.4	0.8	0.328	57	40	Gold Plated Copper	smt	2-4	0-8	0-328	57	40	gold-plated-copper	c225sm
C225FL5740G6	THT	2.4	0.8	0.251	57	40	Gold Plated Copper	tht	2-4	0-8	0-251	57	40	gold-plated-copper	c225fl
C182SM4840G6	SMT	2	0.65	0.494	48	40	Gold Plated Copper	smt	2	0-65	0-494	48	40	gold-plated-copper	c182sm
C182FL4840G6	THT	2	0.65	0.494	48	40	Gold Plated Copper	tht	2	0-65	0-494	48	40	gold-plated-copper	c182fl
C102SM4544G6	SMT	2	1.6	0.277	45	44	Gold Plated Copper	smt	2	1-6	0-277	45	44	gold-plated-copper	c102sm
C102FL4544G6	THT	2	1.6	0.277	45	44	Gold Plated Copper	tht	2	1-6	0-277	45	44	gold-plated-copper	c102fl
C100SMNR4947G6	SMT	1.54	1.7	0.14	49	47	Gold Plated Copper	smt	1-54	1-7	0-14	49	47	gold-plated-copper	c100smnr
C100SMNL4947G6	SMT	1.54	1.7	0.14	49	47	Gold Plated Copper	smt	1-54	1-7	0-14	49	47	gold-plated-copper	c100smnl
C100FL4947G6	THT	1.54	1.7	0.14	49	47	Gold Plated Copper	tht	1-54	1-7	0-14	49	47	gold-plated-copper	c100fl
C182SM3638G6	SMT	1.47	0.33	0.694	36	38	Gold Plated Copper	smt	1-47	0-33	0-694	36	38	gold-plated-copper	c182sm
C182FL3638G6	THT	1.47	0.33	0.694	36	38	Gold Plated Copper	tht	1-47	0-33	0-694	36	38	gold-plated-copper	c182fl
C225SM4338G6	SMT	1.3	0.47	0.428	43	38	Gold Plated Copper	smt	1-3	0-47	0-428	43	38	gold-plated-copper	c225sm
C225FL4338G6	THT	1.3	0.47	0.328	43	38	Gold Plated Copper	tht	1-3	0-47	0-328	43	38	gold-plated-copper	c225fl
C550FL1520G6	THT	1.2	0.02	10.5	15	20	Gold Plated Copper	tht	1-2	0-02	10-5	15	20	gold-plated-copper	c550fl
C550FL1520C6	THT	1.2	0.02	10.5	15	20	Copper	tht	1-2	0-02	10-5	15	20	copper	c550fl
C102SM3442G6	SMT	1.1	0.64	0.438	34	42	Gold Plated Copper	smt	1-1	0-64	0-438	34	42	gold-plated-copper	c102sm
C102FL3442G6	THT	1.1	0.64	0.438	34	42	Gold Plated Copper	tht	1-1	0-64	0-438	34	42	gold-plated-copper	c102fl
C070SM4347G6	SMT	1.05	1.5	0.15	43	47	Gold Plated Copper	smt	1-05	1-5	0-15	43	47	gold-plated-copper	c070sm
C070FL4347G6	THT	1.05	1.5	0.15	43	47	Gold Plated Copper	tht	1-05	1-5	0-15	43	47	gold-plated-copper	c070fl
C305FL3432G6	THT	1	0.125	1.3	34	32	Gold Plated Copper	tht	1	0-125	1-3	34	32	gold-plated-copper	c305fl
C305FL3432C6	THT	1	0.125	1.3	34	32	Copper	tht	1	0-125	1-3	34	32	copper	c305fl
C100SMNR3944G6	SMT	1	0.74	0.241	39	44	Gold Plated Copper	smt	1	0-74	0-241	39	44	gold-plated-copper	c100smnr
C100SMNL3944G6	SMT	1	0.74	0.241	39	44	Gold Plated Copper	smt	1	0-74	0-241	39	44	gold-plated-copper	c100smnl
C100FL3944G6	THT	1	0.74	0.211	39	44	Gold Plated Copper	tht	1	0-74	0-211	39	44	gold-plated-copper	c100fl
C305FL2830G6	THT	0.9	0.07	2	28	30	Gold Plated Copper	tht	0-9	0-07	2	28	30	gold-plated-copper	c305fl
C305FL2830C6	THT	0.9	0.07	2	28	30	Copper	tht	0-9	0-07	2	28	30	copper	c305fl
C225SM3536G6	SMT	0.89	0.39	0.469	35	36	Gold Plated Copper	smt	0-89	0-39	0-469	35	36	gold-plated-copper	c225sm
C225FL3536G6	THT	0.89	0.39	0.36	35	36	Gold Plated Copper	tht	0-89	0-39	0-36	35	36	gold-plated-copper	c225fl
C070SM3846G6	SMT	0.8	1	0.175	38	46	Gold Plated Copper	smt	0-8	1	0-175	38	46	gold-plated-copper	c070sm
C070FL3846G6	THT	0.8	1	0.175	38	46	Gold Plated Copper	tht	0-8	1	0-175	38	46	gold-plated-copper	c070fl
C102SM2740G6	SMT	0.7	0.32	0.619	27	40	Gold Plated Copper	smt	0-7	0-32	0-619	27	40	gold-plated-copper	c102sm
C102FL2740G6	THT	0.7	0.32	0.619	27	40	Gold Plated Copper	tht	0-7	0-32	0-619	27	40	gold-plated-copper	c102fl
C070SM3445G6	SMT	0.7	0.82	0.19	34	45	Gold Plated Copper	smt	0-7	0-82	0-19	34	45	gold-plated-copper	c070sm
C070FL3445G6	THT	0.7	0.82	0.19	34	45	Gold Plated Copper	tht	0-7	0-82	0-19	34	45	gold-plated-copper	c070fl
C225SM2935G6	SMT	0.6	0.16	0.733	29	35	Gold Plated Copper	smt	0-6	0-16	0-733	29	35	gold-plated-copper	c225sm
C225FL2935G6	THT	0.6	0.16	0.562	29	35	Gold Plated Copper	tht	0-6	0-16	0-562	29	35	gold-plated-copper	c225fl
C100SMNL3142G6	SMT	0.58	0.47	0.302	31	42	Gold Plated Copper	smt	0-58	0-47	0-302	31	42	gold-plated-copper	c100smnl
C100FL3142G6	THT	0.58	0.47	0.264	31	42	Gold Plated Copper	tht	0-58	0-47	0-264	31	42	gold-plated-copper	c100fl
C070SM3044G6	SMT	0.55	0.6	0.235	30	44	Gold Plated Copper	smt	0-55	0-6	0-235	30	44	gold-plated-copper	c070sm
C070FL3044G6	THT	0.55	0.6	0.235	30	44	Gold Plated Copper	tht	0-55	0-6	0-235	30	44	gold-plated-copper	c070fl
C305FL2128G6	THT	0.5	0.035	3.5	21	28	Gold Plated Copper	tht	0-5	0-035	3-5	21	28	gold-plated-copper	c305fl
C305FL2128C6	THT	0.5	0.035	3.5	21	28	Copper	tht	0-5	0-035	3-5	21	28	copper	c305fl
C100SMNR3142G6	SMT	0.48	0.47	0.302	31	42	Gold Plated Copper	smt	0-48	0-47	0-302	31	42	gold-plated-copper	c100smnr
C102SM2238G6	SMT	0.47	0.19	0.815	22	38	Gold Plated Copper	smt	0-47	0-19	0-815	22	38	gold-plated-copper	c102sm
C102FL2238G6	THT	0.47	0.19	0.815	22	38	Gold Plated Copper	tht	0-47	0-19	0-815	22	38	gold-plated-copper	c102fl

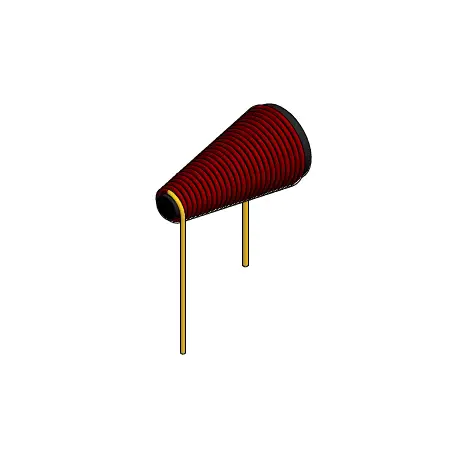

C050FL2947G6	THT	0.47	0.87	0.275	29	47	Gold Plated Copper	tht	0-47	0-87	0-275	29	47	gold-plated-copper	c050fl
C225SM2432G6	SMT	0.45	0.07	1.1	24	32	Gold Plated Copper	smt	0-45	0-07	1-1	24	32	gold-plated-copper	c225sm
C100SMNR2540G6	SMT	0.44	0.21	0.452	25	40	Gold Plated Copper	smt	0-44	0-21	0-452	25	40	gold-plated-copper	c100smnr
C100SMNL2540G6	SMT	0.44	0.21	0.452	25	40	Gold Plated Copper	smt	0-44	0-21	0-452	25	40	gold-plated-copper	c100smnl
C070SM2542G6	SMT	0.39	0.28	0.34	25	42	Gold Plated Copper	smt	0-39	0-28	0-34	25	42	gold-plated-copper	c070sm
C070FL2542G6	THT	0.39	0.28	0.34	25	42	Gold Plated Copper	tht	0-39	0-28	0-34	25	42	gold-plated-copper	c070fl
C100FL2540G6	THT	0.37	0.21	0.396	25	40	Gold Plated Copper	tht	0-37	0-21	0-396	25	40	gold-plated-copper	c100fl
C305FL1726C6	THT	0.3	0.02	7.2	17	26	Copper	tht	0-3	0-02	7-2	17	26	copper	c305fl
C305FL1726G6	THT	0.3	0.02	7.2	17	26	Gold Plated Copper	tht	0-3	0-02	7-2	17	26	gold-plated-copper	c305fl
C050FL2144G6	THT	0.28	0.45	0.28	21	44	Gold Plated Copper	tht	0-28	0-45	0-28	21	44	gold-plated-copper	c050fl
C070SM2040G6	SMT	0.265	0.17	0.425	20	40	Gold Plated Copper	smt	0-265	0-17	0-425	20	40	gold-plated-copper	c070sm
C070FL2040G6	THT	0.265	0.17	0.425	20	40	Gold Plated Copper	tht	0-265	0-17	0-425	20	40	gold-plated-copper	c070fl
C100FL1938G6	THT	0.26	0.1	0.573	19	38	Gold Plated Copper	tht	0-26	0-1	0-573	19	38	gold-plated-copper	c100fl
C100FL1938C6	THT	0.26	0.1	0.573	19	38	Gold Plated Copper	tht	0-26	0-1	0-573	19	38	gold-plated-copper	c100fl
C100SMNR1938G6	SMT	0.2	0.1	0.655	19	38	Gold Plated Copper	smt	0-2	0-1	0-655	19	38	gold-plated-copper	c100smnr
C100SMNL1938G6	SMT	0.2	0.1	0.655	19	38	Gold Plated Copper	smt	0-2	0-1	0-655	19	38	gold-plated-copper	c100smnl
C070SM1538G6	SMT	0.165	0.08	0.625	15	38	Gold Plated Copper	smt	0-165	0-08	0-625	15	38	gold-plated-copper	c070sm
C070FL1538G6	THT	0.165	0.08	0.625	15	38	Gold Plated Copper	tht	0-165	0-08	0-625	15	38	gold-plated-copper	c070fl
