C070FL SERIES

Broadband Conical Flying Lead Inductor
Datasheet
RoHS Compliant

The C070FL Series from Gowanda Electronics is a line of broadband microwave RF conical inductors designed to meet the growing demands for high-frequency performance in various electronic applications. This series is available in two configurations: Surface Mount (C070SM) and Flying Lead (C070FL), with the latter measuring just 0.07 inches in length, making it suitable for compact designs.

  • Flying leads allow precise positioning and adjustment of the mounting angle
  • High Performance: Designed for RF applications with low insertion loss and high Q factors
  • Versatile Applications: Suitable for communication systems, bias T's, and other demanding electronic applications.
Request Sample
Request Quote

PARAMETRIC SEARCH

ImageNameMountingInductance (µH)DCR (Ω)Current Rating (A DC)TurnsWire Size (AWG)Wire Typehf:tax:pa_mounting-typehf:tax:pa_inductance-µhhf:tax:pa_dcr-ωhf:tax:pa_current-rating-a-dchf:tax:pa_turnshf:tax:pa_wire-size-awghf:tax:pa_wire-typehf:tax:pa_series

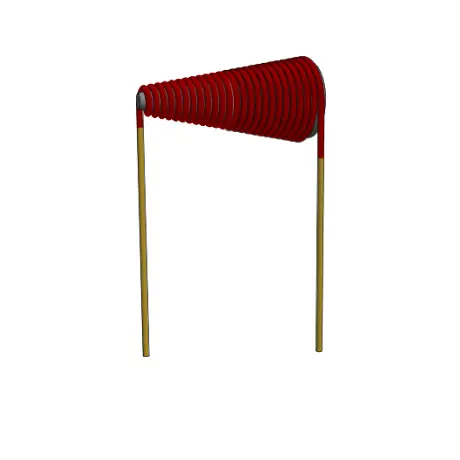

Broadband Conical Flying Lead Inductor
C070FL4347G6THT1.051.50.154347Gold Plated Coppertht1-051-50-154347gold-plated-copperc070fl
Broadband Conical Flying Lead Inductor
C070FL3846G6THT0.810.1753846Gold Plated Coppertht0-810-1753846gold-plated-copperc070fl
Broadband Conical Flying Lead Inductor
C070FL3445G6THT0.70.820.193445Gold Plated Coppertht0-70-820-193445gold-plated-copperc070fl
Broadband Conical Flying Lead Inductor
C070FL3044G6THT0.550.60.2353044Gold Plated Coppertht0-550-60-2353044gold-plated-copperc070fl
Broadband Conical Flying Lead Inductor
C070FL2542G6THT0.390.280.342542Gold Plated Coppertht0-390-280-342542gold-plated-copperc070fl
Broadband Conical Flying Lead Inductor
C070FL2040G6THT0.2650.170.4252040Gold Plated Coppertht0-2650-170-4252040gold-plated-copperc070fl
Broadband Conical Flying Lead Inductor
C070FL1538G6THT0.1650.080.6251538Gold Plated Coppertht0-1650-080-6251538gold-plated-copperc070fl

Notes

  1. Current Rating is based on a 35°C temperature rise at an ambient
    temperature of 90°C
  2. All non-tolerance and electrical data are reference only and based
    on nominal data
  3. MSL Rating: 1
  4. Materials are fungus-inert to meet method 508 of MIL-STD-810H
  5. Meets a TML (Total Mass Loss) requirement of 1.0% maximum
    when tested in accordance with ASTM E595; this calculation does
    not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
