C1000FL SERIES

RoHS Compliant

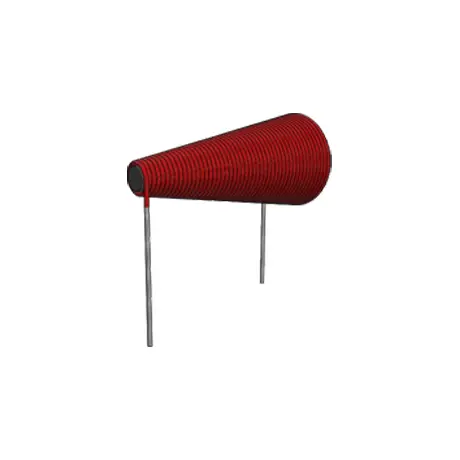

The C1000FL Series from Gowanda Electronics is a line of high-performance broadband conical inductors designed for demanding RF and microwave applications. These inductors are particularly effective in communication systems, bias T's, and filtering applications, where they play a crucial role in maintaining signal integrity and minimizing noise.

PARAMETRIC SEARCH

ImageNameMountingInductance (µH)DCR (Ω)Current Rating (A DC)TurnsWire Size (AWG)Wire Typehf:tax:pa_mounting-typehf:tax:pa_inductance-µhhf:tax:pa_dcr-ωhf:tax:pa_current-rating-a-dchf:tax:pa_turnshf:tax:pa_wire-size-awghf:tax:pa_wire-typehf:tax:pa_series
Broadband Conical Flying Lead Inductor
C1000FL5726G6THT220.2152.75726Gold Plated Coppertht220-2152-75726gold-plated-copperc1000fl
Broadband Conical Flying Lead Inductor
C1000FL5726C6THT220.2152.75726Coppertht220-2152-75726copperc1000fl
Broadband Conical Flying Lead Inductor
C1000FL4524G6THT130.113.84524Gold Plated Coppertht130-113-84524gold-plated-copperc1000fl
Broadband Conical Flying Lead Inductor
C1000FL4524C6THT130.113.84524Coppertht130-113-84524copperc1000fl
Broadband Conical Flying Lead Inductor
C1000FL2920C6THT50.037.72920Coppertht50-037-72920copperc1000fl
Broadband Conical Flying Lead Inductor
C1000FL2920G6THT50.037.72920Gold Plated Coppertht50-037-72920gold-plated-copperc1000fl

Notes

  1. Current Rating is based on a 100°C temperature rise at an ambient
    temperature of 25°C
  2. All non-tolerance and electrical data are reference only and based
    on nominal data
  3. MSL Rating: 1
  4. Materials are fungus-inert to meet method 508 of MIL-STD-810H
  5. Meets a TML (Total Mass Loss) requirement of 1.0% maximum
    when tested in accordance with ASTM E595; this calculation does
    not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
