C102FL SERIES

RoHS Compliant

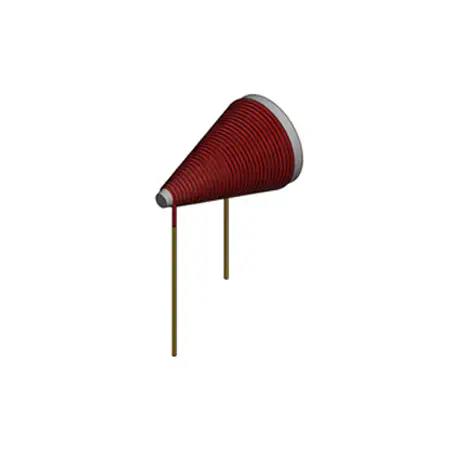

The C102FL Series from Gowanda Electronics is a line of broadband conical inductors designed for high-frequency applications. These inductors are available in Flying Lead (FL) configurations and are optimized for use in various communication and RF applications, including bias T's, microwave circuitry, and RF test setups.

PARAMETRIC SEARCH

ImageNameMountingInductance (µH)DCR (Ω)Current Rating (A DC)TurnsWire Size (AWG)Wire Typehf:tax:pa_mounting-typehf:tax:pa_inductance-µhhf:tax:pa_dcr-ωhf:tax:pa_current-rating-a-dchf:tax:pa_turnshf:tax:pa_wire-size-awghf:tax:pa_wire-typehf:tax:pa_series
Broadband Conical Flying Lead Inductor
C102FL6047G6THT3.83.70.1826047Gold Plated Coppertht3-83-70-1826047gold-plated-copperc102fl
Broadband Conical Flying Lead Inductor
C102FL4544G6THT21.60.2774544Gold Plated Coppertht21-60-2774544gold-plated-copperc102fl
Broadband Conical Flying Lead Inductor
C102FL3442G6THT1.10.640.4383442Gold Plated Coppertht1-10-640-4383442gold-plated-copperc102fl
Broadband Conical Flying Lead Inductor
C102FL2740G6THT0.70.320.6192740Gold Plated Coppertht0-70-320-6192740gold-plated-copperc102fl
Broadband Conical Flying Lead Inductor
C102FL2238G6THT0.470.190.8152238Gold Plated Coppertht0-470-190-8152238gold-plated-copperc102fl

Notes

  1. Current Rating is based on a 100°C temperature rise at an ambient
    temperature of 25°C
  2. All non-tolerance and electrical data are reference only and based
    on nominal data
  3. MSL Rating: 1
  4. Materials are fungus-inert to meet method 508 of MIL-STD-810H
  5. Meets a TML (Total Mass Loss) requirement of 1.0% maximum
    when tested in accordance with ASTM E595; this calculation does
    not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
