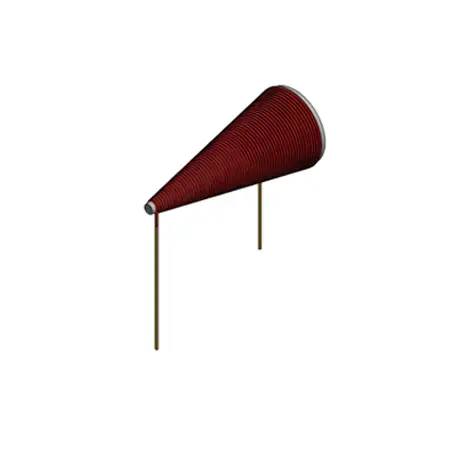

C182FL SERIES

Flying leads allow precise positioning and adjustment of the mounting angle
These inductors are designed to provide predictable frequency response and repeatable RF performance, essential for high-frequency applications.
High Performance: Designed for RF applications with low insertion loss and high Q factors
Versatile Applications: Suitable for communication systems, bias T's, and other demanding electronic applications.

PARAMETRIC SEARCH

Image	Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	Turns	Wire Size (AWG)	Wire Type	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_turns	hf:tax:pa_wire-size-awg	hf:tax:pa_wire-type	hf:tax:pa_series
	C182FL11047G6	THT	10.7	7.1	0.15	110	47	Gold Plated Copper	tht	10-7	7-1	0-15	110	47	gold-plated-copper	c182fl
	C182FL7844G6	THT	6	2.85	0.236	78	44	Gold Plated Copper	tht	6	2-85	0-236	78	44	gold-plated-copper	c182fl
	C182FL6042G6	THT	3	1.29	0.35	60	42	Gold Plated Copper	tht	3	1-29	0-35	60	42	gold-plated-copper	c182fl
	C182FL4840G6	THT	2	0.65	0.494	48	40	Gold Plated Copper	tht	2	0-65	0-494	48	40	gold-plated-copper	c182fl
	C182FL3638G6	THT	1.47	0.33	0.694	36	38	Gold Plated Copper	tht	1-47	0-33	0-694	36	38	gold-plated-copper	c182fl

Notes

Current Rating is based on a 100°C temperature rise at an ambient
temperature of 25°C
All non-tolerance and electrical data are reference only and based
on nominal data
MSL Rating: 1
Materials are fungus-inert to meet method 508 of MIL-STD-810H
Meets a TML (Total Mass Loss) requirement of 1.0% maximum
when tested in accordance with ASTM E595; this calculation does
not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
