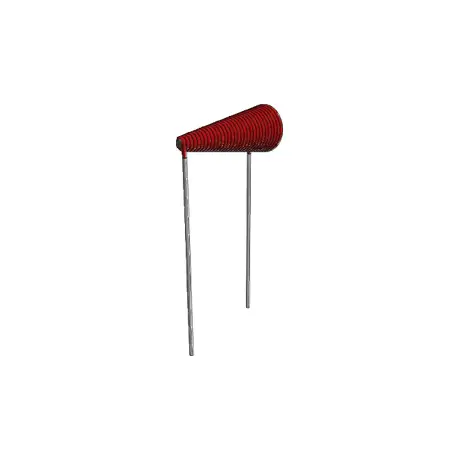

C305FL SERIES

Broadband Conical Flying Lead Inductor
Datasheet
RoHS Compliant

The C305FL Series from Gowanda Electronics is a line of broadband conical inductors designed for high-performance applications in RF and microwave environments. These inductors are particularly well-suited for communication systems, bias T's, and filtering applications, where they help to manage signal integrity and reduce noise.

  • Flying leads allow precise positioning and adjustment of the mounting angle
  • High Performance: Designed for RF applications with low insertion loss and high Q factors
  • Versatile Applications: Suitable for communication systems, bias T's, and other demanding electronic applications.
  • These inductors feature a unique conical shape that minimizes stray capacitance and allows for high impedance across a wide bandwidth, making them effective in filtering unwanted frequencies.
Request Sample
Request Quote

PARAMETRIC SEARCH

ImageNameMountingInductance (µH)DCR (Ω)Current Rating (A DC)TurnsWire Size (AWG)Wire Typehf:tax:pa_mounting-typehf:tax:pa_inductance-µhhf:tax:pa_dcr-ωhf:tax:pa_current-rating-a-dchf:tax:pa_turnshf:tax:pa_wire-size-awghf:tax:pa_wire-typehf:tax:pa_series
Broadband Conical Flying Lead Inductor
C305FL3432C6THT10.1251.33432Coppertht10-1251-33432copperc305fl
Broadband Conical Flying Lead Inductor
C305FL3432G6THT10.1251.33432Gold Plated Coppertht10-1251-33432gold-plated-copperc305fl
Broadband Conical Flying Lead Inductor
C305FL2830G6THT0.90.0722830Gold Plated Coppertht0-90-0722830gold-plated-copperc305fl
Broadband Conical Flying Lead Inductor
C305FL2830C6THT0.90.0722830Coppertht0-90-0722830copperc305fl
Broadband Conical Flying Lead Inductor
C305FL2128G6THT0.50.0353.52128Gold Plated Coppertht0-50-0353-52128gold-plated-copperc305fl
Broadband Conical Flying Lead Inductor
C305FL2128C6THT0.50.0353.52128Coppertht0-50-0353-52128copperc305fl
Broadband Conical Flying Lead Inductor
C305FL1726C6THT0.30.027.21726Coppertht0-30-027-21726copperc305fl
Broadband Conical Flying Lead Inductor
C305FL1726G6THT0.30.027.21726Gold Plated Coppertht0-30-027-21726gold-plated-copperc305fl

Notes

  1. Current Rating is based on a 100°C temperature rise at an ambient
    temperature of 25°C
  2. All non-tolerance and electrical data are reference only and based
    on nominal data
  3. MSL Rating: 1
  4. Materials are fungus-inert to meet method 508 of MIL-STD-810H
  5. Meets a TML (Total Mass Loss) requirement of 1.0% maximum
    when tested in accordance with ASTM E595; this calculation does
    not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
