C750FL SERIES

RoHS Compliant

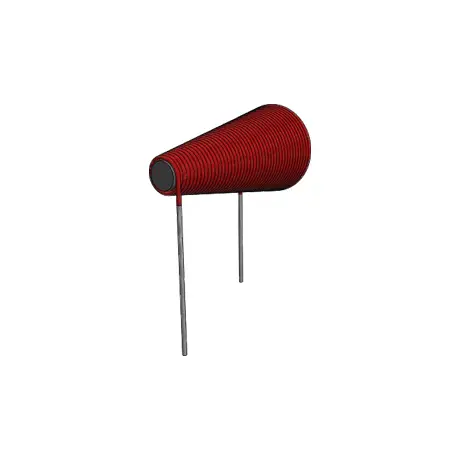

The C750FL Series from Gowanda Electronics is a collection of high-performance broadband conical inductors designed for RF and microwave applications. These inductors are particularly suitable for communication systems, bias T's, and filtering applications, where they help manage signal integrity and reduce unwanted noise.

PARAMETRIC SEARCH

ImageNameMountingInductance (µH)DCR (Ω)Current Rating (A DC)TurnsWire Size (AWG)Wire Typehf:tax:pa_mounting-typehf:tax:pa_inductance-µhhf:tax:pa_dcr-ωhf:tax:pa_current-rating-a-dchf:tax:pa_turnshf:tax:pa_wire-size-awghf:tax:pa_wire-typehf:tax:pa_series
Broadband Conical Flying Lead Inductor
C750FL5328G6THT160.2652.25328Gold Plated Coppertht160-2652-25328gold-plated-copperc750fl
Broadband Conical Flying Lead Inductor
C750FL5328C6THT160.2652.25328Coppertht160-2652-25328copperc750fl
Broadband Conical Flying Lead Inductor
C750FL4326G6THT120.1434326Gold Plated Coppertht120-1434326gold-plated-copperc750fl
Broadband Conical Flying Lead Inductor
C750FL4326C6THT120.1434326Coppertht120-1434326copperc750fl
Broadband Conical Flying Lead Inductor
C750FL3424G6THT70.074.13424Gold Plated Coppertht70-074-13424gold-plated-copperc750fl
Broadband Conical Flying Lead Inductor
C750FL3424C6THT70.074.13424Coppertht70-074-13424copperc750fl
Broadband Conical Flying Lead Inductor
C750FL2220C6THT2.50.028.12220Coppertht2-50-028-12220copperc750fl
Broadband Conical Flying Lead Inductor
C750FL2220G6THT2.50.028.12220Gold Plated Coppertht2-50-028-12220gold-plated-copperc750fl

Notes

  1. Current Rating is based on a 35°C temperature rise at an ambient
    temperature of 90°C
  2. All non-tolerance and electrical data are reference only and based
    on nominal data
  3. MSL Rating: 1
  4. Materials are fungus-inert to meet method 508 of MIL-STD-810H
  5. Meets a TML (Total Mass Loss) requirement of 1.0% maximum
    when tested in accordance with ASTM E595; this calculation does
    not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C

Download
Conical Brochure
