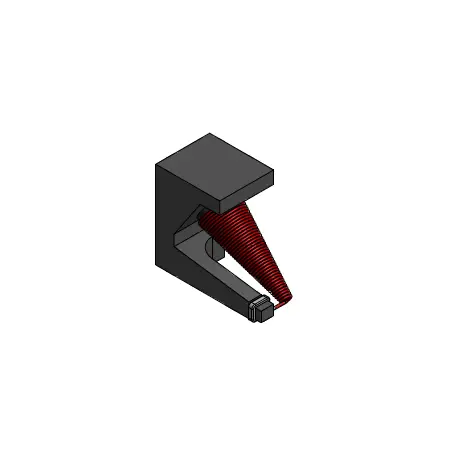

C100SMNL SERIES

Broadband Conical Surface Mount Inductor
Datasheet
RoHS Compliant

The C100SMNL series from Gowanda Electronics consists of surface-mount conical inductors designed for broadband applications, featuring low profile designs, high Q factors, and stable inductance across a wide frequency range. These inductors are optimized for use in high-frequency circuits, including RF test and measurement, transmission amplifiers, and critical aerospace and defense systems, ensuring reliable performance in demanding environments.

  • Surface-Mount Configuration: Designed for high-frequency SMT applications.
  • High Performance: Designed for RF applications with low insertion loss and high Q factors
  • Applications: RF test, transmission amplifiers, aerospace, and defense.
Request Sample
Request Quote

PARAMETRIC SEARCH

ImageNameMountingInductance (µH)DCR (Ω)Current Rating (A DC)TurnsWire Size (AWG)Wire Typehf:tax:pa_mounting-typehf:tax:pa_inductance-µhhf:tax:pa_dcr-ωhf:tax:pa_current-rating-a-dchf:tax:pa_turnshf:tax:pa_wire-size-awghf:tax:pa_wire-typehf:tax:pa_series
Broadband Conical Surface Mount Inductor
C100SMNL4947G6SMT1.541.70.144947Gold Plated Coppersmt1-541-70-144947gold-plated-copperc100smnl
Broadband Conical Surface Mount Inductor
C100SMNL3944G6SMT10.740.2413944Gold Plated Coppersmt10-740-2413944gold-plated-copperc100smnl
Broadband Conical Surface Mount Inductor
C100SMNL3142G6SMT0.580.470.3023142Gold Plated Coppersmt0-580-470-3023142gold-plated-copperc100smnl
Broadband Conical Surface Mount Inductor
C100SMNL2540G6SMT0.440.210.4522540Gold Plated Coppersmt0-440-210-4522540gold-plated-copperc100smnl
Broadband Conical Surface Mount Inductor
C100SMNL1938G6SMT0.20.10.6551938Gold Plated Coppersmt0-20-10-6551938gold-plated-copperc100smnl

Notes

  1. Current Rating is based on a 35°C temperature rise at an ambient
    temperature of 90°C
  2. All non-tolerance and electrical data are reference only and based
    on nominal data
  3. MSL Rating: 1
  4. Terminal is elongated to allow for soldering close to the tip of the coil
  5. Recommended that component is epoxied to substrate before
    reflow soldering
  6. Materials are fungus-inert to meet method 508 of MIL-STD-810H
  7. Meets a TML (Total Mass Loss) requirement of 1.0% maximum
    when tested in accordance with ASTM E595; this calculation does
    not include WVR (Water Vapor Recovered)

Termination:

Gold (Au) over Copper

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
