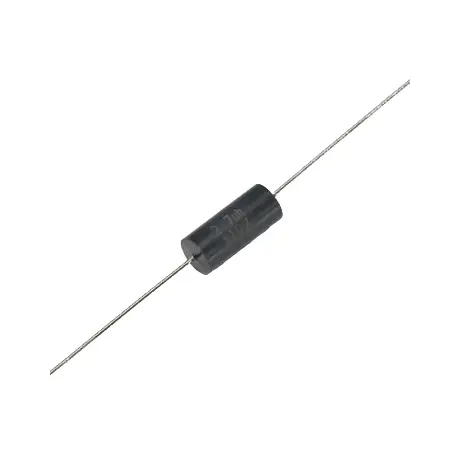

18M SERIES

Wide Inductance Range: Various values for diverse applications.
High Frequency Capability: Stable inductance and low DC resistance.
Robust Molded Construction: Ensures mechanical and environmental protection.
COTS Availability: Standard Commercial Off-The-Shelf components.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
18M330MLF	THT	333	2.75	2	22	±20%	RoHS	tht	333	2-75	2	22	%c2%b120	rohs	18m
18M272M	THT	27	2.75	0.205	22	±20%	Pb	tht	27	2-75	0-205	22	%c2%b120	pb	18m
18M272MLF	THT	27	2.75	0.205	22	±20%	RoHS	tht	27	2-75	0-205	22	%c2%b120	rohs	18m
18M272K	THT	27	2.75	0.205	22	±10%	Pb	tht	27	2-75	0-205	22	%c2%b110	pb	18m
18M272KLF	THT	27	2.75	0.205	22	±10%	RoHS	tht	27	2-75	0-205	22	%c2%b110	rohs	18m
18M272J	THT	27	2.75	0.205	22	±5%	Pb	tht	27	2-75	0-205	22	%c2%b15	pb	18m
18M272JLF	THT	27	2.75	0.205	22	±5%	RoHS	tht	27	2-75	0-205	22	%c2%b15	rohs	18m
18M272GLF	THT	27	2.75	0.205	22	±2%	RoHS	tht	27	2-75	0-205	22	%c2%b12	rohs	18m
18M272G	THT	27	2.75	0.205	22	±2%	Pb	tht	27	2-75	0-205	22	%c2%b12	pb	18m
18M222MLF	THT	22	2.2	0.24	24	±20%	RoHS	tht	22	2-2	0-24	24	%c2%b120	rohs	18m
18M222KLF	THT	22	2.2	0.24	24	±10%	RoHS	tht	22	2-2	0-24	24	%c2%b110	rohs	18m
18M222M	THT	22	2.2	0.24	24	±20%	Pb	tht	22	2-2	0-24	24	%c2%b120	pb	18m
18M222JLF	THT	22	2.2	0.24	24	±5%	RoHS	tht	22	2-2	0-24	24	%c2%b15	rohs	18m
18M222K	THT	22	2.2	0.24	24	±10%	Pb	tht	22	2-2	0-24	24	%c2%b110	pb	18m
18M222J	THT	22	2.2	0.24	24	±5%	Pb	tht	22	2-2	0-24	24	%c2%b15	pb	18m
18M222G	THT	22	2.2	0.24	24	±2%	Pb	tht	22	2-2	0-24	24	%c2%b12	pb	18m
18M222GLF	THT	22	2.2	0.24	24	±2%	RoHS	tht	22	2-2	0-24	24	%c2%b12	rohs	18m
18M182MLF	THT	18	1.95	0.255	30	±20%	RoHS	tht	18	1-95	0-255	30	%c2%b120	rohs	18m
18M182M	THT	18	1.95	0.255	30	±20%	Pb	tht	18	1-95	0-255	30	%c2%b120	pb	18m
18M182KLF	THT	18	1.95	0.255	30	±10%	RoHS	tht	18	1-95	0-255	30	%c2%b110	rohs	18m
18M182K	THT	18	1.95	0.255	30	±10%	Pb	tht	18	1-95	0-255	30	%c2%b110	pb	18m
18M182J	THT	18	1.95	0.255	30	±5%	Pb	tht	18	1-95	0-255	30	%c2%b15	pb	18m
18M182JLF	THT	18	1.95	0.255	30	±5%	RoHS	tht	18	1-95	0-255	30	%c2%b15	rohs	18m
18M182G	THT	18	1.95	0.255	30	±2%	Pb	tht	18	1-95	0-255	30	%c2%b12	pb	18m
18M182GLF	THT	18	1.95	0.255	30	±2%	RoHS	tht	18	1-95	0-255	30	%c2%b12	rohs	18m
18M152MLF	THT	15	1.2	0.31	30	±20%	RoHS	tht	15	1-2	0-31	30	%c2%b120	rohs	18m
18M152M	THT	15	1.2	0.31	30	±20%	Pb	tht	15	1-2	0-31	30	%c2%b120	pb	18m
18M152K	THT	15	1.2	0.31	30	±10%	Pb	tht	15	1-2	0-31	30	%c2%b110	pb	18m
18M152KLF	THT	15	1.2	0.31	30	±10%	RoHS	tht	15	1-2	0-31	30	%c2%b110	rohs	18m
18M152J	THT	15	1.2	0.31	30	±5%	Pb	tht	15	1-2	0-31	30	%c2%b15	pb	18m
18M152JLF	THT	15	1.2	0.31	30	±5%	RoHS	tht	15	1-2	0-31	30	%c2%b15	rohs	18m
18M152GLF	THT	15	1.2	0.31	30	±2%	RoHS	tht	15	1-2	0-31	30	%c2%b12	rohs	18m
18M152G	THT	15	1.2	0.31	30	±2%	Pb	tht	15	1-2	0-31	30	%c2%b12	pb	18m
18M122M	THT	12	1.05	0.37	36	±20%	Pb	tht	12	1-05	0-37	36	%c2%b120	pb	18m
18M122MLF	THT	12	1.05	0.37	36	±20%	RoHS	tht	12	1-05	0-37	36	%c2%b120	rohs	18m
18M122K	THT	12	1.05	0.37	36	±10%	Pb	tht	12	1-05	0-37	36	%c2%b110	pb	18m
18M122KLF	THT	12	1.05	0.37	36	±10%	RoHS	tht	12	1-05	0-37	36	%c2%b110	rohs	18m
18M122JLF	THT	12	1.05	0.37	36	±5%	RoHS	tht	12	1-05	0-37	36	%c2%b15	rohs	18m
18M122GLF	THT	12	1.05	0.37	36	±2%	RoHS	tht	12	1-05	0-37	36	%c2%b12	rohs	18m
18M122J	THT	12	1.05	0.37	36	±5%	Pb	tht	12	1-05	0-37	36	%c2%b15	pb	18m
18M122G	THT	12	1.05	0.37	36	±2%	Pb	tht	12	1-05	0-37	36	%c2%b12	pb	18m
18M102M	THT	10	0.605	0.44	42	±20%	Pb	tht	10	0-605	0-44	42	%c2%b120	pb	18m
18M102MLF	THT	10	0.605	0.44	42	±20%	RoHS	tht	10	0-605	0-44	42	%c2%b120	rohs	18m
18M102K	THT	10	0.605	0.44	42	±10%	Pb	tht	10	0-605	0-44	42	%c2%b110	pb	18m
18M102KLF	THT	10	0.605	0.44	42	±10%	RoHS	tht	10	0-605	0-44	42	%c2%b110	rohs	18m
18M102JLF	THT	10	0.605	0.44	42	±5%	RoHS	tht	10	0-605	0-44	42	%c2%b15	rohs	18m
18M102J	THT	10	0.605	0.44	42	±5%	Pb	tht	10	0-605	0-44	42	%c2%b15	pb	18m
18M102GLF	THT	10	0.605	0.44	42	±2%	RoHS	tht	10	0-605	0-44	42	%c2%b12	rohs	18m
18M102G	THT	10	0.605	0.44	42	±2%	Pb	tht	10	0-605	0-44	42	%c2%b12	pb	18m
18M821MLF	THT	8.2	0.44	0.54	48	±20%	RoHS	tht	8-2	0-44	0-54	48	%c2%b120	rohs	18m
18M821KLF	THT	8.2	0.44	0.54	48	±10%	RoHS	tht	8-2	0-44	0-54	48	%c2%b110	rohs	18m
18M821M	THT	8.2	0.44	0.54	48	±20%	Pb	tht	8-2	0-44	0-54	48	%c2%b120	pb	18m
18M821JLF	THT	8.2	0.44	0.54	48	±5%	RoHS	tht	8-2	0-44	0-54	48	%c2%b15	rohs	18m
18M821K	THT	8.2	0.44	0.54	48	±10%	Pb	tht	8-2	0-44	0-54	48	%c2%b110	pb	18m
18M821J	THT	8.2	0.44	0.54	48	±5%	Pb	tht	8-2	0-44	0-54	48	%c2%b15	pb	18m
18M821G	THT	8.2	0.44	0.54	48	±2%	Pb	tht	8-2	0-44	0-54	48	%c2%b12	pb	18m
18M821GLF	THT	8.2	0.44	0.54	48	±2%	RoHS	tht	8-2	0-44	0-54	48	%c2%b12	rohs	18m
18M681MLF	THT	6.8	0.375	0.56	50	±20%	RoHS	tht	6-8	0-375	0-56	50	%c2%b120	rohs	18m
18M681KLF	THT	6.8	0.375	0.56	50	±10%	RoHS	tht	6-8	0-375	0-56	50	%c2%b110	rohs	18m
18M681M	THT	6.8	0.375	0.56	50	±20%	Pb	tht	6-8	0-375	0-56	50	%c2%b120	pb	18m
18M681JLF	THT	6.8	0.375	0.56	50	±5%	RoHS	tht	6-8	0-375	0-56	50	%c2%b15	rohs	18m
18M681K	THT	6.8	0.375	0.56	50	±10%	Pb	tht	6-8	0-375	0-56	50	%c2%b110	pb	18m
18M681J	THT	6.8	0.375	0.56	50	±5%	Pb	tht	6-8	0-375	0-56	50	%c2%b15	pb	18m
18M681G	THT	6.8	0.375	0.56	50	±2%	Pb	tht	6-8	0-375	0-56	50	%c2%b12	pb	18m
18M681GLF	THT	6.8	0.375	0.56	50	±2%	RoHS	tht	6-8	0-375	0-56	50	%c2%b12	rohs	18m
18M561MLF	THT	5.6	0.28	0.645	50	±20%	RoHS	tht	5-6	0-28	0-645	50	%c2%b120	rohs	18m
18M561M	THT	5.6	0.28	0.645	50	±20%	Pb	tht	5-6	0-28	0-645	50	%c2%b120	pb	18m
18M561K	THT	5.6	0.28	0.645	50	±10%	Pb	tht	5-6	0-28	0-645	50	%c2%b110	pb	18m
18M561KLF	THT	5.6	0.28	0.645	50	±10%	RoHS	tht	5-6	0-28	0-645	50	%c2%b110	rohs	18m
18M561J	THT	5.6	0.28	0.645	50	±5%	Pb	tht	5-6	0-28	0-645	50	%c2%b15	pb	18m
18M561JLF	THT	5.6	0.28	0.645	50	±5%	RoHS	tht	5-6	0-28	0-645	50	%c2%b15	rohs	18m
18M561GLF	THT	5.6	0.28	0.645	50	±2%	RoHS	tht	5-6	0-28	0-645	50	%c2%b12	rohs	18m
18M561G	THT	5.6	0.28	0.645	50	±2%	Pb	tht	5-6	0-28	0-645	50	%c2%b12	pb	18m
18M471MLF	THT	4.7	0.21	0.745	60	±20%	RoHS	tht	4-7	0-21	0-745	60	%c2%b120	rohs	18m
18M471KLF	THT	4.7	0.21	0.745	60	±10%	RoHS	tht	4-7	0-21	0-745	60	%c2%b110	rohs	18m
18M471M	THT	4.7	0.21	0.745	60	±20%	Pb	tht	4-7	0-21	0-745	60	%c2%b120	pb	18m
18M471JLF	THT	4.7	0.21	0.745	60	±5%	RoHS	tht	4-7	0-21	0-745	60	%c2%b15	rohs	18m
18M471K	THT	4.7	0.21	0.745	60	±10%	Pb	tht	4-7	0-21	0-745	60	%c2%b110	pb	18m
18M471J	THT	4.7	0.21	0.745	60	±5%	Pb	tht	4-7	0-21	0-745	60	%c2%b15	pb	18m
18M471G	THT	4.7	0.21	0.745	60	±2%	Pb	tht	4-7	0-21	0-745	60	%c2%b12	pb	18m
18M471GLF	THT	4.7	0.21	0.745	60	±2%	RoHS	tht	4-7	0-21	0-745	60	%c2%b12	rohs	18m
18M391M	THT	3.9	0.155	0.87	65	±20%	Pb	tht	3-9	0-155	0-87	65	%c2%b120	pb	18m
18M391MLF	THT	3.9	0.155	0.87	65	±20%	RoHS	tht	3-9	0-155	0-87	65	%c2%b120	rohs	18m
18M391KLF	THT	3.9	0.155	0.87	65	±10%	RoHS	tht	3-9	0-155	0-87	65	%c2%b110	rohs	18m
18M391JLF	THT	3.9	0.155	0.87	65	±5%	RoHS	tht	3-9	0-155	0-87	65	%c2%b15	rohs	18m
18M391K	THT	3.9	0.155	0.87	65	±10%	Pb	tht	3-9	0-155	0-87	65	%c2%b110	pb	18m
18M391J	THT	3.9	0.155	0.87	65	±5%	Pb	tht	3-9	0-155	0-87	65	%c2%b15	pb	18m
18M391GLF	THT	3.9	0.155	0.87	65	±2%	RoHS	tht	3-9	0-155	0-87	65	%c2%b12	rohs	18m
18M391G	THT	3.9	0.155	0.87	65	±2%	Pb	tht	3-9	0-155	0-87	65	%c2%b12	pb	18m
18M331M	THT	3.3	0.14	0.99	70	±20%	Pb	tht	3-3	0-14	0-99	70	%c2%b120	pb	18m
18M331MLF	THT	3.3	0.14	0.99	70	±20%	RoHS	tht	3-3	0-14	0-99	70	%c2%b120	rohs	18m
18M331KLF	THT	3.3	0.14	0.99	70	±10%	RoHS	tht	3-3	0-14	0-99	70	%c2%b110	rohs	18m
18M331JLF	THT	3.3	0.14	0.99	70	±5%	RoHS	tht	3-3	0-14	0-99	70	%c2%b15	rohs	18m
18M331K	THT	3.3	0.14	0.99	70	±10%	Pb	tht	3-3	0-14	0-99	70	%c2%b110	pb	18m
18M331GLF	THT	3.3	0.14	0.99	70	±2%	RoHS	tht	3-3	0-14	0-99	70	%c2%b12	rohs	18m
18M331J	THT	3.3	0.14	0.99	70	±5%	Pb	tht	3-3	0-14	0-99	70	%c2%b15	pb	18m
18M331G	THT	3.3	0.14	0.99	70	±2%	Pb	tht	3-3	0-14	0-99	70	%c2%b12	pb	18m
18M271MLF	THT	2.7	1.2	0.46	120	±20%	RoHS	tht	2-7	1-2	0-46	120	%c2%b120	rohs	18m
18M271KLF	THT	2.7	1.2	0.46	120	±10%	RoHS	tht	2-7	1-2	0-46	120	%c2%b110	rohs	18m
18M271M	THT	2.7	1.2	0.46	120	±20%	Pb	tht	2-7	1-2	0-46	120	%c2%b120	pb	18m
18M271K	THT	2.7	1.2	0.46	120	±10%	Pb	tht	2-7	1-2	0-46	120	%c2%b110	pb	18m
18M271J	THT	2.7	1.2	0.46	120	±5%	Pb	tht	2-7	1-2	0-46	120	%c2%b15	pb	18m
18M271JLF	THT	2.7	1.2	0.46	120	±5%	RoHS	tht	2-7	1-2	0-46	120	%c2%b15	rohs	18m
18M271GLF	THT	2.7	1.2	0.46	120	±2%	RoHS	tht	2-7	1-2	0-46	120	%c2%b12	rohs	18m
18M271G	THT	2.7	1.2	0.46	120	±2%	Pb	tht	2-7	1-2	0-46	120	%c2%b12	pb	18m
18M221M	THT	2.2	0.97	0.505	140	±20%	Pb	tht	2-2	0-97	0-505	140	%c2%b120	pb	18m
18M221MLF	THT	2.2	0.97	0.505	140	±20%	RoHS	tht	2-2	0-97	0-505	140	%c2%b120	rohs	18m
18M221K	THT	2.2	0.97	0.505	140	±10%	Pb	tht	2-2	0-97	0-505	140	%c2%b110	pb	18m
18M221KLF	THT	2.2	0.97	0.505	140	±10%	RoHS	tht	2-2	0-97	0-505	140	%c2%b110	rohs	18m
18M221JLF	THT	2.2	0.97	0.505	140	±5%	RoHS	tht	2-2	0-97	0-505	140	%c2%b15	rohs	18m
18M221GLF	THT	2.2	0.97	0.505	140	±2%	RoHS	tht	2-2	0-97	0-505	140	%c2%b12	rohs	18m
18M221J	THT	2.2	0.97	0.505	140	±5%	Pb	tht	2-2	0-97	0-505	140	%c2%b15	pb	18m
18M221G	THT	2.2	0.97	0.505	140	±2%	Pb	tht	2-2	0-97	0-505	140	%c2%b12	pb	18m
18M181M	THT	1.8	0.74	0.58	150	±20%	Pb	tht	1-8	0-74	0-58	150	%c2%b120	pb	18m
18M181MLF	THT	1.8	0.74	0.58	150	±20%	RoHS	tht	1-8	0-74	0-58	150	%c2%b120	rohs	18m
18M181K	THT	1.8	0.74	0.58	150	±10%	Pb	tht	1-8	0-74	0-58	150	%c2%b110	pb	18m
18M181KLF	THT	1.8	0.74	0.58	150	±10%	RoHS	tht	1-8	0-74	0-58	150	%c2%b110	rohs	18m
18M181JLF	THT	1.8	0.74	0.58	150	±5%	RoHS	tht	1-8	0-74	0-58	150	%c2%b15	rohs	18m
18M181GLF	THT	1.8	0.74	0.58	150	±2%	RoHS	tht	1-8	0-74	0-58	150	%c2%b12	rohs	18m
18M181J	THT	1.8	0.74	0.58	150	±5%	Pb	tht	1-8	0-74	0-58	150	%c2%b15	pb	18m
18M181G	THT	1.8	0.74	0.58	150	±2%	Pb	tht	1-8	0-74	0-58	150	%c2%b12	pb	18m
18M151MLF	THT	1.5	0.48	0.7	170	±20%	RoHS	tht	1-5	0-48	0-7	170	%c2%b120	rohs	18m
18M151KLF	THT	1.5	0.48	0.7	170	±10%	RoHS	tht	1-5	0-48	0-7	170	%c2%b110	rohs	18m
18M151M	THT	1.5	0.48	0.7	170	±20%	Pb	tht	1-5	0-48	0-7	170	%c2%b120	pb	18m
18M151JLF	THT	1.5	0.48	0.7	170	±5%	RoHS	tht	1-5	0-48	0-7	170	%c2%b15	rohs	18m
18M151K	THT	1.5	0.48	0.7	170	±10%	Pb	tht	1-5	0-48	0-7	170	%c2%b110	pb	18m
18M151J	THT	1.5	0.48	0.7	170	±5%	Pb	tht	1-5	0-48	0-7	170	%c2%b15	pb	18m
18M151G	THT	1.5	0.48	0.7	170	±2%	Pb	tht	1-5	0-48	0-7	170	%c2%b12	pb	18m
18M151GLF	THT	1.5	0.48	0.7	170	±2%	RoHS	tht	1-5	0-48	0-7	170	%c2%b12	rohs	18m
18M121MLF	THT	1.2	0.4	0.785	180	±20%	RoHS	tht	1-2	0-4	0-785	180	%c2%b120	rohs	18m
18M121KLF	THT	1.2	0.4	0.785	180	±10%	RoHS	tht	1-2	0-4	0-785	180	%c2%b110	rohs	18m
18M121M	THT	1.2	0.4	0.785	180	±20%	Pb	tht	1-2	0-4	0-785	180	%c2%b120	pb	18m
18M121K	THT	1.2	0.4	0.785	180	±10%	Pb	tht	1-2	0-4	0-785	180	%c2%b110	pb	18m
18M121J	THT	1.2	0.4	0.785	180	±5%	Pb	tht	1-2	0-4	0-785	180	%c2%b15	pb	18m
18M121JLF	THT	1.2	0.4	0.785	180	±5%	RoHS	tht	1-2	0-4	0-785	180	%c2%b15	rohs	18m
18M121G	THT	1.2	0.4	0.785	180	±2%	Pb	tht	1-2	0-4	0-785	180	%c2%b12	pb	18m
18M121GLF	THT	1.2	0.4	0.785	180	±2%	RoHS	tht	1-2	0-4	0-785	180	%c2%b12	rohs	18m
18M101M	THT	1	0.29	0.93	200	±20%	Pb	tht	1	0-29	0-93	200	%c2%b120	pb	18m
18M101MLF	THT	1	0.29	0.93	200	±20%	RoHS	tht	1	0-29	0-93	200	%c2%b120	rohs	18m
18M101K	THT	1	0.29	0.93	200	±10%	Pb	tht	1	0-29	0-93	200	%c2%b110	pb	18m
18M101KLF	THT	1	0.29	0.93	200	±10%	RoHS	tht	1	0-29	0-93	200	%c2%b110	rohs	18m
18M101J	THT	1	0.29	0.93	200	±5%	Pb	tht	1	0-29	0-93	200	%c2%b15	pb	18m
18M101JLF	THT	1	0.29	0.93	200	±5%	RoHS	tht	1	0-29	0-93	200	%c2%b15	rohs	18m
18M101GLF	THT	1	0.29	0.93	200	±2%	RoHS	tht	1	0-29	0-93	200	%c2%b12	rohs	18m
18M101G	THT	1	0.29	0.93	200	±2%	Pb	tht	1	0-29	0-93	200	%c2%b12	pb	18m
18M820MLF	THT	0.82	0.205	1.1	210	±20%	RoHS	tht	0-82	0-205	1-1	210	%c2%b120	rohs	18m
18M820M	THT	0.82	0.205	1.1	210	±20%	Pb	tht	0-82	0-205	1-1	210	%c2%b120	pb	18m
18M820K	THT	0.82	0.205	1.1	210	±10%	Pb	tht	0-82	0-205	1-1	210	%c2%b110	pb	18m
18M820KLF	THT	0.82	0.205	1.1	210	±10%	RoHS	tht	0-82	0-205	1-1	210	%c2%b110	rohs	18m
18M820JLF	THT	0.82	0.205	1.1	210	±5%	RoHS	tht	0-82	0-205	1-1	210	%c2%b15	rohs	18m
18M820J	THT	0.82	0.205	1.1	210	±5%	Pb	tht	0-82	0-205	1-1	210	%c2%b15	pb	18m
18M820GLF	THT	0.82	0.205	1.1	210	±2%	RoHS	tht	0-82	0-205	1-1	210	%c2%b12	rohs	18m
18M820G	THT	0.82	0.205	1.1	210	±2%	Pb	tht	0-82	0-205	1-1	210	%c2%b12	pb	18m
18M680MLF	THT	0.68	0.15	1.3	250	±20%	RoHS	tht	0-68	0-15	1-3	250	%c2%b120	rohs	18m
18M680KLF	THT	0.68	0.15	1.3	250	±10%	RoHS	tht	0-68	0-15	1-3	250	%c2%b110	rohs	18m
18M680M	THT	0.68	0.15	1.3	250	±20%	Pb	tht	0-68	0-15	1-3	250	%c2%b120	pb	18m
18M680JLF	THT	0.68	0.15	1.3	250	±5%	RoHS	tht	0-68	0-15	1-3	250	%c2%b15	rohs	18m
18M680K	THT	0.68	0.15	1.3	250	±10%	Pb	tht	0-68	0-15	1-3	250	%c2%b110	pb	18m
18M680GLF	THT	0.68	0.15	1.3	250	±2%	RoHS	tht	0-68	0-15	1-3	250	%c2%b12	rohs	18m
18M680J	THT	0.68	0.15	1.3	250	±5%	Pb	tht	0-68	0-15	1-3	250	%c2%b15	pb	18m
18M680G	THT	0.68	0.15	1.3	250	±2%	Pb	tht	0-68	0-15	1-3	250	%c2%b12	pb	18m
18M560MLF	THT	0.56	0.125	1.45	270	±20%	RoHS	tht	0-56	0-125	1-45	270	%c2%b120	rohs	18m
18M560M	THT	0.56	0.125	1.45	270	±20%	Pb	tht	0-56	0-125	1-45	270	%c2%b120	pb	18m
18M560K	THT	0.56	0.125	1.45	270	±10%	Pb	tht	0-56	0-125	1-45	270	%c2%b110	pb	18m
18M560KLF	THT	0.56	0.125	1.45	270	±10%	RoHS	tht	0-56	0-125	1-45	270	%c2%b110	rohs	18m
18M560J	THT	0.56	0.125	1.45	270	±5%	Pb	tht	0-56	0-125	1-45	270	%c2%b15	pb	18m
18M560JLF	THT	0.56	0.125	1.45	270	±5%	RoHS	tht	0-56	0-125	1-45	270	%c2%b15	rohs	18m
18M560GLF	THT	0.56	0.125	1.45	270	±2%	RoHS	tht	0-56	0-125	1-45	270	%c2%b12	rohs	18m
18M560G	THT	0.56	0.125	1.45	270	±2%	Pb	tht	0-56	0-125	1-45	270	%c2%b12	pb	18m
18M470MLF	THT	0.47	0.085	1.7	300	±20%	RoHS	tht	0-47	0-085	1-7	300	%c2%b120	rohs	18m
18M470KLF	THT	0.47	0.085	1.7	300	±10%	RoHS	tht	0-47	0-085	1-7	300	%c2%b110	rohs	18m
18M470M	THT	0.47	0.085	1.7	300	±20%	Pb	tht	0-47	0-085	1-7	300	%c2%b120	pb	18m
18M470JLF	THT	0.47	0.085	1.7	300	±5%	RoHS	tht	0-47	0-085	1-7	300	%c2%b15	rohs	18m
18M470K	THT	0.47	0.085	1.7	300	±10%	Pb	tht	0-47	0-085	1-7	300	%c2%b110	pb	18m
18M470J	THT	0.47	0.085	1.7	300	±5%	Pb	tht	0-47	0-085	1-7	300	%c2%b15	pb	18m
18M470G	THT	0.47	0.085	1.7	300	±2%	Pb	tht	0-47	0-085	1-7	300	%c2%b12	pb	18m
18M470GLF	THT	0.47	0.085	1.7	300	±2%	RoHS	tht	0-47	0-085	1-7	300	%c2%b12	rohs	18m
18M330M	THT	0.33	0.065	2	350	±20%	Pb	tht	0-33	0-065	2	350	%c2%b120	pb	18m
18M330K	THT	0.33	0.065	2	350	±10%	Pb	tht	0-33	0-065	2	350	%c2%b110	pb	18m
18M330KLF	THT	0.33	0.065	2	350	±10%	RoHS	tht	0-33	0-065	2	350	%c2%b110	rohs	18m
18M330JLF	THT	0.33	0.065	2	350	±5%	RoHS	tht	0-33	0-065	2	350	%c2%b15	rohs	18m
18M330GLF	THT	0.33	0.065	2	350	±2%	RoHS	tht	0-33	0-065	2	350	%c2%b12	rohs	18m
18M330J	THT	0.33	0.065	2	350	±5%	Pb	tht	0-33	0-065	2	350	%c2%b15	pb	18m
18M330G	THT	0.33	0.065	2	350	±2%	Pb	tht	0-33	0-065	2	350	%c2%b12	pb	18m
18M220MLF	THT	0.22	0.035	2.8	415	±20%	RoHS	tht	0-22	0-035	2-8	415	%c2%b120	rohs	18m
18M220KLF	THT	0.22	0.035	2.8	415	±10%	RoHS	tht	0-22	0-035	2-8	415	%c2%b110	rohs	18m
18M220M	THT	0.22	0.035	2.8	415	±20%	Pb	tht	0-22	0-035	2-8	415	%c2%b120	pb	18m
18M220K	THT	0.22	0.035	2.8	415	±10%	Pb	tht	0-22	0-035	2-8	415	%c2%b110	pb	18m
18M220J	THT	0.22	0.035	2.8	415	±5%	Pb	tht	0-22	0-035	2-8	415	%c2%b15	pb	18m
18M220JLF	THT	0.22	0.035	2.8	415	±5%	RoHS	tht	0-22	0-035	2-8	415	%c2%b15	rohs	18m
18M220G	THT	0.22	0.035	2.8	415	±2%	Pb	tht	0-22	0-035	2-8	415	%c2%b12	pb	18m
18M220GLF	THT	0.22	0.035	2.8	415	±2%	RoHS	tht	0-22	0-035	2-8	415	%c2%b12	rohs	18m
18M150MLF	THT	0.15	0.03	3	510	±20%	RoHS	tht	0-15	0-03	3	510	%c2%b120	rohs	18m
18M150KLF	THT	0.15	0.03	3	510	±10%	RoHS	tht	0-15	0-03	3	510	%c2%b110	rohs	18m
18M150M	THT	0.15	0.03	3	510	±20%	Pb	tht	0-15	0-03	3	510	%c2%b120	pb	18m
18M150JLF	THT	0.15	0.03	3	510	±5%	RoHS	tht	0-15	0-03	3	510	%c2%b15	rohs	18m
18M150K	THT	0.15	0.03	3	510	±10%	Pb	tht	0-15	0-03	3	510	%c2%b110	pb	18m
18M150GLF	THT	0.15	0.03	3	510	±2%	RoHS	tht	0-15	0-03	3	510	%c2%b12	rohs	18m
18M150J	THT	0.15	0.03	3	510	±5%	Pb	tht	0-15	0-03	3	510	%c2%b15	pb	18m
18M150G	THT	0.15	0.03	3	510	±2%	Pb	tht	0-15	0-03	3	510	%c2%b12	pb	18m

Notes

Current Rating at a 90°C Ambient:
35°C rise for Phenolic
15°C rise for Powdered Iron
DWV 1000 Vrms at Sea Level
200 Vrms at 70,000 Feet
MSL Rating: 1
Materials are fungus-inert to meet method 508 of MIL-STD-810H
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Sn63Pb37 (Tin/Lead) for Pb components

Sn/Cu (Tin/Copper) for RoHS components

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C for Phenolic
-55°C to +105°C for Powdered Iron

Storage Temperature:

-55°C to +125°C

18M SERIES

PARAMETRIC SEARCH

Notes

Environmental

DownloadConical Brochure

Download
Conical Brochure
