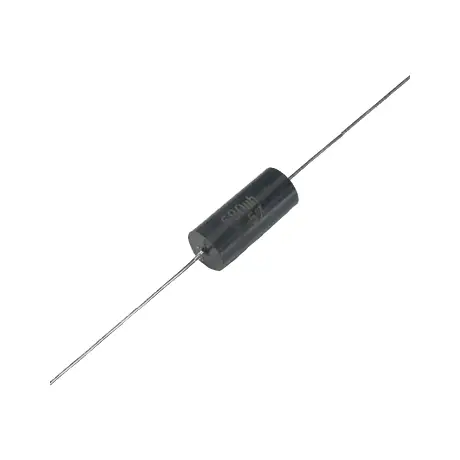

19F SERIES

Wide Inductance Range: Various values for diverse applications.
High Frequency Capability: Stable inductance and low DC resistance.
Robust Molded Construction: Ensures mechanical and environmental protection.
COTS Availability: Standard Commercial Off-The-Shelf components.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
19F104M	THT	1000	12.8	0.147	2.8	±20%	Pb	tht	1000	12-8	0-147	2-8	%c2%b120	pb	19f
19F104K	THT	1000	12.8	0.147	2.8	±10%	Pb	tht	1000	12-8	0-147	2-8	%c2%b110	pb	19f
19F104KLF	THT	1000	12.8	0.147	2.8	±10%	RoHS	tht	1000	12-8	0-147	2-8	%c2%b110	rohs	19f
19F104J	THT	1000	12.8	0.147	2.8	±5%	Pb	tht	1000	12-8	0-147	2-8	%c2%b15	pb	19f
19F104JLF	THT	1000	12.8	0.147	2.8	±5%	RoHS	tht	1000	12-8	0-147	2-8	%c2%b15	rohs	19f
19F104G	THT	1000	12.8	0.147	2.8	±2%	Pb	tht	1000	12-8	0-147	2-8	%c2%b12	pb	19f
19F104GLF	THT	1000	12.8	0.147	2.8	±2%	RoHS	tht	1000	12-8	0-147	2-8	%c2%b12	rohs	19f
19F913MLF	THT	910	12.4	0.15	2.9	±20%	RoHS	tht	910	12-4	0-15	2-9	%c2%b120	rohs	19f
19F913M	THT	910	12.4	0.15	2.9	±20%	Pb	tht	910	12-4	0-15	2-9	%c2%b120	pb	19f
19F913K	THT	910	12.4	0.15	2.9	±10%	Pb	tht	910	12-4	0-15	2-9	%c2%b110	pb	19f
19F913KLF	THT	910	12.4	0.15	2.9	±10%	RoHS	tht	910	12-4	0-15	2-9	%c2%b110	rohs	19f
19F913JLF	THT	910	12.4	0.15	2.9	±5%	RoHS	tht	910	12-4	0-15	2-9	%c2%b15	rohs	19f
19F913J	THT	910	12.4	0.15	2.9	±5%	Pb	tht	910	12-4	0-15	2-9	%c2%b15	pb	19f
19F913G	THT	910	12.4	0.15	2.9	±2%	Pb	tht	910	12-4	0-15	2-9	%c2%b12	pb	19f
19F913GLF	THT	910	12.4	0.15	2.9	±2%	RoHS	tht	910	12-4	0-15	2-9	%c2%b12	rohs	19f
19F823MLF	THT	820	11.8	0.153	3.1	±20%	RoHS	tht	820	11-8	0-153	3-1	%c2%b120	rohs	19f
19F823M	THT	820	11.8	0.153	3.1	±20%	Pb	tht	820	11-8	0-153	3-1	%c2%b120	pb	19f
19F823KLF	THT	820	11.8	0.153	3.1	±10%	RoHS	tht	820	11-8	0-153	3-1	%c2%b110	rohs	19f
19F823K	THT	820	11.8	0.153	3.1	±10%	Pb	tht	820	11-8	0-153	3-1	%c2%b110	pb	19f
19F823JLF	THT	820	11.8	0.153	3.1	±5%	RoHS	tht	820	11-8	0-153	3-1	%c2%b15	rohs	19f
19F823J	THT	820	11.8	0.153	3.1	±5%	Pb	tht	820	11-8	0-153	3-1	%c2%b15	pb	19f
19F823G	THT	820	11.8	0.153	3.1	±2%	Pb	tht	820	11-8	0-153	3-1	%c2%b12	pb	19f
19F823GLF	THT	820	11.8	0.153	3.1	±2%	RoHS	tht	820	11-8	0-153	3-1	%c2%b12	rohs	19f
19F753MLF	THT	750	11.2	0.158	3.3	±20%	RoHS	tht	750	11-2	0-158	3-3	%c2%b120	rohs	19f
19F753M	THT	750	11.2	0.158	3.3	±20%	Pb	tht	750	11-2	0-158	3-3	%c2%b120	pb	19f
19F753K	THT	750	11.2	0.158	3.3	±10%	Pb	tht	750	11-2	0-158	3-3	%c2%b110	pb	19f
19F753KLF	THT	750	11.2	0.158	3.3	±10%	RoHS	tht	750	11-2	0-158	3-3	%c2%b110	rohs	19f
19F753JLF	THT	750	11.2	0.158	3.3	±5%	RoHS	tht	750	11-2	0-158	3-3	%c2%b15	rohs	19f
19F753J	THT	750	11.2	0.158	3.3	±5%	Pb	tht	750	11-2	0-158	3-3	%c2%b15	pb	19f
19F753G	THT	750	11.2	0.158	3.3	±2%	Pb	tht	750	11-2	0-158	3-3	%c2%b12	pb	19f
19F753GLF	THT	750	11.2	0.158	3.3	±2%	RoHS	tht	750	11-2	0-158	3-3	%c2%b12	rohs	19f
19F683MLF	THT	680	10.3	0.164	3.4	±20%	RoHS	tht	680	10-3	0-164	3-4	%c2%b120	rohs	19f
19F683M	THT	680	10.3	0.164	3.4	±20%	Pb	tht	680	10-3	0-164	3-4	%c2%b120	pb	19f
19F683K	THT	680	10.3	0.164	3.4	±10%	Pb	tht	680	10-3	0-164	3-4	%c2%b110	pb	19f
19F683KLF	THT	680	10.3	0.164	3.4	±10%	RoHS	tht	680	10-3	0-164	3-4	%c2%b110	rohs	19f
19F683JLF	THT	680	10.3	0.164	3.4	±5%	RoHS	tht	680	10-3	0-164	3-4	%c2%b15	rohs	19f
19F683J	THT	680	10.3	0.164	3.4	±5%	Pb	tht	680	10-3	0-164	3-4	%c2%b15	pb	19f
19F683GLF	THT	680	10.3	0.164	3.4	±2%	RoHS	tht	680	10-3	0-164	3-4	%c2%b12	rohs	19f
19F683G	THT	680	10.3	0.164	3.4	±2%	Pb	tht	680	10-3	0-164	3-4	%c2%b12	pb	19f
19F623MLF	THT	620	10	0.167	3.5	±20%	RoHS	tht	620	10	0-167	3-5	%c2%b120	rohs	19f
19F623M	THT	620	10	0.167	3.5	±20%	Pb	tht	620	10	0-167	3-5	%c2%b120	pb	19f
19F623K	THT	620	10	0.167	3.5	±10%	Pb	tht	620	10	0-167	3-5	%c2%b110	pb	19f
19F623KLF	THT	620	10	0.167	3.5	±10%	RoHS	tht	620	10	0-167	3-5	%c2%b110	rohs	19f
19F623JLF	THT	620	10	0.167	3.5	±5%	RoHS	tht	620	10	0-167	3-5	%c2%b15	rohs	19f
19F623GLF	THT	620	10	0.167	3.5	±2%	RoHS	tht	620	10	0-167	3-5	%c2%b12	rohs	19f
19F623J	THT	620	10	0.167	3.5	±5%	Pb	tht	620	10	0-167	3-5	%c2%b15	pb	19f
19F623G	THT	620	10	0.167	3.5	±2%	Pb	tht	620	10	0-167	3-5	%c2%b12	pb	19f
19F563MLF	THT	560	9.4	0.172	3.6	±20%	RoHS	tht	560	9-4	0-172	3-6	%c2%b120	rohs	19f
19F563M	THT	560	9.4	0.172	3.6	±20%	Pb	tht	560	9-4	0-172	3-6	%c2%b120	pb	19f
19F563K	THT	560	9.4	0.172	3.6	±10%	Pb	tht	560	9-4	0-172	3-6	%c2%b110	pb	19f
19F563KLF	THT	560	9.4	0.172	3.6	±10%	RoHS	tht	560	9-4	0-172	3-6	%c2%b110	rohs	19f
19F563JLF	THT	560	9.4	0.172	3.6	±5%	RoHS	tht	560	9-4	0-172	3-6	%c2%b15	rohs	19f
19F563GLF	THT	560	9.4	0.172	3.6	±2%	RoHS	tht	560	9-4	0-172	3-6	%c2%b12	rohs	19f
19F563J	THT	560	9.4	0.172	3.6	±5%	Pb	tht	560	9-4	0-172	3-6	%c2%b15	pb	19f
19F563G	THT	560	9.4	0.172	3.6	±2%	Pb	tht	560	9-4	0-172	3-6	%c2%b12	pb	19f
19F513MLF	THT	510	8.7	0.179	3.8	±20%	RoHS	tht	510	8-7	0-179	3-8	%c2%b120	rohs	19f
19F513M	THT	510	8.7	0.179	3.8	±20%	Pb	tht	510	8-7	0-179	3-8	%c2%b120	pb	19f
19F513KLF	THT	510	8.7	0.179	3.8	±10%	RoHS	tht	510	8-7	0-179	3-8	%c2%b110	rohs	19f
19F513K	THT	510	8.7	0.179	3.8	±10%	Pb	tht	510	8-7	0-179	3-8	%c2%b110	pb	19f
19F513J	THT	510	8.7	0.179	3.8	±5%	Pb	tht	510	8-7	0-179	3-8	%c2%b15	pb	19f
19F513JLF	THT	510	8.7	0.179	3.8	±5%	RoHS	tht	510	8-7	0-179	3-8	%c2%b15	rohs	19f
19F513GLF	THT	510	8.7	0.179	3.8	±2%	RoHS	tht	510	8-7	0-179	3-8	%c2%b12	rohs	19f
19F513G	THT	510	8.7	0.179	3.8	±2%	Pb	tht	510	8-7	0-179	3-8	%c2%b12	pb	19f
19F503MLF	THT	500	8.6	0.18	3.7	±20%	RoHS	tht	500	8-6	0-18	3-7	%c2%b120	rohs	19f
19F503M	THT	500	8.6	0.18	3.7	±20%	Pb	tht	500	8-6	0-18	3-7	%c2%b120	pb	19f
19F503KLF	THT	500	8.6	0.18	3.7	±10%	RoHS	tht	500	8-6	0-18	3-7	%c2%b110	rohs	19f
19F503JLF	THT	500	8.6	0.18	3.7	±5%	RoHS	tht	500	8-6	0-18	3-7	%c2%b15	rohs	19f
19F503K	THT	500	8.6	0.18	3.7	±10%	Pb	tht	500	8-6	0-18	3-7	%c2%b110	pb	19f
19F503J	THT	500	8.6	0.18	3.7	±5%	Pb	tht	500	8-6	0-18	3-7	%c2%b15	pb	19f
19F503G	THT	500	8.6	0.18	3.7	±2%	Pb	tht	500	8-6	0-18	3-7	%c2%b12	pb	19f
19F503GLF	THT	500	8.6	0.18	3.7	±2%	RoHS	tht	500	8-6	0-18	3-7	%c2%b12	rohs	19f
19F473MLF	THT	470	8.3	0.183	4	±20%	RoHS	tht	470	8-3	0-183	4	%c2%b120	rohs	19f
19F473M	THT	470	8.3	0.183	4	±20%	Pb	tht	470	8-3	0-183	4	%c2%b120	pb	19f
19F473KLF	THT	470	8.3	0.183	4	±10%	RoHS	tht	470	8-3	0-183	4	%c2%b110	rohs	19f
19F473JLF	THT	470	8.3	0.183	4	±5%	RoHS	tht	470	8-3	0-183	4	%c2%b15	rohs	19f
19F473K	THT	470	8.3	0.183	4	±10%	Pb	tht	470	8-3	0-183	4	%c2%b110	pb	19f
19F473J	THT	470	8.3	0.183	4	±5%	Pb	tht	470	8-3	0-183	4	%c2%b15	pb	19f
19F473GLF	THT	470	8.3	0.183	4	±2%	RoHS	tht	470	8-3	0-183	4	%c2%b12	rohs	19f
19F473G	THT	470	8.3	0.183	4	±2%	Pb	tht	470	8-3	0-183	4	%c2%b12	pb	19f
19F433MLF	THT	430	8.1	0.185	4.3	±20%	RoHS	tht	430	8-1	0-185	4-3	%c2%b120	rohs	19f
19F433M	THT	430	8.1	0.185	4.3	±20%	Pb	tht	430	8-1	0-185	4-3	%c2%b120	pb	19f
19F433K	THT	430	8.1	0.185	4.3	±10%	Pb	tht	430	8-1	0-185	4-3	%c2%b110	pb	19f
19F433KLF	THT	430	8.1	0.185	4.3	±10%	RoHS	tht	430	8-1	0-185	4-3	%c2%b110	rohs	19f
19F433JLF	THT	430	8.1	0.185	4.3	±5%	RoHS	tht	430	8-1	0-185	4-3	%c2%b15	rohs	19f
19F433J	THT	430	8.1	0.185	4.3	±5%	Pb	tht	430	8-1	0-185	4-3	%c2%b15	pb	19f
19F433G	THT	430	8.1	0.185	4.3	±2%	Pb	tht	430	8-1	0-185	4-3	%c2%b12	pb	19f
19F433GLF	THT	430	8.1	0.185	4.3	±2%	RoHS	tht	430	8-1	0-185	4-3	%c2%b12	rohs	19f
19F393MLF	THT	390	7.8	0.189	4.5	±20%	RoHS	tht	390	7-8	0-189	4-5	%c2%b120	rohs	19f
19F393KLF	THT	390	7.8	0.189	4.5	±10%	RoHS	tht	390	7-8	0-189	4-5	%c2%b110	rohs	19f
19F393M	THT	390	7.8	0.189	4.5	±20%	Pb	tht	390	7-8	0-189	4-5	%c2%b120	pb	19f
19F393K	THT	390	7.8	0.189	4.5	±10%	Pb	tht	390	7-8	0-189	4-5	%c2%b110	pb	19f
19F393J	THT	390	7.8	0.189	4.5	±5%	Pb	tht	390	7-8	0-189	4-5	%c2%b15	pb	19f
19F393JLF	THT	390	7.8	0.189	4.5	±5%	RoHS	tht	390	7-8	0-189	4-5	%c2%b15	rohs	19f
19F393GLF	THT	390	7.8	0.189	4.5	±2%	RoHS	tht	390	7-8	0-189	4-5	%c2%b12	rohs	19f
19F393G	THT	390	7.8	0.189	4.5	±2%	Pb	tht	390	7-8	0-189	4-5	%c2%b12	pb	19f
19F363MLF	THT	360	7.2	0.196	4.7	±20%	RoHS	tht	360	7-2	0-196	4-7	%c2%b120	rohs	19f
19F363M	THT	360	7.2	0.196	4.7	±20%	Pb	tht	360	7-2	0-196	4-7	%c2%b120	pb	19f
19F363K	THT	360	7.2	0.196	4.7	±10%	Pb	tht	360	7-2	0-196	4-7	%c2%b110	pb	19f
19F363KLF	THT	360	7.2	0.196	4.7	±10%	RoHS	tht	360	7-2	0-196	4-7	%c2%b110	rohs	19f
19F363JLF	THT	360	7.2	0.196	4.7	±5%	RoHS	tht	360	7-2	0-196	4-7	%c2%b15	rohs	19f
19F363GLF	THT	360	7.2	0.196	4.7	±2%	RoHS	tht	360	7-2	0-196	4-7	%c2%b12	rohs	19f
19F363J	THT	360	7.2	0.196	4.7	±5%	Pb	tht	360	7-2	0-196	4-7	%c2%b15	pb	19f
19F363G	THT	360	7.2	0.196	4.7	±2%	Pb	tht	360	7-2	0-196	4-7	%c2%b12	pb	19f
19F333M	THT	330	6.9	0.201	5	±20%	Pb	tht	330	6-9	0-201	5	%c2%b120	pb	19f
19F333MLF	THT	330	6.9	0.201	5	±20%	RoHS	tht	330	6-9	0-201	5	%c2%b120	rohs	19f
19F333KLF	THT	330	6.9	0.201	5	±10%	RoHS	tht	330	6-9	0-201	5	%c2%b110	rohs	19f
19F333JLF	THT	330	6.9	0.201	5	±5%	RoHS	tht	330	6-9	0-201	5	%c2%b15	rohs	19f
19F333K	THT	330	6.9	0.201	5	±10%	Pb	tht	330	6-9	0-201	5	%c2%b110	pb	19f
19F333GLF	THT	330	6.9	0.201	5	±2%	RoHS	tht	330	6-9	0-201	5	%c2%b12	rohs	19f
19F333J	THT	330	6.9	0.201	5	±5%	Pb	tht	330	6-9	0-201	5	%c2%b15	pb	19f
19F333G	THT	330	6.9	0.201	5	±2%	Pb	tht	330	6-9	0-201	5	%c2%b12	pb	19f
19F303M	THT	300	6.6	0.205	5.3	±20%	Pb	tht	300	6-6	0-205	5-3	%c2%b120	pb	19f
19F303MLF	THT	300	6.6	0.205	5.3	±20%	RoHS	tht	300	6-6	0-205	5-3	%c2%b120	rohs	19f
19F303KLF	THT	300	6.6	0.205	5.3	±10%	RoHS	tht	300	6-6	0-205	5-3	%c2%b110	rohs	19f
19F303K	THT	300	6.6	0.205	5.3	±10%	Pb	tht	300	6-6	0-205	5-3	%c2%b110	pb	19f
19F303JLF	THT	300	6.6	0.205	5.3	±5%	RoHS	tht	300	6-6	0-205	5-3	%c2%b15	rohs	19f
19F303J	THT	300	6.6	0.205	5.3	±5%	Pb	tht	300	6-6	0-205	5-3	%c2%b15	pb	19f
19F303G	THT	300	6.6	0.205	5.3	±2%	Pb	tht	300	6-6	0-205	5-3	%c2%b12	pb	19f
19F303GLF	THT	300	6.6	0.205	5.3	±2%	RoHS	tht	300	6-6	0-205	5-3	%c2%b12	rohs	19f
19F273MLF	THT	270	6.2	0.212	5.6	±20%	RoHS	tht	270	6-2	0-212	5-6	%c2%b120	rohs	19f
19F273KLF	THT	270	6.2	0.212	5.6	±10%	RoHS	tht	270	6-2	0-212	5-6	%c2%b110	rohs	19f
19F273M	THT	270	6.2	0.212	5.6	±20%	Pb	tht	270	6-2	0-212	5-6	%c2%b120	pb	19f
19F273JLF	THT	270	6.2	0.212	5.6	±5%	RoHS	tht	270	6-2	0-212	5-6	%c2%b15	rohs	19f
19F273K	THT	270	6.2	0.212	5.6	±10%	Pb	tht	270	6-2	0-212	5-6	%c2%b110	pb	19f
19F273GLF	THT	270	6.2	0.212	5.6	±2%	RoHS	tht	270	6-2	0-212	5-6	%c2%b12	rohs	19f
19F273J	THT	270	6.2	0.212	5.6	±5%	Pb	tht	270	6-2	0-212	5-6	%c2%b15	pb	19f
19F273G	THT	270	6.2	0.212	5.6	±2%	Pb	tht	270	6-2	0-212	5-6	%c2%b12	pb	19f
19F104MLF	THT	100	6.2	0.147	5.6	±20%	RoHS	tht	100	6-2	0-147	5-6	%c2%b120	rohs	19f

Notes

Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
DWV 1000 Vrms at Sea Level
200 Vrms at 70,000 Feet
MSL Rating: 1
Especially designed for applications where high inductance with low DC resistance is required.
Epoxy encapsulated for environmental protection and superior strength.
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Sn63Pb37 (Tin/Lead) for Pb components

Sn/Cu (Tin/Copper) for RoHS components

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
