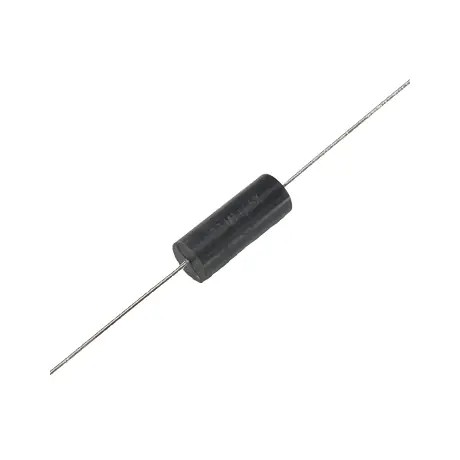

22M SERIES

Wide Inductance Range: Various values for diverse applications.
High Frequency Capability: Stable inductance and low DC resistance.
Robust Molded Construction: Ensures mechanical and environmental protection.
COTS Availability: Standard Commercial Off-The-Shelf components.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
22M364MLF	THT	3600	40	0.057	1.5	±20%	RoHS	tht	3600	40	0-057	1-5	%c2%b120	rohs	22m
22M364KLF	THT	3600	40	0.057	1.5	±10%	RoHS	tht	3600	40	0-057	1-5	%c2%b110	rohs	22m
22M364M	THT	3600	40	0.057	1.5	±20%	Pb	tht	3600	40	0-057	1-5	%c2%b120	pb	22m
22M364K	THT	3600	40	0.057	1.5	±10%	Pb	tht	3600	40	0-057	1-5	%c2%b110	pb	22m
22M364JLF	THT	3600	40	0.057	1.5	±5%	RoHS	tht	3600	40	0-057	1-5	%c2%b15	rohs	22m
22M364GLF	THT	3600	40	0.057	1.5	±2%	RoHS	tht	3600	40	0-057	1-5	%c2%b12	rohs	22m
22M364J	THT	3600	40	0.057	1.5	±5%	Pb	tht	3600	40	0-057	1-5	%c2%b15	pb	22m
22M364G	THT	3600	40	0.057	1.5	±2%	Pb	tht	3600	40	0-057	1-5	%c2%b12	pb	22m
22M334M	THT	3300	38	0.058	1.6	±20%	Pb	tht	3300	38	0-058	1-6	%c2%b120	pb	22m
22M334MLF	THT	3300	38	0.058	1.6	±20%	RoHS	tht	3300	38	0-058	1-6	%c2%b120	rohs	22m
22M334KLF	THT	3300	38	0.058	1.6	±10%	RoHS	tht	3300	38	0-058	1-6	%c2%b110	rohs	22m
22M334JLF	THT	3300	38	0.058	1.6	±5%	RoHS	tht	3300	38	0-058	1-6	%c2%b15	rohs	22m
22M334K	THT	3300	38	0.058	1.6	±10%	Pb	tht	3300	38	0-058	1-6	%c2%b110	pb	22m
22M334J	THT	3300	38	0.058	1.6	±5%	Pb	tht	3300	38	0-058	1-6	%c2%b15	pb	22m
22M334G	THT	3300	38	0.058	1.6	±2%	Pb	tht	3300	38	0-058	1-6	%c2%b12	pb	22m
22M334GLF	THT	3300	38	0.058	1.6	±2%	RoHS	tht	3300	38	0-058	1-6	%c2%b12	rohs	22m
22M304MLF	THT	3000	35	0.061	1.7	±20%	RoHS	tht	3000	35	0-061	1-7	%c2%b120	rohs	22m
22M304KLF	THT	3000	35	0.061	1.7	±10%	RoHS	tht	3000	35	0-061	1-7	%c2%b110	rohs	22m
22M304M	THT	3000	35	0.061	1.7	±20%	Pb	tht	3000	35	0-061	1-7	%c2%b120	pb	22m
22M304K	THT	3000	35	0.061	1.7	±10%	Pb	tht	3000	35	0-061	1-7	%c2%b110	pb	22m
22M304J	THT	3000	35	0.061	1.7	±5%	Pb	tht	3000	35	0-061	1-7	%c2%b15	pb	22m
22M304JLF	THT	3000	35	0.061	1.7	±5%	RoHS	tht	3000	35	0-061	1-7	%c2%b15	rohs	22m
22M304GLF	THT	3000	35	0.061	1.7	±2%	RoHS	tht	3000	35	0-061	1-7	%c2%b12	rohs	22m
22M304G	THT	3000	35	0.061	1.7	±2%	Pb	tht	3000	35	0-061	1-7	%c2%b12	pb	22m
22M274MLF	THT	2700	33	0.062	1.8	±20%	RoHS	tht	2700	33	0-062	1-8	%c2%b120	rohs	22m
22M274KLF	THT	2700	33	0.062	1.8	±10%	RoHS	tht	2700	33	0-062	1-8	%c2%b110	rohs	22m
22M274M	THT	2700	33	0.062	1.8	±20%	Pb	tht	2700	33	0-062	1-8	%c2%b120	pb	22m
22M274K	THT	2700	33	0.062	1.8	±10%	Pb	tht	2700	33	0-062	1-8	%c2%b110	pb	22m
22M274J	THT	2700	33	0.062	1.8	±5%	Pb	tht	2700	33	0-062	1-8	%c2%b15	pb	22m
22M274JLF	THT	2700	33	0.062	1.8	±5%	RoHS	tht	2700	33	0-062	1-8	%c2%b15	rohs	22m
22M274GLF	THT	2700	33	0.062	1.8	±2%	RoHS	tht	2700	33	0-062	1-8	%c2%b12	rohs	22m
22M274G	THT	2700	33	0.062	1.8	±2%	Pb	tht	2700	33	0-062	1-8	%c2%b12	pb	22m
22M244MLF	THT	2400	31	0.064	1.9	±20%	RoHS	tht	2400	31	0-064	1-9	%c2%b120	rohs	22m
22M244M	THT	2400	31	0.064	1.9	±20%	Pb	tht	2400	31	0-064	1-9	%c2%b120	pb	22m
22M244KLF	THT	2400	31	0.064	1.9	±10%	RoHS	tht	2400	31	0-064	1-9	%c2%b110	rohs	22m
22M244JLF	THT	2400	31	0.064	1.9	±5%	RoHS	tht	2400	31	0-064	1-9	%c2%b15	rohs	22m
22M244K	THT	2400	31	0.064	1.9	±10%	Pb	tht	2400	31	0-064	1-9	%c2%b110	pb	22m
22M244J	THT	2400	31	0.064	1.9	±5%	Pb	tht	2400	31	0-064	1-9	%c2%b15	pb	22m
22M244G	THT	2400	31	0.064	1.9	±2%	Pb	tht	2400	31	0-064	1-9	%c2%b12	pb	22m
22M244GLF	THT	2400	31	0.064	1.9	±2%	RoHS	tht	2400	31	0-064	1-9	%c2%b12	rohs	22m
22M224M	THT	2200	30	0.066	2	±20%	Pb	tht	2200	30	0-066	2	%c2%b120	pb	22m
22M224MLF	THT	2200	30	0.066	2	±20%	RoHS	tht	2200	30	0-066	2	%c2%b120	rohs	22m
22M224KLF	THT	2200	30	0.066	2	±10%	RoHS	tht	2200	30	0-066	2	%c2%b110	rohs	22m
22M224JLF	THT	2200	30	0.066	2	±5%	RoHS	tht	2200	30	0-066	2	%c2%b15	rohs	22m
22M224K	THT	2200	30	0.066	2	±10%	Pb	tht	2200	30	0-066	2	%c2%b110	pb	22m
22M224J	THT	2200	30	0.066	2	±5%	Pb	tht	2200	30	0-066	2	%c2%b15	pb	22m
22M224G	THT	2200	30	0.066	2	±2%	Pb	tht	2200	30	0-066	2	%c2%b12	pb	22m
22M224GLF	THT	2200	30	0.066	2	±2%	RoHS	tht	2200	30	0-066	2	%c2%b12	rohs	22m
22M204MLF	THT	2000	29	0.067	2.1	±20%	RoHS	tht	2000	29	0-067	2-1	%c2%b120	rohs	22m
22M204KLF	THT	2000	29	0.067	2.1	±10%	RoHS	tht	2000	29	0-067	2-1	%c2%b110	rohs	22m
22M204M	THT	2000	29	0.067	2.1	±20%	Pb	tht	2000	29	0-067	2-1	%c2%b120	pb	22m
22M204JLF	THT	2000	29	0.067	2.1	±5%	RoHS	tht	2000	29	0-067	2-1	%c2%b15	rohs	22m
22M204K	THT	2000	29	0.067	2.1	±10%	Pb	tht	2000	29	0-067	2-1	%c2%b110	pb	22m
22M204J	THT	2000	29	0.067	2.1	±5%	Pb	tht	2000	29	0-067	2-1	%c2%b15	pb	22m
22M204G	THT	2000	29	0.067	2.1	±2%	Pb	tht	2000	29	0-067	2-1	%c2%b12	pb	22m
22M204GLF	THT	2000	29	0.067	2.1	±2%	RoHS	tht	2000	29	0-067	2-1	%c2%b12	rohs	22m
22M184MLF	THT	1800	28	0.068	2.2	±20%	RoHS	tht	1800	28	0-068	2-2	%c2%b120	rohs	22m
22M184KLF	THT	1800	28	0.068	2.2	±10%	RoHS	tht	1800	28	0-068	2-2	%c2%b110	rohs	22m
22M184M	THT	1800	28	0.068	2.2	±20%	Pb	tht	1800	28	0-068	2-2	%c2%b120	pb	22m
22M184K	THT	1800	28	0.068	2.2	±10%	Pb	tht	1800	28	0-068	2-2	%c2%b110	pb	22m
22M184J	THT	1800	28	0.068	2.2	±5%	Pb	tht	1800	28	0-068	2-2	%c2%b15	pb	22m
22M184JLF	THT	1800	28	0.068	2.2	±5%	RoHS	tht	1800	28	0-068	2-2	%c2%b15	rohs	22m
22M184GLF	THT	1800	28	0.068	2.2	±2%	RoHS	tht	1800	28	0-068	2-2	%c2%b12	rohs	22m
22M184G	THT	1800	28	0.068	2.2	±2%	Pb	tht	1800	28	0-068	2-2	%c2%b12	pb	22m
22M164M	THT	1600	26	0.07	2.3	±20%	Pb	tht	1600	26	0-07	2-3	%c2%b120	pb	22m
22M164MLF	THT	1600	26	0.07	2.3	±20%	RoHS	tht	1600	26	0-07	2-3	%c2%b120	rohs	22m
22M164KLF	THT	1600	26	0.07	2.3	±10%	RoHS	tht	1600	26	0-07	2-3	%c2%b110	rohs	22m
22M164JLF	THT	1600	26	0.07	2.3	±5%	RoHS	tht	1600	26	0-07	2-3	%c2%b15	rohs	22m
22M164K	THT	1600	26	0.07	2.3	±10%	Pb	tht	1600	26	0-07	2-3	%c2%b110	pb	22m
22M164J	THT	1600	26	0.07	2.3	±5%	Pb	tht	1600	26	0-07	2-3	%c2%b15	pb	22m
22M164G	THT	1600	26	0.07	2.3	±2%	Pb	tht	1600	26	0-07	2-3	%c2%b12	pb	22m
22M164GLF	THT	1600	26	0.07	2.3	±2%	RoHS	tht	1600	26	0-07	2-3	%c2%b12	rohs	22m
22M154M	THT	1500	25	0.072	2.4	±20%	Pb	tht	1500	25	0-072	2-4	%c2%b120	pb	22m
22M154MLF	THT	1500	25	0.072	2.4	±20%	RoHS	tht	1500	25	0-072	2-4	%c2%b120	rohs	22m
22M154KLF	THT	1500	25	0.072	2.4	±10%	RoHS	tht	1500	25	0-072	2-4	%c2%b110	rohs	22m
22M154JLF	THT	1500	25	0.072	2.4	±5%	RoHS	tht	1500	25	0-072	2-4	%c2%b15	rohs	22m
22M154K	THT	1500	25	0.072	2.4	±10%	Pb	tht	1500	25	0-072	2-4	%c2%b110	pb	22m
22M154J	THT	1500	25	0.072	2.4	±5%	Pb	tht	1500	25	0-072	2-4	%c2%b15	pb	22m
22M154G	THT	1500	25	0.072	2.4	±2%	Pb	tht	1500	25	0-072	2-4	%c2%b12	pb	22m
22M154GLF	THT	1500	25	0.072	2.4	±2%	RoHS	tht	1500	25	0-072	2-4	%c2%b12	rohs	22m
22M134M	THT	1300	23	0.075	2.6	±20%	Pb	tht	1300	23	0-075	2-6	%c2%b120	pb	22m
22M134MLF	THT	1300	23	0.075	2.6	±20%	RoHS	tht	1300	23	0-075	2-6	%c2%b120	rohs	22m
22M134KLF	THT	1300	23	0.075	2.6	±10%	RoHS	tht	1300	23	0-075	2-6	%c2%b110	rohs	22m
22M134K	THT	1300	23	0.075	2.6	±10%	Pb	tht	1300	23	0-075	2-6	%c2%b110	pb	22m
22M134J	THT	1300	23	0.075	2.6	±5%	Pb	tht	1300	23	0-075	2-6	%c2%b15	pb	22m
22M134JLF	THT	1300	23	0.075	2.6	±5%	RoHS	tht	1300	23	0-075	2-6	%c2%b15	rohs	22m
22M134GLF	THT	1300	23	0.075	2.6	±2%	RoHS	tht	1300	23	0-075	2-6	%c2%b12	rohs	22m
22M134G	THT	1300	23	0.075	2.6	±2%	Pb	tht	1300	23	0-075	2-6	%c2%b12	pb	22m
22M124MLF	THT	1200	22	0.076	2.7	±20%	RoHS	tht	1200	22	0-076	2-7	%c2%b120	rohs	22m
22M124KLF	THT	1200	22	0.076	2.7	±10%	RoHS	tht	1200	22	0-076	2-7	%c2%b110	rohs	22m
22M124M	THT	1200	22	0.076	2.7	±20%	Pb	tht	1200	22	0-076	2-7	%c2%b120	pb	22m
22M124K	THT	1200	22	0.076	2.7	±10%	Pb	tht	1200	22	0-076	2-7	%c2%b110	pb	22m
22M124J	THT	1200	22	0.076	2.7	±5%	Pb	tht	1200	22	0-076	2-7	%c2%b15	pb	22m
22M124JLF	THT	1200	22	0.076	2.7	±5%	RoHS	tht	1200	22	0-076	2-7	%c2%b15	rohs	22m
22M124GLF	THT	1200	22	0.076	2.7	±2%	RoHS	tht	1200	22	0-076	2-7	%c2%b12	rohs	22m
22M124G	THT	1200	22	0.076	2.7	±2%	Pb	tht	1200	22	0-076	2-7	%c2%b12	pb	22m
22M114M	THT	1100	21	0.078	2.8	±20%	Pb	tht	1100	21	0-078	2-8	%c2%b120	pb	22m
22M114MLF	THT	1100	21	0.078	2.8	±20%	RoHS	tht	1100	21	0-078	2-8	%c2%b120	rohs	22m
22M114KLF	THT	1100	21	0.078	2.8	±10%	RoHS	tht	1100	21	0-078	2-8	%c2%b110	rohs	22m
22M114JLF	THT	1100	21	0.078	2.8	±5%	RoHS	tht	1100	21	0-078	2-8	%c2%b15	rohs	22m
22M114K	THT	1100	21	0.078	2.8	±10%	Pb	tht	1100	21	0-078	2-8	%c2%b110	pb	22m
22M114J	THT	1100	21	0.078	2.8	±5%	Pb	tht	1100	21	0-078	2-8	%c2%b15	pb	22m
22M114G	THT	1100	21	0.078	2.8	±2%	Pb	tht	1100	21	0-078	2-8	%c2%b12	pb	22m
22M114GLF	THT	1100	21	0.078	2.8	±2%	RoHS	tht	1100	21	0-078	2-8	%c2%b12	rohs	22m

Notes

Current Rating is based on a 15°C temperature rise at an ambient temperature of 90°C
DWV 700 Vrms at Sea Level
180 Vrms at 70,000 Feet
MSL Rating: 1
Materials are fungus-inert to meet method 508 of MIL-STD-810H
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Sn63Pb37 (Tin/Lead) for Pb components

Sn/Cu (Tin/Copper) for RoHS components

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +105°C

Storage Temperature:

-55°C to +125°C
