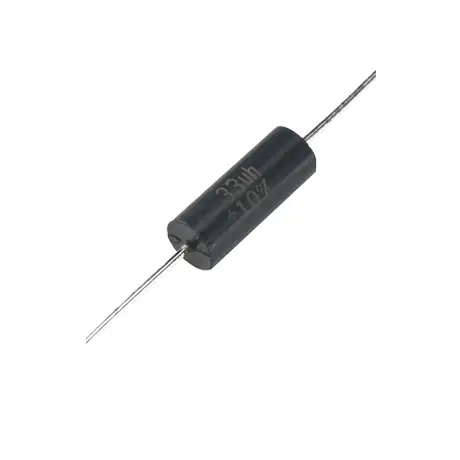

MLRF17S SERIES

Robust Construction: Designed with durable materials to withstand demanding environments.
Molded Design: The molded construction provides protection against environmental factors, enhancing durability.
Versatile Applications: Ideal for use in communication, guidance, and radar systems due to its robust performance.
Military Compliance: Meets MIL-PRF-15305 specifications for high reliability in mission-critical applications.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
MLRF17S104J	THT	1000	17.5	70	3.8	±5%	Pb	tht	1000	17-5	70	3-8	%c2%b15	pb	mlrf17s
MLRF17S104K	THT	1000	17.5	70	3.8	±10%	Pb	tht	1000	17-5	70	3-8	%c2%b110	pb	mlrf17s
MLRF17S823J	THT	820	13	80	4.2	±5%	Pb	tht	820	13	80	4-2	%c2%b15	pb	mlrf17s
MLRF17S823K	THT	820	13	80	4.2	±10%	Pb	tht	820	13	80	4-2	%c2%b110	pb	mlrf17s
MLRF17S683J	THT	680	11.8	80	4.5	±5%	Pb	tht	680	11-8	80	4-5	%c2%b15	pb	mlrf17s
MLRF17S683K	THT	680	11.8	80	4.5	±10%	Pb	tht	680	11-8	80	4-5	%c2%b110	pb	mlrf17s
MLRF17S563J	THT	560	10.5	90	4.7	±5%	Pb	tht	560	10-5	90	4-7	%c2%b15	pb	mlrf17s
MLRF17S563K	THT	560	10.5	90	4.7	±10%	Pb	tht	560	10-5	90	4-7	%c2%b110	pb	mlrf17s
MLRF17S473J	THT	470	9.5	92	5.7	±5%	Pb	tht	470	9-5	92	5-7	%c2%b15	pb	mlrf17s
MLRF17S473K	THT	470	9.5	92	5.7	±10%	Pb	tht	470	9-5	92	5-7	%c2%b110	pb	mlrf17s
MLRF17S393J	THT	390	7.4	105	6.2	±5%	Pb	tht	390	7-4	105	6-2	%c2%b15	pb	mlrf17s
MLRF17S393K	THT	390	7.4	105	6.2	±10%	Pb	tht	390	7-4	105	6-2	%c2%b110	pb	mlrf17s
MLRF17S333J	THT	330	6.4	110	6.5	±5%	Pb	tht	330	6-4	110	6-5	%c2%b15	pb	mlrf17s
MLRF17S333K	THT	330	6.4	110	6.5	±10%	Pb	tht	330	6-4	110	6-5	%c2%b110	pb	mlrf17s
MLRF17S273J	THT	270	5.8	115	7	±5%	Pb	tht	270	5-8	115	7	%c2%b15	pb	mlrf17s
MLRF17S273K	THT	270	5.8	115	7	±10%	Pb	tht	270	5-8	115	7	%c2%b110	pb	mlrf17s
MLRF17S223J	THT	220	5	125	7.5	±5%	Pb	tht	220	5	125	7-5	%c2%b15	pb	mlrf17s
MLRF17S223K	THT	220	5	125	7.5	±10%	Pb	tht	220	5	125	7-5	%c2%b110	pb	mlrf17s
MLRF17S183J	THT	180	4.4	135	8	±5%	Pb	tht	180	4-4	135	8	%c2%b15	pb	mlrf17s
MLRF17S183K	THT	180	4.4	135	8	±10%	Pb	tht	180	4-4	135	8	%c2%b110	pb	mlrf17s
MLRF17S153J	THT	150	4.1	140	8.5	±5%	Pb	tht	150	4-1	140	8-5	%c2%b15	pb	mlrf17s
MLRF17S153K	THT	150	4.1	140	8.5	±10%	Pb	tht	150	4-1	140	8-5	%c2%b110	pb	mlrf17s
MLRF17S123J	THT	120	3.6	150	9.7	±5%	Pb	tht	120	3-6	150	9-7	%c2%b15	pb	mlrf17s
MLRF17S123K	THT	120	3.6	150	9.7	±10%	Pb	tht	120	3-6	150	9-7	%c2%b110	pb	mlrf17s
MLRF17S103J	THT	100	3.12	160	10	±5%	Pb	tht	100	3-12	160	10	%c2%b15	pb	mlrf17s
MLRF17S103K	THT	100	3.12	160	10	±10%	Pb	tht	100	3-12	160	10	%c2%b110	pb	mlrf17s
MLRF17S822J	THT	82	2.7	170	10.5	±5%	Pb	tht	82	2-7	170	10-5	%c2%b15	pb	mlrf17s
MLRF17S822K	THT	82	2.7	170	10.5	±10%	Pb	tht	82	2-7	170	10-5	%c2%b110	pb	mlrf17s
MLRF17S682J	THT	68	2.44	180	21	±5%	Pb	tht	68	2-44	180	21	%c2%b15	pb	mlrf17s
MLRF17S682K	THT	68	2.44	180	21	±10%	Pb	tht	68	2-44	180	21	%c2%b110	pb	mlrf17s
MLRF17S562J	THT	56	2.23	190	25	±5%	Pb	tht	56	2-23	190	25	%c2%b15	pb	mlrf17s
MLRF17S562K	THT	56	2.23	190	25	±10%	Pb	tht	56	2-23	190	25	%c2%b110	pb	mlrf17s
MLRF17S472J	THT	47	2.11	195	27	±5%	Pb	tht	47	2-11	195	27	%c2%b15	pb	mlrf17s
MLRF17S472K	THT	47	2.11	195	27	±10%	Pb	tht	47	2-11	195	27	%c2%b110	pb	mlrf17s
MLRF17S392K	THT	39	1.93	205	29	±10%	Pb	tht	39	1-93	205	29	%c2%b110	pb	mlrf17s
MLRF17S392J	THT	39	1.93	205	29	±5%	Pb	tht	39	1-93	205	29	%c2%b15	pb	mlrf17s
MLRF17S332J	THT	33	1.37	240	34	±5%	Pb	tht	33	1-37	240	34	%c2%b15	pb	mlrf17s
MLRF17S332K	THT	33	1.37	240	34	±10%	Pb	tht	33	1-37	240	34	%c2%b110	pb	mlrf17s
MLRF17S272J	THT	27	1.19	260	38	±5%	Pb	tht	27	1-19	260	38	%c2%b15	pb	mlrf17s
MLRF17S272K	THT	27	1.19	260	38	±10%	Pb	tht	27	1-19	260	38	%c2%b110	pb	mlrf17s
MLRF17S222J	THT	22	0.96	290	41	±5%	Pb	tht	22	0-96	290	41	%c2%b15	pb	mlrf17s
MLRF17S222K	THT	22	0.96	290	41	±10%	Pb	tht	22	0-96	290	41	%c2%b110	pb	mlrf17s
MLRF17S182J	THT	18	0.89	300	45	±5%	Pb	tht	18	0-89	300	45	%c2%b15	pb	mlrf17s
MLRF17S182K	THT	18	0.89	300	45	±10%	Pb	tht	18	0-89	300	45	%c2%b110	pb	mlrf17s
MLRF17S152J	THT	15	0.8	315	49	±5%	Pb	tht	15	0-8	315	49	%c2%b15	pb	mlrf17s
MLRF17S152K	THT	15	0.8	315	49	±10%	Pb	tht	15	0-8	315	49	%c2%b110	pb	mlrf17s
MLRF17S122J	THT	12	2	200	44	±5%	Pb	tht	12	2	200	44	%c2%b15	pb	mlrf17s
MLRF17S122K	THT	12	2	200	44	±10%	Pb	tht	12	2	200	44	%c2%b110	pb	mlrf17s
MLRF17S102J	THT	10	1.62	220	46	±5%	Pb	tht	10	1-62	220	46	%c2%b15	pb	mlrf17s
MLRF17S102K	THT	10	1.62	220	46	±10%	Pb	tht	10	1-62	220	46	%c2%b110	pb	mlrf17s
MLRF17S821J	THT	8.2	1.32	250	50	±5%	Pb	tht	8-2	1-32	250	50	%c2%b15	pb	mlrf17s
MLRF17S821K	THT	8.2	1.32	250	50	±10%	Pb	tht	8-2	1-32	250	50	%c2%b110	pb	mlrf17s
MLRF17S681J	THT	6.8	1.02	280	55	±5%	Pb	tht	6-8	1-02	280	55	%c2%b15	pb	mlrf17s
MLRF17S681K	THT	6.8	1.02	280	55	±10%	Pb	tht	6-8	1-02	280	55	%c2%b110	pb	mlrf17s
MLRF17S561J	THT	5.6	0.72	335	65	±5%	Pb	tht	5-6	0-72	335	65	%c2%b15	pb	mlrf17s
MLRF17S561K	THT	5.6	0.72	335	65	±10%	Pb	tht	5-6	0-72	335	65	%c2%b110	pb	mlrf17s
MLRF17S471J	THT	4.7	0.55	380	70	±5%	Pb	tht	4-7	0-55	380	70	%c2%b15	pb	mlrf17s
MLRF17S471K	THT	4.7	0.55	380	70	±10%	Pb	tht	4-7	0-55	380	70	%c2%b110	pb	mlrf17s
MLRF17S391J	THT	3.9	0.4	450	75	±5%	Pb	tht	3-9	0-4	450	75	%c2%b15	pb	mlrf17s
MLRF17S391K	THT	3.9	0.4	450	75	±10%	Pb	tht	3-9	0-4	450	75	%c2%b110	pb	mlrf17s
MLRF17S331J	THT	3.3	0.35	480	85	±5%	Pb	tht	3-3	0-35	480	85	%c2%b15	pb	mlrf17s
MLRF17S331K	THT	3.3	0.35	480	85	±10%	Pb	tht	3-3	0-35	480	85	%c2%b110	pb	mlrf17s
MLRF17S271J	THT	2.7	0.28	535	92	±5%	Pb	tht	2-7	0-28	535	92	%c2%b15	pb	mlrf17s
MLRF17S271K	THT	2.7	0.28	535	92	±10%	Pb	tht	2-7	0-28	535	92	%c2%b110	pb	mlrf17s
MLRF17S221J	THT	2.2	0.19	650	100	±5%	Pb	tht	2-2	0-19	650	100	%c2%b15	pb	mlrf17s
MLRF17S221K	THT	2.2	0.19	650	100	±10%	Pb	tht	2-2	0-19	650	100	%c2%b110	pb	mlrf17s
MLRF17S181J	THT	1.8	0.14	775	105	±5%	Pb	tht	1-8	0-14	775	105	%c2%b15	pb	mlrf17s
MLRF17S181K	THT	1.8	0.14	775	105	±10%	Pb	tht	1-8	0-14	775	105	%c2%b110	pb	mlrf17s
MLRF17S151J	THT	1.5	0.12	815	115	±5%	Pb	tht	1-5	0-12	815	115	%c2%b15	pb	mlrf17s
MLRF17S151K	THT	1.5	0.12	815	115	±10%	Pb	tht	1-5	0-12	815	115	%c2%b110	pb	mlrf17s
MLRF17S121J	THT	1.2	0.1	895	130	±5%	Pb	tht	1-2	0-1	895	130	%c2%b15	pb	mlrf17s
MLRF17S121K	THT	1.2	0.1	895	130	±10%	Pb	tht	1-2	0-1	895	130	%c2%b110	pb	mlrf17s
MLRF17S101J	THT	1	0.07	1070	140	±5%	Pb	tht	1	0-07	1070	140	%c2%b15	pb	mlrf17s
MLRF17S101K	THT	1	0.07	1070	140	±10%	Pb	tht	1	0-07	1070	140	%c2%b110	pb	mlrf17s
MLRF17S820J	THT	0.82	0.59	1790	180	±5%	Pb	tht	0-82	0-59	1790	180	%c2%b15	pb	mlrf17s
MLRF17S820K	THT	0.82	0.59	1790	180	±10%	Pb	tht	0-82	0-59	1790	180	%c2%b110	pb	mlrf17s
MLRF17S680J	THT	0.68	0.45	1530	190	±5%	Pb	tht	0-68	0-45	1530	190	%c2%b15	pb	mlrf17s
MLRF17S680K	THT	0.68	0.45	1530	190	±10%	Pb	tht	0-68	0-45	1530	190	%c2%b110	pb	mlrf17s
MLRF17S560J	THT	0.56	0.33	1470	210	±5%	Pb	tht	0-56	0-33	1470	210	%c2%b15	pb	mlrf17s
MLRF17S560K	THT	0.56	0.33	1470	210	±10%	Pb	tht	0-56	0-33	1470	210	%c2%b110	pb	mlrf17s
MLRF17S470J	THT	0.47	0.25	1300	235	±5%	Pb	tht	0-47	0-25	1300	235	%c2%b15	pb	mlrf17s
MLRF17S470K	THT	0.47	0.25	1300	235	±10%	Pb	tht	0-47	0-25	1300	235	%c2%b110	pb	mlrf17s
MLRF17S390J	THT	0.39	0.18	1100	250	±5%	Pb	tht	0-39	0-18	1100	250	%c2%b15	pb	mlrf17s
MLRF17S390K	THT	0.39	0.18	1100	250	±10%	Pb	tht	0-39	0-18	1100	250	%c2%b110	pb	mlrf17s
MLRF17S330J	THT	0.33	0.13	855	250	±5%	Pb	tht	0-33	0-13	855	250	%c2%b15	pb	mlrf17s
MLRF17S330K	THT	0.33	0.13	855	250	±10%	Pb	tht	0-33	0-13	855	250	%c2%b110	pb	mlrf17s
MLRF17S270J	THT	0.27	0.11	780	250	±5%	Pb	tht	0-27	0-11	780	250	%c2%b15	pb	mlrf17s
MLRF17S270K	THT	0.27	0.11	780	250	±10%	Pb	tht	0-27	0-11	780	250	%c2%b110	pb	mlrf17s
MLRF17S220J	THT	0.22	0.067	670	250	±5%	Pb	tht	0-22	0-067	670	250	%c2%b15	pb	mlrf17s
MLRF17S220K	THT	0.22	0.067	670	250	±10%	Pb	tht	0-22	0-067	670	250	%c2%b110	pb	mlrf17s
MLRF17S180J	THT	0.18	0.047	565	250	±5%	Pb	tht	0-18	0-047	565	250	%c2%b15	pb	mlrf17s
MLRF17S180K	THT	0.18	0.047	565	250	±10%	Pb	tht	0-18	0-047	565	250	%c2%b110	pb	mlrf17s
MLRF17S150J	THT	0.15	0.037	490	250	±5%	Pb	tht	0-15	0-037	490	250	%c2%b15	pb	mlrf17s
MLRF17S150K	THT	0.15	0.037	490	250	±10%	Pb	tht	0-15	0-037	490	250	%c2%b110	pb	mlrf17s
MLRF17S120J	THT	0.12	0.034	420	250	±5%	Pb	tht	0-12	0-034	420	250	%c2%b15	pb	mlrf17s
MLRF17S120K	THT	0.12	0.034	420	250	±10%	Pb	tht	0-12	0-034	420	250	%c2%b110	pb	mlrf17s
MLRF17S100J	THT	0.1	0.025	370	250	±5%	Pb	tht	0-1	0-025	370	250	%c2%b15	pb	mlrf17s
MLRF17S100K	THT	0.1	0.025	370	250	±10%	Pb	tht	0-1	0-025	370	250	%c2%b110	pb	mlrf17s

Notes

Temperature Class:
Class A: 105°C
Current Rating is based on a 15°C temperature rise at an ambient temperature of 90°C
DWV 1000 Vrms at Sea Level
200 Vrms at 70,000 Feet
MSL Rating: 1
SRF Values are calculated and for reference only
Materials are fungus-inert to meet method 508 of MIL-STD-810H

Termination:

Sn63Pb37 (Tin/Lead)

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +105°C

Storage Temperature:

-55°C to +125°C
