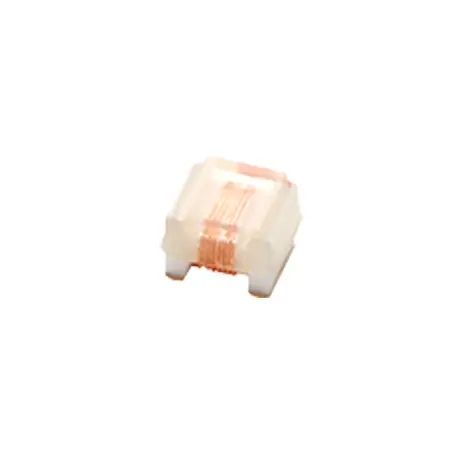

CC4H1008 SERIES

Compact Size: Designed in a compact package, facilitating integration into space-constrained applications.
Ceramic Core Construction: Utilizes a ceramic core for improved performance characteristics, including higher Q factors and self-resonant frequency (SRF).
Applications: Ideal for use in communication, radar, medical devices, and other high-frequency RF applications.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
CC4H1008-100M	SMT	100	0.21	1.1	1100	±20%	RoHS	smt	100	0-21	1-1	1100	%c2%b120	rohs	cc4h1008
CC4H1008-100K	SMT	100	0.21	1.1	1100	±10%	RoHS	smt	100	0-21	1-1	1100	%c2%b110	rohs	cc4h1008
CC4H1008-100J	SMT	100	0.21	1.1	1100	±5%	RoHS	smt	100	0-21	1-1	1100	%c2%b15	rohs	cc4h1008
CC4H1008-100G	SMT	100	0.21	1.1	1100	±2%	RoHS	smt	100	0-21	1-1	1100	%c2%b12	rohs	cc4h1008
CC4H1008-082M	SMT	82	0.2	1.12	1200	±20%	RoHS	smt	82	0-2	1-12	1200	%c2%b120	rohs	cc4h1008
CC4H1008-082K	SMT	82	0.2	1.12	1200	±10%	RoHS	smt	82	0-2	1-12	1200	%c2%b110	rohs	cc4h1008
CC4H1008-082J	SMT	82	0.2	1.12	1200	±5%	RoHS	smt	82	0-2	1-12	1200	%c2%b15	rohs	cc4h1008
CC4H1008-082G	SMT	82	0.2	1.12	1200	±2%	RoHS	smt	82	0-2	1-12	1200	%c2%b12	rohs	cc4h1008
CC4H1008-068M	SMT	68	0.18	1.19	1300	±20%	RoHS	smt	68	0-18	1-19	1300	%c2%b120	rohs	cc4h1008
CC4H1008-068K	SMT	68	0.18	1.19	1300	±10%	RoHS	smt	68	0-18	1-19	1300	%c2%b110	rohs	cc4h1008
CC4H1008-068J	SMT	68	0.18	1.19	1300	±5%	RoHS	smt	68	0-18	1-19	1300	%c2%b15	rohs	cc4h1008
CC4H1008-068G	SMT	68	0.18	1.19	1300	±2%	RoHS	smt	68	0-18	1-19	1300	%c2%b12	rohs	cc4h1008
CC4H1008-056M	SMT	56	0.16	1.26	1400	±20%	RoHS	smt	56	0-16	1-26	1400	%c2%b120	rohs	cc4h1008
CC4H1008-056K	SMT	56	0.16	1.26	1400	±10%	RoHS	smt	56	0-16	1-26	1400	%c2%b110	rohs	cc4h1008
CC4H1008-056J	SMT	56	0.16	1.26	1400	±5%	RoHS	smt	56	0-16	1-26	1400	%c2%b15	rohs	cc4h1008
CC4H1008-056G	SMT	56	0.16	1.26	1400	±2%	RoHS	smt	56	0-16	1-26	1400	%c2%b12	rohs	cc4h1008
CC4H1008-047M	SMT	47	0.14	1.34	1550	±20%	RoHS	smt	47	0-14	1-34	1550	%c2%b120	rohs	cc4h1008
CC4H1008-047K	SMT	47	0.14	1.34	1550	±10%	RoHS	smt	47	0-14	1-34	1550	%c2%b110	rohs	cc4h1008
CC4H1008-047J	SMT	47	0.14	1.34	1550	±5%	RoHS	smt	47	0-14	1-34	1550	%c2%b15	rohs	cc4h1008
CC4H1008-047G	SMT	47	0.14	1.34	1550	±2%	RoHS	smt	47	0-14	1-34	1550	%c2%b12	rohs	cc4h1008
CC4H1008-039M	SMT	39	0.14	1.34	1800	±20%	RoHS	smt	39	0-14	1-34	1800	%c2%b120	rohs	cc4h1008
CC4H1008-039K	SMT	39	0.14	1.34	1800	±10%	RoHS	smt	39	0-14	1-34	1800	%c2%b110	rohs	cc4h1008
CC4H1008-039J	SMT	39	0.14	1.34	1800	±5%	RoHS	smt	39	0-14	1-34	1800	%c2%b15	rohs	cc4h1008
CC4H1008-039G	SMT	39	0.14	1.34	1800	±2%	RoHS	smt	39	0-14	1-34	1800	%c2%b12	rohs	cc4h1008
CC4H1008-033M	SMT	33	0.13	1.46	2000	±20%	RoHS	smt	33	0-13	1-46	2000	%c2%b120	rohs	cc4h1008
CC4H1008-033K	SMT	33	0.13	1.46	2000	±10%	RoHS	smt	33	0-13	1-46	2000	%c2%b110	rohs	cc4h1008
CC4H1008-033J	SMT	33	0.13	1.46	2000	±5%	RoHS	smt	33	0-13	1-46	2000	%c2%b15	rohs	cc4h1008
CC4H1008-033G	SMT	33	0.13	1.46	2000	±2%	RoHS	smt	33	0-13	1-46	2000	%c2%b12	rohs	cc4h1008
CC4H1008-027M	SMT	27	0.12	1.52	2200	±20%	RoHS	smt	27	0-12	1-52	2200	%c2%b120	rohs	cc4h1008
CC4H1008-027K	SMT	27	0.12	1.52	2200	±10%	RoHS	smt	27	0-12	1-52	2200	%c2%b110	rohs	cc4h1008
CC4H1008-027J	SMT	27	0.12	1.52	2200	±5%	RoHS	smt	27	0-12	1-52	2200	%c2%b15	rohs	cc4h1008
CC4H1008-027G	SMT	27	0.12	1.52	2200	±2%	RoHS	smt	27	0-12	1-52	2200	%c2%b12	rohs	cc4h1008
CC4H1008-022M	SMT	22	0.11	1.6	2400	±20%	RoHS	smt	22	0-11	1-6	2400	%c2%b120	rohs	cc4h1008
CC4H1008-022K	SMT	22	0.11	1.6	2400	±10%	RoHS	smt	22	0-11	1-6	2400	%c2%b110	rohs	cc4h1008
CC4H1008-022J	SMT	22	0.11	1.6	2400	±5%	RoHS	smt	22	0-11	1-6	2400	%c2%b15	rohs	cc4h1008
CC4H1008-022G	SMT	22	0.11	1.6	2400	±2%	RoHS	smt	22	0-11	1-6	2400	%c2%b12	rohs	cc4h1008
CC4H1008-018M	SMT	18	0.11	1.6	2600	±20%	RoHS	smt	18	0-11	1-6	2600	%c2%b120	rohs	cc4h1008
CC4H1008-018K	SMT	18	0.11	1.6	2600	±10%	RoHS	smt	18	0-11	1-6	2600	%c2%b110	rohs	cc4h1008
CC4H1008-018J	SMT	18	0.11	1.6	2600	±5%	RoHS	smt	18	0-11	1-6	2600	%c2%b15	rohs	cc4h1008
CC4H1008-018G	SMT	18	0.11	1.6	2600	±2%	RoHS	smt	18	0-11	1-6	2600	%c2%b12	rohs	cc4h1008
CC4H1008-015M	SMT	15	0.1	1.74	2800	±20%	RoHS	smt	15	0-1	1-74	2800	%c2%b120	rohs	cc4h1008
CC4H1008-015K	SMT	15	0.1	1.74	2800	±10%	RoHS	smt	15	0-1	1-74	2800	%c2%b110	rohs	cc4h1008
CC4H1008-015J	SMT	15	0.1	1.74	2800	±5%	RoHS	smt	15	0-1	1-74	2800	%c2%b15	rohs	cc4h1008
CC4H1008-015G	SMT	15	0.1	1.74	2800	±2%	RoHS	smt	15	0-1	1-74	2800	%c2%b12	rohs	cc4h1008
CC4H1008-012M	SMT	12	0.1	1.74	3000	±20%	RoHS	smt	12	0-1	1-74	3000	%c2%b120	rohs	cc4h1008
CC4H1008-012K	SMT	12	0.1	1.74	3000	±10%	RoHS	smt	12	0-1	1-74	3000	%c2%b110	rohs	cc4h1008
CC4H1008-012J	SMT	12	0.1	1.74	3000	±5%	RoHS	smt	12	0-1	1-74	3000	%c2%b15	rohs	cc4h1008
CC4H1008-012G	SMT	12	0.1	1.74	3000	±2%	RoHS	smt	12	0-1	1-74	3000	%c2%b12	rohs	cc4h1008
CC4H1008-010M	SMT	10	0.09	1.84	3100	±20%	RoHS	smt	10	0-09	1-84	3100	%c2%b120	rohs	cc4h1008
CC4H1008-010K	SMT	10	0.09	1.84	3100	±10%	RoHS	smt	10	0-09	1-84	3100	%c2%b110	rohs	cc4h1008
CC4H1008-010J	SMT	10	0.09	1.84	3100	±5%	RoHS	smt	10	0-09	1-84	3100	%c2%b15	rohs	cc4h1008
CC4H1008-010G	SMT	10	0.09	1.84	3100	±2%	RoHS	smt	10	0-09	1-84	3100	%c2%b12	rohs	cc4h1008
CC4H1008-0082M	SMT	8.2	0.09	1.84	3200	±20%	RoHS	smt	8-2	0-09	1-84	3200	%c2%b120	rohs	cc4h1008
CC4H1008-0082K	SMT	8.2	0.09	1.84	3200	±10%	RoHS	smt	8-2	0-09	1-84	3200	%c2%b110	rohs	cc4h1008
CC4H1008-0082J	SMT	8.2	0.09	1.84	3200	±5%	RoHS	smt	8-2	0-09	1-84	3200	%c2%b15	rohs	cc4h1008
CC4H1008-0082G	SMT	8.2	0.09	1.84	3200	±2%	RoHS	smt	8-2	0-09	1-84	3200	%c2%b12	rohs	cc4h1008

Notes

Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
Suitable for reflow soldering
Flat top cover for pick-and-place
Excellent for high frequency applications
No internal solder connection increases reliability
Very tight distribution within lots
Extremely high SRF; Exceptional Q
High current handling capability
Low DC resistance
MSL Rating: 1
Materials are fungus-inert to meet method 508 of MIL-STD-810H
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Gold (Au)

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
