SMG3013 SERIES

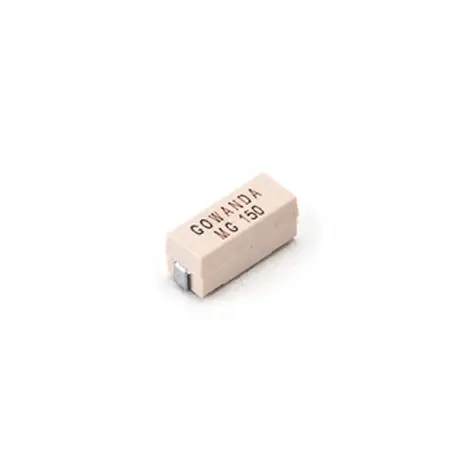

The Gowanda SMG3013 series of non-magnetic RF inductors features an inductance range from 0.01 to 4.7 µH, with minimum Q factors of 35 to 40, maximum DC resistance (DCR) from 0.08 to 2.6 ohms, and DC current ratings from 260 to 1422 mA. These surface-mount inductors, measuring 7.62 mm x 2.79 mm x 3.18 mm, are designed for magnetically sensitive applications such as medical diagnostic equipment, telecommunications, and electronic test equipment, and are available in RoHS-compliant versions.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
SMG3013-101MLF	SMT	1	1	0.45	230	±20%	RoHS	smt	1	1	0-45	230	%c2%b120	rohs	smg3013
SMG3013-101KLF	SMT	1	1	0.45	230	±10%	RoHS	smt	1	1	0-45	230	%c2%b110	rohs	smg3013
SMG3013-101M	SMT	1	1	0.45	230	±20%	Pb	smt	1	1	0-45	230	%c2%b120	pb	smg3013
SMG3013-101K	SMT	1	1	0.45	230	±10%	Pb	smt	1	1	0-45	230	%c2%b110	pb	smg3013
SMG3013-101JLF	SMT	1	1	0.45	230	±5%	RoHS	smt	1	1	0-45	230	%c2%b15	rohs	smg3013
SMG3013-101J	SMT	1	1	0.45	230	±5%	Pb	smt	1	1	0-45	230	%c2%b15	pb	smg3013
SMG3013-101GLF	SMT	1	1	0.45	230	±2%	RoHS	smt	1	1	0-45	230	%c2%b12	rohs	smg3013
SMG3013-101G	SMT	1	1	0.45	230	±2%	Pb	smt	1	1	0-45	230	%c2%b12	pb	smg3013
SMG3013-820M	SMT	0.82	0.85	0.488	250	±20%	Pb	smt	0-82	0-85	0-488	250	%c2%b120	pb	smg3013
SMG3013-820MLF	SMT	0.82	0.85	0.488	250	±20%	RoHS	smt	0-82	0-85	0-488	250	%c2%b120	rohs	smg3013
SMG3013-820KLF	SMT	0.82	0.85	0.488	250	±10%	RoHS	smt	0-82	0-85	0-488	250	%c2%b110	rohs	smg3013
SMG3013-820K	SMT	0.82	0.85	0.488	250	±10%	Pb	smt	0-82	0-85	0-488	250	%c2%b110	pb	smg3013
SMG3013-820JLF	SMT	0.82	0.85	0.488	250	±5%	RoHS	smt	0-82	0-85	0-488	250	%c2%b15	rohs	smg3013
SMG3013-820J	SMT	0.82	0.85	0.488	250	±5%	Pb	smt	0-82	0-85	0-488	250	%c2%b15	pb	smg3013
SMG3013-820G	SMT	0.82	0.85	0.488	250	±2%	Pb	smt	0-82	0-85	0-488	250	%c2%b12	pb	smg3013
SMG3013-820GLF	SMT	0.82	0.85	0.488	250	±2%	RoHS	smt	0-82	0-85	0-488	250	%c2%b12	rohs	smg3013
SMG3013-680MLF	SMT	0.68	0.6	0.58	275	±20%	RoHS	smt	0-68	0-6	0-58	275	%c2%b120	rohs	smg3013
SMG3013-680M	SMT	0.68	0.6	0.58	275	±20%	Pb	smt	0-68	0-6	0-58	275	%c2%b120	pb	smg3013
SMG3013-680KLF	SMT	0.68	0.6	0.58	275	±10%	RoHS	smt	0-68	0-6	0-58	275	%c2%b110	rohs	smg3013
SMG3013-680K	SMT	0.68	0.6	0.58	275	±10%	Pb	smt	0-68	0-6	0-58	275	%c2%b110	pb	smg3013
SMG3013-680JLF	SMT	0.68	0.6	0.58	275	±5%	RoHS	smt	0-68	0-6	0-58	275	%c2%b15	rohs	smg3013
SMG3013-680J	SMT	0.68	0.6	0.58	275	±5%	Pb	smt	0-68	0-6	0-58	275	%c2%b15	pb	smg3013
SMG3013-680G	SMT	0.68	0.6	0.58	275	±2%	Pb	smt	0-68	0-6	0-58	275	%c2%b12	pb	smg3013
SMG3013-680GLF	SMT	0.68	0.6	0.58	275	±2%	RoHS	smt	0-68	0-6	0-58	275	%c2%b12	rohs	smg3013
SMG3013-560MLF	SMT	0.56	0.5	0.636	300	±20%	RoHS	smt	0-56	0-5	0-636	300	%c2%b120	rohs	smg3013
SMG3013-560M	SMT	0.56	0.5	0.636	300	±20%	Pb	smt	0-56	0-5	0-636	300	%c2%b120	pb	smg3013
SMG3013-560KLF	SMT	0.56	0.5	0.636	300	±10%	RoHS	smt	0-56	0-5	0-636	300	%c2%b110	rohs	smg3013
SMG3013-560K	SMT	0.56	0.5	0.636	300	±10%	Pb	smt	0-56	0-5	0-636	300	%c2%b110	pb	smg3013
SMG3013-560J	SMT	0.56	0.5	0.636	300	±5%	Pb	smt	0-56	0-5	0-636	300	%c2%b15	pb	smg3013
SMG3013-560JLF	SMT	0.56	0.5	0.636	300	±5%	RoHS	smt	0-56	0-5	0-636	300	%c2%b15	rohs	smg3013
SMG3013-560GLF	SMT	0.56	0.5	0.636	300	±2%	RoHS	smt	0-56	0-5	0-636	300	%c2%b12	rohs	smg3013
SMG3013-560G	SMT	0.56	0.5	0.636	300	±2%	Pb	smt	0-56	0-5	0-636	300	%c2%b12	pb	smg3013
SMG3013-470MLF	SMT	0.47	0.35	0.76	330	±20%	RoHS	smt	0-47	0-35	0-76	330	%c2%b120	rohs	smg3013
SMG3013-470M	SMT	0.47	0.35	0.76	330	±20%	Pb	smt	0-47	0-35	0-76	330	%c2%b120	pb	smg3013
SMG3013-470KLF	SMT	0.47	0.35	0.76	330	±10%	RoHS	smt	0-47	0-35	0-76	330	%c2%b110	rohs	smg3013
SMG3013-470K	SMT	0.47	0.35	0.76	330	±10%	Pb	smt	0-47	0-35	0-76	330	%c2%b110	pb	smg3013
SMG3013-470JLF	SMT	0.47	0.35	0.76	330	±5%	RoHS	smt	0-47	0-35	0-76	330	%c2%b15	rohs	smg3013
SMG3013-470J	SMT	0.47	0.35	0.76	330	±5%	Pb	smt	0-47	0-35	0-76	330	%c2%b15	pb	smg3013
SMG3013-470G	SMT	0.47	0.35	0.76	330	±2%	Pb	smt	0-47	0-35	0-76	330	%c2%b12	pb	smg3013
SMG3013-470GLF	SMT	0.47	0.35	0.76	330	±2%	RoHS	smt	0-47	0-35	0-76	330	%c2%b12	rohs	smg3013
SMG3013-390MLF	SMT	0.39	0.33	0.821	365	±20%	RoHS	smt	0-39	0-33	0-821	365	%c2%b120	rohs	smg3013
SMG3013-390M	SMT	0.39	0.33	0.821	365	±20%	Pb	smt	0-39	0-33	0-821	365	%c2%b120	pb	smg3013
SMG3013-390KLF	SMT	0.39	0.33	0.821	365	±10%	RoHS	smt	0-39	0-33	0-821	365	%c2%b110	rohs	smg3013
SMG3013-390K	SMT	0.39	0.33	0.821	365	±10%	Pb	smt	0-39	0-33	0-821	365	%c2%b110	pb	smg3013
SMG3013-390J	SMT	0.39	0.33	0.821	365	±5%	Pb	smt	0-39	0-33	0-821	365	%c2%b15	pb	smg3013
SMG3013-390JLF	SMT	0.39	0.33	0.821	365	±5%	RoHS	smt	0-39	0-33	0-821	365	%c2%b15	rohs	smg3013
SMG3013-390GLF	SMT	0.39	0.33	0.821	365	±2%	RoHS	smt	0-39	0-33	0-821	365	%c2%b12	rohs	smg3013
SMG3013-390G	SMT	0.39	0.33	0.821	365	±2%	Pb	smt	0-39	0-33	0-821	365	%c2%b12	pb	smg3013
SMG3013-330MLF	SMT	0.33	0.22	0.959	410	±20%	RoHS	smt	0-33	0-22	0-959	410	%c2%b120	rohs	smg3013
SMG3013-330M	SMT	0.33	0.22	0.959	410	±20%	Pb	smt	0-33	0-22	0-959	410	%c2%b120	pb	smg3013
SMG3013-330KLF	SMT	0.33	0.22	0.959	410	±10%	RoHS	smt	0-33	0-22	0-959	410	%c2%b110	rohs	smg3013
SMG3013-330JLF	SMT	0.33	0.22	0.959	410	±5%	RoHS	smt	0-33	0-22	0-959	410	%c2%b15	rohs	smg3013
SMG3013-330K	SMT	0.33	0.22	0.959	410	±10%	Pb	smt	0-33	0-22	0-959	410	%c2%b110	pb	smg3013
SMG3013-330J	SMT	0.33	0.22	0.959	410	±5%	Pb	smt	0-33	0-22	0-959	410	%c2%b15	pb	smg3013
SMG3013-330GLF	SMT	0.33	0.22	0.959	410	±2%	RoHS	smt	0-33	0-22	0-959	410	%c2%b12	rohs	smg3013
SMG3013-330G	SMT	0.33	0.22	0.959	410	±2%	Pb	smt	0-33	0-22	0-959	410	%c2%b12	pb	smg3013
SMG3013-270MLF	SMT	0.27	0.16	1.124	430	±20%	RoHS	smt	0-27	0-16	1-124	430	%c2%b120	rohs	smg3013
SMG3013-270M	SMT	0.27	0.16	1.124	430	±20%	Pb	smt	0-27	0-16	1-124	430	%c2%b120	pb	smg3013
SMG3013-270KLF	SMT	0.27	0.16	1.124	430	±10%	RoHS	smt	0-27	0-16	1-124	430	%c2%b110	rohs	smg3013
SMG3013-270K	SMT	0.27	0.16	1.124	430	±10%	Pb	smt	0-27	0-16	1-124	430	%c2%b110	pb	smg3013
SMG3013-270JLF	SMT	0.27	0.16	1.124	430	±5%	RoHS	smt	0-27	0-16	1-124	430	%c2%b15	rohs	smg3013
SMG3013-270J	SMT	0.27	0.16	1.124	430	±5%	Pb	smt	0-27	0-16	1-124	430	%c2%b15	pb	smg3013
SMG3013-270G	SMT	0.27	0.16	1.124	430	±2%	Pb	smt	0-27	0-16	1-124	430	%c2%b12	pb	smg3013
SMG3013-270GLF	SMT	0.27	0.16	1.124	430	±2%	RoHS	smt	0-27	0-16	1-124	430	%c2%b12	rohs	smg3013
SMG3013-220M	SMT	0.22	0.14	1.202	510	±20%	Pb	smt	0-22	0-14	1-202	510	%c2%b120	pb	smg3013
SMG3013-220MLF	SMT	0.22	0.14	1.202	510	±20%	RoHS	smt	0-22	0-14	1-202	510	%c2%b120	rohs	smg3013
SMG3013-220KLF	SMT	0.22	0.14	1.202	510	±10%	RoHS	smt	0-22	0-14	1-202	510	%c2%b110	rohs	smg3013
SMG3013-220K	SMT	0.22	0.14	1.202	510	±10%	Pb	smt	0-22	0-14	1-202	510	%c2%b110	pb	smg3013
SMG3013-220JLF	SMT	0.22	0.14	1.202	510	±5%	RoHS	smt	0-22	0-14	1-202	510	%c2%b15	rohs	smg3013
SMG3013-220GLF	SMT	0.22	0.14	1.202	510	±2%	RoHS	smt	0-22	0-14	1-202	510	%c2%b12	rohs	smg3013
SMG3013-220J	SMT	0.22	0.14	1.202	510	±5%	Pb	smt	0-22	0-14	1-202	510	%c2%b15	pb	smg3013
SMG3013-220G	SMT	0.22	0.14	1.202	510	±2%	Pb	smt	0-22	0-14	1-202	510	%c2%b12	pb	smg3013
SMG3013-180MLF	SMT	0.18	0.12	1.298	550	±20%	RoHS	smt	0-18	0-12	1-298	550	%c2%b120	rohs	smg3013
SMG3013-180M	SMT	0.18	0.12	1.298	550	±20%	Pb	smt	0-18	0-12	1-298	550	%c2%b120	pb	smg3013
SMG3013-180KLF	SMT	0.18	0.12	1.298	550	±10%	RoHS	smt	0-18	0-12	1-298	550	%c2%b110	rohs	smg3013
SMG3013-180K	SMT	0.18	0.12	1.298	550	±10%	Pb	smt	0-18	0-12	1-298	550	%c2%b110	pb	smg3013
SMG3013-180JLF	SMT	0.18	0.12	1.298	550	±5%	RoHS	smt	0-18	0-12	1-298	550	%c2%b15	rohs	smg3013
SMG3013-180GLF	SMT	0.18	0.12	1.298	550	±2%	RoHS	smt	0-18	0-12	1-298	550	%c2%b12	rohs	smg3013
SMG3013-180J	SMT	0.18	0.12	1.298	550	±5%	Pb	smt	0-18	0-12	1-298	550	%c2%b15	pb	smg3013
SMG3013-180G	SMT	0.18	0.12	1.298	550	±2%	Pb	smt	0-18	0-12	1-298	550	%c2%b12	pb	smg3013
SMG3013-150MLF	SMT	0.15	0.1	1.422	600	±20%	RoHS	smt	0-15	0-1	1-422	600	%c2%b120	rohs	smg3013
SMG3013-150M	SMT	0.15	0.1	1.422	600	±20%	Pb	smt	0-15	0-1	1-422	600	%c2%b120	pb	smg3013
SMG3013-150KLF	SMT	0.15	0.1	1.422	600	±10%	RoHS	smt	0-15	0-1	1-422	600	%c2%b110	rohs	smg3013
SMG3013-150JLF	SMT	0.15	0.1	1.422	600	±5%	RoHS	smt	0-15	0-1	1-422	600	%c2%b15	rohs	smg3013
SMG3013-150K	SMT	0.15	0.1	1.422	600	±10%	Pb	smt	0-15	0-1	1-422	600	%c2%b110	pb	smg3013
SMG3013-150J	SMT	0.15	0.1	1.422	600	±5%	Pb	smt	0-15	0-1	1-422	600	%c2%b15	pb	smg3013
SMG3013-150GLF	SMT	0.15	0.1	1.422	600	±2%	RoHS	smt	0-15	0-1	1-422	600	%c2%b12	rohs	smg3013
SMG3013-150G	SMT	0.15	0.1	1.422	600	±2%	Pb	smt	0-15	0-1	1-422	600	%c2%b12	pb	smg3013
SMG3013-120MLF	SMT	0.12	0.09	1.499	640	±20%	RoHS	smt	0-12	0-09	1-499	640	%c2%b120	rohs	smg3013
SMG3013-120KLF	SMT	0.12	0.09	1.499	640	±10%	RoHS	smt	0-12	0-09	1-499	640	%c2%b110	rohs	smg3013
SMG3013-120M	SMT	0.12	0.09	1.499	640	±20%	Pb	smt	0-12	0-09	1-499	640	%c2%b120	pb	smg3013
SMG3013-120K	SMT	0.12	0.09	1.499	640	±10%	Pb	smt	0-12	0-09	1-499	640	%c2%b110	pb	smg3013
SMG3013-120JLF	SMT	0.12	0.09	1.499	640	±5%	RoHS	smt	0-12	0-09	1-499	640	%c2%b15	rohs	smg3013
SMG3013-120J	SMT	0.12	0.09	1.499	640	±5%	Pb	smt	0-12	0-09	1-499	640	%c2%b15	pb	smg3013
SMG3013-120GLF	SMT	0.12	0.09	1.499	640	±2%	RoHS	smt	0-12	0-09	1-499	640	%c2%b12	rohs	smg3013
SMG3013-120G	SMT	0.12	0.09	1.499	640	±2%	Pb	smt	0-12	0-09	1-499	640	%c2%b12	pb	smg3013
SMG3013-100M	SMT	0.1	0.08	1.59	680	±20%	Pb	smt	0-1	0-08	1-59	680	%c2%b120	pb	smg3013
SMG3013-100MLF	SMT	0.1	0.08	1.59	680	±20%	RoHS	smt	0-1	0-08	1-59	680	%c2%b120	rohs	smg3013
SMG3013-100KLF	SMT	0.1	0.08	1.59	680	±10%	RoHS	smt	0-1	0-08	1-59	680	%c2%b110	rohs	smg3013
SMG3013-100K	SMT	0.1	0.08	1.59	680	±10%	Pb	smt	0-1	0-08	1-59	680	%c2%b110	pb	smg3013
SMG3013-100JLF	SMT	0.1	0.08	1.59	680	±5%	RoHS	smt	0-1	0-08	1-59	680	%c2%b15	rohs	smg3013
SMG3013-100J	SMT	0.1	0.08	1.59	680	±5%	Pb	smt	0-1	0-08	1-59	680	%c2%b15	pb	smg3013
SMG3013-100GLF	SMT	0.1	0.08	1.59	680	±2%	RoHS	smt	0-1	0-08	1-59	680	%c2%b12	rohs	smg3013
SMG3013-100G	SMT	0.1	0.08	1.59	680	±2%	Pb	smt	0-1	0-08	1-59	680	%c2%b12	pb	smg3013

Notes

Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
Relative Permeability: ≤1.00003
MSL Rating: 1
Epoxy-encapsulated for environmental protection and superior strength to withstand all types of reflow soldering
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Sn63Pb37 (Tin/Lead) for Pb components

Sn/Cu (Tin/Copper) for RoHS components

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
