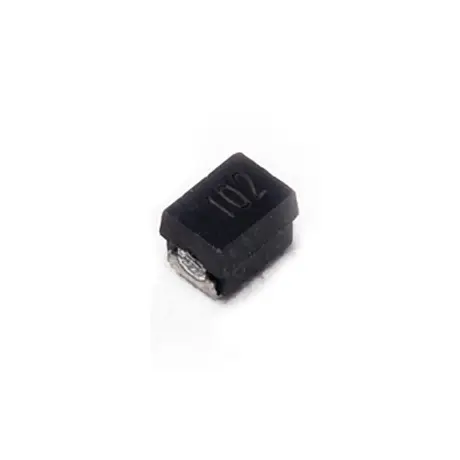

SML32 SERIES

The Gowanda SML32 series of surface mount RF inductors features an inductance range from 0.1 µH to 47 µH, with maximum DC resistance (DCR) values from 0.15 to 25 ohms and current ratings from 91 to 1175 mA DC, operating over a temperature range of -55°C to +125°C. These inductors are available in a 1210 package (2.98 mm x 2.29 mm x 2.18 mm) and are suitable for various RF applications in commercial, medical, and military sectors, including communication, guidance, and test & evaluation equipment.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
SML32-103MLF	SMT	100	10	0.12	8	±20%	RoHS	smt	100	10	0-12	8	%c2%b120	rohs	sml32
SML32-103M	SMT	100	10	0.12	8	±20%	Pb	smt	100	10	0-12	8	%c2%b120	pb	sml32
SML32-103KLF	SMT	100	10	0.12	8	±10%	RoHS	smt	100	10	0-12	8	%c2%b110	rohs	sml32
SML32-103K	SMT	100	10	0.12	8	±10%	Pb	smt	100	10	0-12	8	%c2%b110	pb	sml32
SML32-103JLF	SMT	100	10	0.12	8	±5%	RoHS	smt	100	10	0-12	8	%c2%b15	rohs	sml32
SML32-103J	SMT	100	10	0.12	8	±5%	Pb	smt	100	10	0-12	8	%c2%b15	pb	sml32
SML32-103GLF	SMT	100	10	0.12	8	±2%	RoHS	smt	100	10	0-12	8	%c2%b12	rohs	sml32
SML32-103G	SMT	100	10	0.12	8	±2%	Pb	smt	100	10	0-12	8	%c2%b12	pb	sml32
SML32-822MLF	SMT	82	10	0.136	9	±20%	RoHS	smt	82	10	0-136	9	%c2%b120	rohs	sml32
SML32-822M	SMT	82	10	0.136	9	±20%	Pb	smt	82	10	0-136	9	%c2%b120	pb	sml32
SML32-822KLF	SMT	82	10	0.136	9	±10%	RoHS	smt	82	10	0-136	9	%c2%b110	rohs	sml32
SML32-822K	SMT	82	10	0.136	9	±10%	Pb	smt	82	10	0-136	9	%c2%b110	pb	sml32
SML32-822JLF	SMT	82	10	0.136	9	±5%	RoHS	smt	82	10	0-136	9	%c2%b15	rohs	sml32
SML32-822J	SMT	82	10	0.136	9	±5%	Pb	smt	82	10	0-136	9	%c2%b15	pb	sml32
SML32-822GLF	SMT	82	10	0.136	9	±2%	RoHS	smt	82	10	0-136	9	%c2%b12	rohs	sml32
SML32-822G	SMT	82	10	0.136	9	±2%	Pb	smt	82	10	0-136	9	%c2%b12	pb	sml32
SML32-682MLF	SMT	68	9	0.144	12	±20%	RoHS	smt	68	9	0-144	12	%c2%b120	rohs	sml32
SML32-682M	SMT	68	9	0.144	12	±20%	Pb	smt	68	9	0-144	12	%c2%b120	pb	sml32
SML32-682KLF	SMT	68	9	0.144	12	±10%	RoHS	smt	68	9	0-144	12	%c2%b110	rohs	sml32
SML32-682K	SMT	68	9	0.144	12	±10%	Pb	smt	68	9	0-144	12	%c2%b110	pb	sml32
SML32-682JLF	SMT	68	9	0.144	12	±5%	RoHS	smt	68	9	0-144	12	%c2%b15	rohs	sml32
SML32-682J	SMT	68	9	0.144	12	±5%	Pb	smt	68	9	0-144	12	%c2%b15	pb	sml32
SML32-682GLF	SMT	68	9	0.144	12	±2%	RoHS	smt	68	9	0-144	12	%c2%b12	rohs	sml32
SML32-682G	SMT	68	9	0.144	12	±2%	Pb	smt	68	9	0-144	12	%c2%b12	pb	sml32
SML32-562MLF	SMT	56	8	0.152	13	±20%	RoHS	smt	56	8	0-152	13	%c2%b120	rohs	sml32
SML32-562M	SMT	56	8	0.152	13	±20%	Pb	smt	56	8	0-152	13	%c2%b120	pb	sml32
SML32-562KLF	SMT	56	8	0.152	13	±10%	RoHS	smt	56	8	0-152	13	%c2%b110	rohs	sml32
SML32-562K	SMT	56	8	0.152	13	±10%	Pb	smt	56	8	0-152	13	%c2%b110	pb	sml32
SML32-562JLF	SMT	56	8	0.152	13	±5%	RoHS	smt	56	8	0-152	13	%c2%b15	rohs	sml32
SML32-562J	SMT	56	8	0.152	13	±5%	Pb	smt	56	8	0-152	13	%c2%b15	pb	sml32
SML32-562GLF	SMT	56	8	0.152	13	±2%	RoHS	smt	56	8	0-152	13	%c2%b12	rohs	sml32
SML32-562G	SMT	56	8	0.152	13	±2%	Pb	smt	56	8	0-152	13	%c2%b12	pb	sml32
SML32-472MLF	SMT	47	7	0.163	15	±20%	RoHS	smt	47	7	0-163	15	%c2%b120	rohs	sml32
SML32-472M	SMT	47	7	0.163	15	±20%	Pb	smt	47	7	0-163	15	%c2%b120	pb	sml32
SML32-472KLF	SMT	47	7	0.163	15	±10%	RoHS	smt	47	7	0-163	15	%c2%b110	rohs	sml32
SML32-472K	SMT	47	7	0.163	15	±10%	Pb	smt	47	7	0-163	15	%c2%b110	pb	sml32
SML32-472JLF	SMT	47	7	0.163	15	±5%	RoHS	smt	47	7	0-163	15	%c2%b15	rohs	sml32
SML32-472J	SMT	47	7	0.163	15	±5%	Pb	smt	47	7	0-163	15	%c2%b15	pb	sml32
SML32-472GLF	SMT	47	7	0.163	15	±2%	RoHS	smt	47	7	0-163	15	%c2%b12	rohs	sml32
SML32-472G	SMT	47	7	0.163	15	±2%	Pb	smt	47	7	0-163	15	%c2%b12	pb	sml32
SML32-392MLF	SMT	39	6.4	0.17	16	±20%	RoHS	smt	39	6-4	0-17	16	%c2%b120	rohs	sml32
SML32-392M	SMT	39	6.4	0.17	16	±20%	Pb	smt	39	6-4	0-17	16	%c2%b120	pb	sml32
SML32-392KLF	SMT	39	6.4	0.17	16	±10%	RoHS	smt	39	6-4	0-17	16	%c2%b110	rohs	sml32
SML32-392K	SMT	39	6.4	0.17	16	±10%	Pb	smt	39	6-4	0-17	16	%c2%b110	pb	sml32
SML32-392JLF	SMT	39	6.4	0.17	16	±5%	RoHS	smt	39	6-4	0-17	16	%c2%b15	rohs	sml32
SML32-392J	SMT	39	6.4	0.17	16	±5%	Pb	smt	39	6-4	0-17	16	%c2%b15	pb	sml32
SML32-392GLF	SMT	39	6.4	0.17	16	±2%	RoHS	smt	39	6-4	0-17	16	%c2%b12	rohs	sml32
SML32-392G	SMT	39	6.4	0.17	16	±2%	Pb	smt	39	6-4	0-17	16	%c2%b12	pb	sml32
SML32-332MLF	SMT	33	6	0.182	17	±20%	RoHS	smt	33	6	0-182	17	%c2%b120	rohs	sml32
SML32-332M	SMT	33	6	0.182	17	±20%	Pb	smt	33	6	0-182	17	%c2%b120	pb	sml32
SML32-332KLF	SMT	33	6	0.182	17	±10%	RoHS	smt	33	6	0-182	17	%c2%b110	rohs	sml32
SML32-332K	SMT	33	6	0.182	17	±10%	Pb	smt	33	6	0-182	17	%c2%b110	pb	sml32
SML32-332JLF	SMT	33	6	0.182	17	±5%	RoHS	smt	33	6	0-182	17	%c2%b15	rohs	sml32
SML32-332J	SMT	33	6	0.182	17	±5%	Pb	smt	33	6	0-182	17	%c2%b15	pb	sml32
SML32-332GLF	SMT	33	6	0.182	17	±2%	RoHS	smt	33	6	0-182	17	%c2%b12	rohs	sml32
SML32-332G	SMT	33	6	0.182	17	±2%	Pb	smt	33	6	0-182	17	%c2%b12	pb	sml32
SML32-272MLF	SMT	27	5	0.193	20	±20%	RoHS	smt	27	5	0-193	20	%c2%b120	rohs	sml32
SML32-272M	SMT	27	5	0.193	20	±20%	Pb	smt	27	5	0-193	20	%c2%b120	pb	sml32
SML32-272KLF	SMT	27	5	0.193	20	±10%	RoHS	smt	27	5	0-193	20	%c2%b110	rohs	sml32
SML32-272K	SMT	27	5	0.193	20	±10%	Pb	smt	27	5	0-193	20	%c2%b110	pb	sml32
SML32-272JLF	SMT	27	5	0.193	20	±5%	RoHS	smt	27	5	0-193	20	%c2%b15	rohs	sml32
SML32-272J	SMT	27	5	0.193	20	±5%	Pb	smt	27	5	0-193	20	%c2%b15	pb	sml32
SML32-272GLF	SMT	27	5	0.193	20	±2%	RoHS	smt	27	5	0-193	20	%c2%b12	rohs	sml32
SML32-272G	SMT	27	5	0.193	20	±2%	Pb	smt	27	5	0-193	20	%c2%b12	pb	sml32
SML32-222MLF	SMT	22	3.7	0.224	25	±20%	RoHS	smt	22	3-7	0-224	25	%c2%b120	rohs	sml32
SML32-222M	SMT	22	3.7	0.224	25	±20%	Pb	smt	22	3-7	0-224	25	%c2%b120	pb	sml32
SML32-222KLF	SMT	22	3.7	0.224	25	±10%	RoHS	smt	22	3-7	0-224	25	%c2%b110	rohs	sml32
SML32-222K	SMT	22	3.7	0.224	25	±10%	Pb	smt	22	3-7	0-224	25	%c2%b110	pb	sml32
SML32-222JLF	SMT	22	3.7	0.224	25	±5%	RoHS	smt	22	3-7	0-224	25	%c2%b15	rohs	sml32
SML32-222J	SMT	22	3.7	0.224	25	±5%	Pb	smt	22	3-7	0-224	25	%c2%b15	pb	sml32
SML32-222GLF	SMT	22	3.7	0.224	25	±2%	RoHS	smt	22	3-7	0-224	25	%c2%b12	rohs	sml32
SML32-222G	SMT	22	3.7	0.224	25	±2%	Pb	smt	22	3-7	0-224	25	%c2%b12	pb	sml32
SML32-182MLF	SMT	18	3.3	0.237	27	±20%	RoHS	smt	18	3-3	0-237	27	%c2%b120	rohs	sml32
SML32-182M	SMT	18	3.3	0.237	27	±20%	Pb	smt	18	3-3	0-237	27	%c2%b120	pb	sml32
SML32-182KLF	SMT	18	3.3	0.237	27	±10%	RoHS	smt	18	3-3	0-237	27	%c2%b110	rohs	sml32
SML32-182K	SMT	18	3.3	0.237	27	±10%	Pb	smt	18	3-3	0-237	27	%c2%b110	pb	sml32
SML32-182JLF	SMT	18	3.3	0.237	27	±5%	RoHS	smt	18	3-3	0-237	27	%c2%b15	rohs	sml32
SML32-182J	SMT	18	3.3	0.237	27	±5%	Pb	smt	18	3-3	0-237	27	%c2%b15	pb	sml32
SML32-182GLF	SMT	18	3.3	0.237	27	±2%	RoHS	smt	18	3-3	0-237	27	%c2%b12	rohs	sml32
SML32-182G	SMT	18	3.3	0.237	27	±2%	Pb	smt	18	3-3	0-237	27	%c2%b12	pb	sml32
SML32-152MLF	SMT	15	2.8	0.257	30	±20%	RoHS	smt	15	2-8	0-257	30	%c2%b120	rohs	sml32
SML32-152M	SMT	15	2.8	0.257	30	±20%	Pb	smt	15	2-8	0-257	30	%c2%b120	pb	sml32
SML32-152KLF	SMT	15	2.8	0.257	30	±10%	RoHS	smt	15	2-8	0-257	30	%c2%b110	rohs	sml32
SML32-152K	SMT	15	2.8	0.257	30	±10%	Pb	smt	15	2-8	0-257	30	%c2%b110	pb	sml32
SML32-152JLF	SMT	15	2.8	0.257	30	±5%	RoHS	smt	15	2-8	0-257	30	%c2%b15	rohs	sml32
SML32-152J	SMT	15	2.8	0.257	30	±5%	Pb	smt	15	2-8	0-257	30	%c2%b15	pb	sml32
SML32-152GLF	SMT	15	2.8	0.257	30	±2%	RoHS	smt	15	2-8	0-257	30	%c2%b12	rohs	sml32
SML32-152G	SMT	15	2.8	0.257	30	±2%	Pb	smt	15	2-8	0-257	30	%c2%b12	pb	sml32
SML32-122MLF	SMT	12	2.5	0.272	33	±20%	RoHS	smt	12	2-5	0-272	33	%c2%b120	rohs	sml32
SML32-122M	SMT	12	2.5	0.272	33	±20%	Pb	smt	12	2-5	0-272	33	%c2%b120	pb	sml32
SML32-122KLF	SMT	12	2.5	0.272	33	±10%	RoHS	smt	12	2-5	0-272	33	%c2%b110	rohs	sml32
SML32-122K	SMT	12	2.5	0.272	33	±10%	Pb	smt	12	2-5	0-272	33	%c2%b110	pb	sml32
SML32-122JLF	SMT	12	2.5	0.272	33	±5%	RoHS	smt	12	2-5	0-272	33	%c2%b15	rohs	sml32
SML32-122J	SMT	12	2.5	0.272	33	±5%	Pb	smt	12	2-5	0-272	33	%c2%b15	pb	sml32
SML32-122GLF	SMT	12	2.5	0.272	33	±2%	RoHS	smt	12	2-5	0-272	33	%c2%b12	rohs	sml32
SML32-122G	SMT	12	2.5	0.272	33	±2%	Pb	smt	12	2-5	0-272	33	%c2%b12	pb	sml32
SML32-102MLF	SMT	10	2.1	0.297	36	±20%	RoHS	smt	10	2-1	0-297	36	%c2%b120	rohs	sml32
SML32-102M	SMT	10	2.1	0.297	36	±20%	Pb	smt	10	2-1	0-297	36	%c2%b120	pb	sml32
SML32-102KLF	SMT	10	2.1	0.297	36	±10%	RoHS	smt	10	2-1	0-297	36	%c2%b110	rohs	sml32
SML32-102K	SMT	10	2.1	0.297	36	±10%	Pb	smt	10	2-1	0-297	36	%c2%b110	pb	sml32
SML32-102JLF	SMT	10	2.1	0.297	36	±5%	RoHS	smt	10	2-1	0-297	36	%c2%b15	rohs	sml32
SML32-102J	SMT	10	2.1	0.297	36	±5%	Pb	smt	10	2-1	0-297	36	%c2%b15	pb	sml32
SML32-102GLF	SMT	10	2.1	0.297	36	±2%	RoHS	smt	10	2-1	0-297	36	%c2%b12	rohs	sml32
SML32-102G	SMT	10	2.1	0.297	36	±2%	Pb	smt	10	2-1	0-297	36	%c2%b12	pb	sml32
SML32-821MLF	SMT	8.2	2	0.305	40	±20%	RoHS	smt	8-2	2	0-305	40	%c2%b120	rohs	sml32
SML32-821M	SMT	8.2	2	0.305	40	±20%	Pb	smt	8-2	2	0-305	40	%c2%b120	pb	sml32
SML32-821KLF	SMT	8.2	2	0.305	40	±10%	RoHS	smt	8-2	2	0-305	40	%c2%b110	rohs	sml32
SML32-821K	SMT	8.2	2	0.305	40	±10%	Pb	smt	8-2	2	0-305	40	%c2%b110	pb	sml32
SML32-821JLF	SMT	8.2	2	0.305	40	±5%	RoHS	smt	8-2	2	0-305	40	%c2%b15	rohs	sml32
SML32-821J	SMT	8.2	2	0.305	40	±5%	Pb	smt	8-2	2	0-305	40	%c2%b15	pb	sml32
SML32-821GLF	SMT	8.2	2	0.305	40	±2%	RoHS	smt	8-2	2	0-305	40	%c2%b12	rohs	sml32
SML32-821G	SMT	8.2	2	0.305	40	±2%	Pb	smt	8-2	2	0-305	40	%c2%b12	pb	sml32
SML32-681MLF	SMT	6.8	1.8	0.321	43	±20%	RoHS	smt	6-8	1-8	0-321	43	%c2%b120	rohs	sml32
SML32-681M	SMT	6.8	1.8	0.321	43	±20%	Pb	smt	6-8	1-8	0-321	43	%c2%b120	pb	sml32
SML32-681KLF	SMT	6.8	1.8	0.321	43	±10%	RoHS	smt	6-8	1-8	0-321	43	%c2%b110	rohs	sml32
SML32-681K	SMT	6.8	1.8	0.321	43	±10%	Pb	smt	6-8	1-8	0-321	43	%c2%b110	pb	sml32
SML32-681JLF	SMT	6.8	1.8	0.321	43	±5%	RoHS	smt	6-8	1-8	0-321	43	%c2%b15	rohs	sml32
SML32-681J	SMT	6.8	1.8	0.321	43	±5%	Pb	smt	6-8	1-8	0-321	43	%c2%b15	pb	sml32
SML32-681GLF	SMT	6.8	1.8	0.321	43	±2%	RoHS	smt	6-8	1-8	0-321	43	%c2%b12	rohs	sml32
SML32-681G	SMT	6.8	1.8	0.321	43	±2%	Pb	smt	6-8	1-8	0-321	43	%c2%b12	pb	sml32
SML32-561MLF	SMT	5.6	1.6	0.341	47	±20%	RoHS	smt	5-6	1-6	0-341	47	%c2%b120	rohs	sml32
SML32-561M	SMT	5.6	1.6	0.341	47	±20%	Pb	smt	5-6	1-6	0-341	47	%c2%b120	pb	sml32
SML32-561KLF	SMT	5.6	1.6	0.341	47	±10%	RoHS	smt	5-6	1-6	0-341	47	%c2%b110	rohs	sml32
SML32-561K	SMT	5.6	1.6	0.341	47	±10%	Pb	smt	5-6	1-6	0-341	47	%c2%b110	pb	sml32
SML32-561JLF	SMT	5.6	1.6	0.341	47	±5%	RoHS	smt	5-6	1-6	0-341	47	%c2%b15	rohs	sml32
SML32-561J	SMT	5.6	1.6	0.341	47	±5%	Pb	smt	5-6	1-6	0-341	47	%c2%b15	pb	sml32
SML32-561GLF	SMT	5.6	1.6	0.341	47	±2%	RoHS	smt	5-6	1-6	0-341	47	%c2%b12	rohs	sml32
SML32-561G	SMT	5.6	1.6	0.341	47	±2%	Pb	smt	5-6	1-6	0-341	47	%c2%b12	pb	sml32
SML32-471MLF	SMT	4.7	1.5	0.352	50	±20%	RoHS	smt	4-7	1-5	0-352	50	%c2%b120	rohs	sml32
SML32-471M	SMT	4.7	1.5	0.352	50	±20%	Pb	smt	4-7	1-5	0-352	50	%c2%b120	pb	sml32
SML32-471KLF	SMT	4.7	1.5	0.352	50	±10%	RoHS	smt	4-7	1-5	0-352	50	%c2%b110	rohs	sml32
SML32-471K	SMT	4.7	1.5	0.352	50	±10%	Pb	smt	4-7	1-5	0-352	50	%c2%b110	pb	sml32
SML32-471JLF	SMT	4.7	1.5	0.352	50	±5%	RoHS	smt	4-7	1-5	0-352	50	%c2%b15	rohs	sml32
SML32-471J	SMT	4.7	1.5	0.352	50	±5%	Pb	smt	4-7	1-5	0-352	50	%c2%b15	pb	sml32
SML32-471GLF	SMT	4.7	1.5	0.352	50	±2%	RoHS	smt	4-7	1-5	0-352	50	%c2%b12	rohs	sml32
SML32-471G	SMT	4.7	1.5	0.352	50	±2%	Pb	smt	4-7	1-5	0-352	50	%c2%b12	pb	sml32
SML32-391MLF	SMT	3.9	1.3	0.378	55	±20%	RoHS	smt	3-9	1-3	0-378	55	%c2%b120	rohs	sml32
SML32-391M	SMT	3.9	1.3	0.378	55	±20%	Pb	smt	3-9	1-3	0-378	55	%c2%b120	pb	sml32
SML32-391KLF	SMT	3.9	1.3	0.378	55	±10%	RoHS	smt	3-9	1-3	0-378	55	%c2%b110	rohs	sml32
SML32-391K	SMT	3.9	1.3	0.378	55	±10%	Pb	smt	3-9	1-3	0-378	55	%c2%b110	pb	sml32
SML32-391JLF	SMT	3.9	1.3	0.378	55	±5%	RoHS	smt	3-9	1-3	0-378	55	%c2%b15	rohs	sml32
SML32-391J	SMT	3.9	1.3	0.378	55	±5%	Pb	smt	3-9	1-3	0-378	55	%c2%b15	pb	sml32
SML32-391GLF	SMT	3.9	1.3	0.378	55	±2%	RoHS	smt	3-9	1-3	0-378	55	%c2%b12	rohs	sml32
SML32-391G	SMT	3.9	1.3	0.378	55	±2%	Pb	smt	3-9	1-3	0-378	55	%c2%b12	pb	sml32
SML32-331MLF	SMT	3.3	1.2	0.393	60	±20%	RoHS	smt	3-3	1-2	0-393	60	%c2%b120	rohs	sml32
SML32-331M	SMT	3.3	1.2	0.393	60	±20%	Pb	smt	3-3	1-2	0-393	60	%c2%b120	pb	sml32
SML32-331KLF	SMT	3.3	1.2	0.393	60	±10%	RoHS	smt	3-3	1-2	0-393	60	%c2%b110	rohs	sml32
SML32-331K	SMT	3.3	1.2	0.393	60	±10%	Pb	smt	3-3	1-2	0-393	60	%c2%b110	pb	sml32
SML32-331JLF	SMT	3.3	1.2	0.393	60	±5%	RoHS	smt	3-3	1-2	0-393	60	%c2%b15	rohs	sml32
SML32-331J	SMT	3.3	1.2	0.393	60	±5%	Pb	smt	3-3	1-2	0-393	60	%c2%b15	pb	sml32
SML32-331GLF	SMT	3.3	1.2	0.393	60	±2%	RoHS	smt	3-3	1-2	0-393	60	%c2%b12	rohs	sml32
SML32-331G	SMT	3.3	1.2	0.393	60	±2%	Pb	smt	3-3	1-2	0-393	60	%c2%b12	pb	sml32
SML32-271MLF	SMT	2.7	1.1	0.434	70	±20%	RoHS	smt	2-7	1-1	0-434	70	%c2%b120	rohs	sml32
SML32-271M	SMT	2.7	1.1	0.434	70	±20%	Pb	smt	2-7	1-1	0-434	70	%c2%b120	pb	sml32
SML32-271KLF	SMT	2.7	1.1	0.434	70	±10%	RoHS	smt	2-7	1-1	0-434	70	%c2%b110	rohs	sml32
SML32-271K	SMT	2.7	1.1	0.434	70	±10%	Pb	smt	2-7	1-1	0-434	70	%c2%b110	pb	sml32
SML32-271JLF	SMT	2.7	1.1	0.434	70	±5%	RoHS	smt	2-7	1-1	0-434	70	%c2%b15	rohs	sml32
SML32-271J	SMT	2.7	1.1	0.434	70	±5%	Pb	smt	2-7	1-1	0-434	70	%c2%b15	pb	sml32
SML32-271GLF	SMT	2.7	1.1	0.434	70	±2%	RoHS	smt	2-7	1-1	0-434	70	%c2%b12	rohs	sml32
SML32-271G	SMT	2.7	1.1	0.434	70	±2%	Pb	smt	2-7	1-1	0-434	70	%c2%b12	pb	sml32
SML32-221MLF	SMT	2.2	1	0.455	75	±20%	RoHS	smt	2-2	1	0-455	75	%c2%b120	rohs	sml32
SML32-221M	SMT	2.2	1	0.455	75	±20%	Pb	smt	2-2	1	0-455	75	%c2%b120	pb	sml32
SML32-221KLF	SMT	2.2	1	0.455	75	±10%	RoHS	smt	2-2	1	0-455	75	%c2%b110	rohs	sml32
SML32-221K	SMT	2.2	1	0.455	75	±10%	Pb	smt	2-2	1	0-455	75	%c2%b110	pb	sml32
SML32-221JLF	SMT	2.2	1	0.455	75	±5%	RoHS	smt	2-2	1	0-455	75	%c2%b15	rohs	sml32
SML32-221J	SMT	2.2	1	0.455	75	±5%	Pb	smt	2-2	1	0-455	75	%c2%b15	pb	sml32
SML32-221GLF	SMT	2.2	1	0.455	75	±2%	RoHS	smt	2-2	1	0-455	75	%c2%b12	rohs	sml32
SML32-221G	SMT	2.2	1	0.455	75	±2%	Pb	smt	2-2	1	0-455	75	%c2%b12	pb	sml32
SML32-181MLF	SMT	1.8	0.9	0.48	80	±20%	RoHS	smt	1-8	0-9	0-48	80	%c2%b120	rohs	sml32
SML32-181M	SMT	1.8	0.9	0.48	80	±20%	Pb	smt	1-8	0-9	0-48	80	%c2%b120	pb	sml32
SML32-181KLF	SMT	1.8	0.9	0.48	80	±10%	RoHS	smt	1-8	0-9	0-48	80	%c2%b110	rohs	sml32
SML32-181K	SMT	1.8	0.9	0.48	80	±10%	Pb	smt	1-8	0-9	0-48	80	%c2%b110	pb	sml32
SML32-181JLF	SMT	1.8	0.9	0.48	80	±5%	RoHS	smt	1-8	0-9	0-48	80	%c2%b15	rohs	sml32
SML32-181J	SMT	1.8	0.9	0.48	80	±5%	Pb	smt	1-8	0-9	0-48	80	%c2%b15	pb	sml32
SML32-181GLF	SMT	1.8	0.9	0.48	80	±2%	RoHS	smt	1-8	0-9	0-48	80	%c2%b12	rohs	sml32
SML32-181G	SMT	1.8	0.9	0.48	80	±2%	Pb	smt	1-8	0-9	0-48	80	%c2%b12	pb	sml32
SML32-151MLF	SMT	1.5	0.85	0.494	85	±20%	RoHS	smt	1-5	0-85	0-494	85	%c2%b120	rohs	sml32
SML32-151M	SMT	1.5	0.85	0.494	85	±20%	Pb	smt	1-5	0-85	0-494	85	%c2%b120	pb	sml32
SML32-151KLF	SMT	1.5	0.85	0.494	85	±10%	RoHS	smt	1-5	0-85	0-494	85	%c2%b110	rohs	sml32
SML32-151K	SMT	1.5	0.85	0.494	85	±10%	Pb	smt	1-5	0-85	0-494	85	%c2%b110	pb	sml32
SML32-151JLF	SMT	1.5	0.85	0.494	85	±5%	RoHS	smt	1-5	0-85	0-494	85	%c2%b15	rohs	sml32
SML32-151J	SMT	1.5	0.85	0.494	85	±5%	Pb	smt	1-5	0-85	0-494	85	%c2%b15	pb	sml32
SML32-151GLF	SMT	1.5	0.85	0.494	85	±2%	RoHS	smt	1-5	0-85	0-494	85	%c2%b12	rohs	sml32
SML32-151G	SMT	1.5	0.85	0.494	85	±2%	Pb	smt	1-5	0-85	0-494	85	%c2%b12	pb	sml32
SML32-121MLF	SMT	1.2	0.75	0.526	100	±20%	RoHS	smt	1-2	0-75	0-526	100	%c2%b120	rohs	sml32
SML32-121M	SMT	1.2	0.75	0.526	100	±20%	Pb	smt	1-2	0-75	0-526	100	%c2%b120	pb	sml32
SML32-121KLF	SMT	1.2	0.75	0.526	100	±10%	RoHS	smt	1-2	0-75	0-526	100	%c2%b110	rohs	sml32
SML32-121K	SMT	1.2	0.75	0.526	100	±10%	Pb	smt	1-2	0-75	0-526	100	%c2%b110	pb	sml32
SML32-121JLF	SMT	1.2	0.75	0.526	100	±5%	RoHS	smt	1-2	0-75	0-526	100	%c2%b15	rohs	sml32
SML32-121J	SMT	1.2	0.75	0.526	100	±5%	Pb	smt	1-2	0-75	0-526	100	%c2%b15	pb	sml32
SML32-121GLF	SMT	1.2	0.75	0.526	100	±2%	RoHS	smt	1-2	0-75	0-526	100	%c2%b12	rohs	sml32
SML32-121G	SMT	1.2	0.75	0.526	100	±2%	Pb	smt	1-2	0-75	0-526	100	%c2%b12	pb	sml32
SML32-101MLF	SMT	1	0.7	0.544	120	±20%	RoHS	smt	1	0-7	0-544	120	%c2%b120	rohs	sml32
SML32-101M	SMT	1	0.7	0.544	120	±20%	Pb	smt	1	0-7	0-544	120	%c2%b120	pb	sml32
SML32-101KLF	SMT	1	0.7	0.544	120	±10%	RoHS	smt	1	0-7	0-544	120	%c2%b110	rohs	sml32
SML32-101K	SMT	1	0.7	0.544	120	±10%	Pb	smt	1	0-7	0-544	120	%c2%b110	pb	sml32
SML32-101JLF	SMT	1	0.7	0.544	120	±5%	RoHS	smt	1	0-7	0-544	120	%c2%b15	rohs	sml32
SML32-101J	SMT	1	0.7	0.544	120	±5%	Pb	smt	1	0-7	0-544	120	%c2%b15	pb	sml32
SML32-101GLF	SMT	1	0.7	0.544	120	±2%	RoHS	smt	1	0-7	0-544	120	%c2%b12	rohs	sml32
SML32-101G	SMT	1	0.7	0.544	120	±2%	Pb	smt	1	0-7	0-544	120	%c2%b12	pb	sml32
SML32-820MLF	SMT	0.82	0.67	0.556	140	±20%	RoHS	smt	0-82	0-67	0-556	140	%c2%b120	rohs	sml32
SML32-820M	SMT	0.82	0.67	0.556	140	±20%	Pb	smt	0-82	0-67	0-556	140	%c2%b120	pb	sml32
SML32-820KLF	SMT	0.82	0.67	0.556	140	±10%	RoHS	smt	0-82	0-67	0-556	140	%c2%b110	rohs	sml32
SML32-820K	SMT	0.82	0.67	0.556	140	±10%	Pb	smt	0-82	0-67	0-556	140	%c2%b110	pb	sml32
SML32-820JLF	SMT	0.82	0.67	0.556	140	±5%	RoHS	smt	0-82	0-67	0-556	140	%c2%b15	rohs	sml32
SML32-820J	SMT	0.82	0.67	0.556	140	±5%	Pb	smt	0-82	0-67	0-556	140	%c2%b15	pb	sml32
SML32-820GLF	SMT	0.82	0.67	0.556	140	±2%	RoHS	smt	0-82	0-67	0-556	140	%c2%b12	rohs	sml32
SML32-820G	SMT	0.82	0.67	0.556	140	±2%	Pb	smt	0-82	0-67	0-556	140	%c2%b12	pb	sml32
SML32-680MLF	SMT	0.68	0.6	0.588	160	±20%	RoHS	smt	0-68	0-6	0-588	160	%c2%b120	rohs	sml32
SML32-680M	SMT	0.68	0.6	0.588	160	±20%	Pb	smt	0-68	0-6	0-588	160	%c2%b120	pb	sml32
SML32-680KLF	SMT	0.68	0.6	0.588	160	±10%	RoHS	smt	0-68	0-6	0-588	160	%c2%b110	rohs	sml32
SML32-680K	SMT	0.68	0.6	0.588	160	±10%	Pb	smt	0-68	0-6	0-588	160	%c2%b110	pb	sml32
SML32-680JLF	SMT	0.68	0.6	0.588	160	±5%	RoHS	smt	0-68	0-6	0-588	160	%c2%b15	rohs	sml32
SML32-680J	SMT	0.68	0.6	0.588	160	±5%	Pb	smt	0-68	0-6	0-588	160	%c2%b15	pb	sml32
SML32-680GLF	SMT	0.68	0.6	0.588	160	±2%	RoHS	smt	0-68	0-6	0-588	160	%c2%b12	rohs	sml32
SML32-680G	SMT	0.68	0.6	0.588	160	±2%	Pb	smt	0-68	0-6	0-588	160	%c2%b12	pb	sml32
SML32-560MLF	SMT	0.56	0.55	0.614	180	±20%	RoHS	smt	0-56	0-55	0-614	180	%c2%b120	rohs	sml32
SML32-560M	SMT	0.56	0.55	0.614	180	±20%	Pb	smt	0-56	0-55	0-614	180	%c2%b120	pb	sml32
SML32-560KLF	SMT	0.56	0.55	0.614	180	±10%	RoHS	smt	0-56	0-55	0-614	180	%c2%b110	rohs	sml32
SML32-560K	SMT	0.56	0.55	0.614	180	±10%	Pb	smt	0-56	0-55	0-614	180	%c2%b110	pb	sml32
SML32-560JLF	SMT	0.56	0.55	0.614	180	±5%	RoHS	smt	0-56	0-55	0-614	180	%c2%b15	rohs	sml32
SML32-560J	SMT	0.56	0.55	0.614	180	±5%	Pb	smt	0-56	0-55	0-614	180	%c2%b15	pb	sml32
SML32-560GLF	SMT	0.56	0.55	0.614	180	±2%	RoHS	smt	0-56	0-55	0-614	180	%c2%b12	rohs	sml32
SML32-560G	SMT	0.56	0.55	0.614	180	±2%	Pb	smt	0-56	0-55	0-614	180	%c2%b12	pb	sml32
SML32-470MLF	SMT	0.47	0.5	0.644	220	±20%	RoHS	smt	0-47	0-5	0-644	220	%c2%b120	rohs	sml32
SML32-470M	SMT	0.47	0.5	0.644	220	±20%	Pb	smt	0-47	0-5	0-644	220	%c2%b120	pb	sml32
SML32-470KLF	SMT	0.47	0.5	0.644	220	±10%	RoHS	smt	0-47	0-5	0-644	220	%c2%b110	rohs	sml32
SML32-470K	SMT	0.47	0.5	0.644	220	±10%	Pb	smt	0-47	0-5	0-644	220	%c2%b110	pb	sml32
SML32-470JLF	SMT	0.47	0.5	0.644	220	±5%	RoHS	smt	0-47	0-5	0-644	220	%c2%b15	rohs	sml32
SML32-470J	SMT	0.47	0.5	0.644	220	±5%	Pb	smt	0-47	0-5	0-644	220	%c2%b15	pb	sml32
SML32-470GLF	SMT	0.47	0.5	0.644	220	±2%	RoHS	smt	0-47	0-5	0-644	220	%c2%b12	rohs	sml32
SML32-470G	SMT	0.47	0.5	0.644	220	±2%	Pb	smt	0-47	0-5	0-644	220	%c2%b12	pb	sml32
SML32-390MLF	SMT	0.39	0.45	0.679	250	±20%	RoHS	smt	0-39	0-45	0-679	250	%c2%b120	rohs	sml32
SML32-390M	SMT	0.39	0.45	0.679	250	±20%	Pb	smt	0-39	0-45	0-679	250	%c2%b120	pb	sml32
SML32-390KLF	SMT	0.39	0.45	0.679	250	±10%	RoHS	smt	0-39	0-45	0-679	250	%c2%b110	rohs	sml32
SML32-390K	SMT	0.39	0.45	0.679	250	±10%	Pb	smt	0-39	0-45	0-679	250	%c2%b110	pb	sml32
SML32-390JLF	SMT	0.39	0.45	0.679	250	±5%	RoHS	smt	0-39	0-45	0-679	250	%c2%b15	rohs	sml32
SML32-390J	SMT	0.39	0.45	0.679	250	±5%	Pb	smt	0-39	0-45	0-679	250	%c2%b15	pb	sml32
SML32-390GLF	SMT	0.39	0.45	0.679	250	±2%	RoHS	smt	0-39	0-45	0-679	250	%c2%b12	rohs	sml32
SML32-390G	SMT	0.39	0.45	0.679	250	±2%	Pb	smt	0-39	0-45	0-679	250	%c2%b12	pb	sml32
SML32-330MLF	SMT	0.33	0.4	0.72	300	±20%	RoHS	smt	0-33	0-4	0-72	300	%c2%b120	rohs	sml32
SML32-330M	SMT	0.33	0.4	0.72	300	±20%	Pb	smt	0-33	0-4	0-72	300	%c2%b120	pb	sml32
SML32-330KLF	SMT	0.33	0.4	0.72	300	±10%	RoHS	smt	0-33	0-4	0-72	300	%c2%b110	rohs	sml32
SML32-330K	SMT	0.33	0.4	0.72	300	±10%	Pb	smt	0-33	0-4	0-72	300	%c2%b110	pb	sml32
SML32-330JLF	SMT	0.33	0.4	0.72	300	±5%	RoHS	smt	0-33	0-4	0-72	300	%c2%b15	rohs	sml32
SML32-330J	SMT	0.33	0.4	0.72	300	±5%	Pb	smt	0-33	0-4	0-72	300	%c2%b15	pb	sml32
SML32-330GLF	SMT	0.33	0.4	0.72	300	±2%	RoHS	smt	0-33	0-4	0-72	300	%c2%b12	rohs	sml32
SML32-330G	SMT	0.33	0.4	0.72	300	±2%	Pb	smt	0-33	0-4	0-72	300	%c2%b12	pb	sml32
SML32-270MLF	SMT	0.27	0.36	0.749	320	±20%	RoHS	smt	0-27	0-36	0-749	320	%c2%b120	rohs	sml32
SML32-270M	SMT	0.27	0.36	0.749	320	±20%	Pb	smt	0-27	0-36	0-749	320	%c2%b120	pb	sml32
SML32-270KLF	SMT	0.27	0.36	0.749	320	±10%	RoHS	smt	0-27	0-36	0-749	320	%c2%b110	rohs	sml32
SML32-270K	SMT	0.27	0.36	0.749	320	±10%	Pb	smt	0-27	0-36	0-749	320	%c2%b110	pb	sml32
SML32-270JLF	SMT	0.27	0.36	0.749	320	±5%	RoHS	smt	0-27	0-36	0-749	320	%c2%b15	rohs	sml32
SML32-270J	SMT	0.27	0.36	0.749	320	±5%	Pb	smt	0-27	0-36	0-749	320	%c2%b15	pb	sml32
SML32-270GLF	SMT	0.27	0.36	0.749	320	±2%	RoHS	smt	0-27	0-36	0-749	320	%c2%b12	rohs	sml32
SML32-270G	SMT	0.27	0.36	0.749	320	±2%	Pb	smt	0-27	0-36	0-749	320	%c2%b12	pb	sml32
SML32-220MLF	SMT	0.22	0.32	0.805	350	±20%	RoHS	smt	0-22	0-32	0-805	350	%c2%b120	rohs	sml32
SML32-220M	SMT	0.22	0.32	0.805	350	±20%	Pb	smt	0-22	0-32	0-805	350	%c2%b120	pb	sml32
SML32-220KLF	SMT	0.22	0.32	0.805	350	±10%	RoHS	smt	0-22	0-32	0-805	350	%c2%b110	rohs	sml32
SML32-220K	SMT	0.22	0.32	0.805	350	±10%	Pb	smt	0-22	0-32	0-805	350	%c2%b110	pb	sml32
SML32-220JLF	SMT	0.22	0.32	0.805	350	±5%	RoHS	smt	0-22	0-32	0-805	350	%c2%b15	rohs	sml32
SML32-220J	SMT	0.22	0.32	0.805	350	±5%	Pb	smt	0-22	0-32	0-805	350	%c2%b15	pb	sml32
SML32-220GLF	SMT	0.22	0.32	0.805	350	±2%	RoHS	smt	0-22	0-32	0-805	350	%c2%b12	rohs	sml32
SML32-220G	SMT	0.22	0.32	0.805	350	±2%	Pb	smt	0-22	0-32	0-805	350	%c2%b12	pb	sml32
SML32-180MLF	SMT	0.18	0.28	0.86	400	±20%	RoHS	smt	0-18	0-28	0-86	400	%c2%b120	rohs	sml32
SML32-180M	SMT	0.18	0.28	0.86	400	±20%	Pb	smt	0-18	0-28	0-86	400	%c2%b120	pb	sml32
SML32-180KLF	SMT	0.18	0.28	0.86	400	±10%	RoHS	smt	0-18	0-28	0-86	400	%c2%b110	rohs	sml32
SML32-180K	SMT	0.18	0.28	0.86	400	±10%	Pb	smt	0-18	0-28	0-86	400	%c2%b110	pb	sml32
SML32-180JLF	SMT	0.18	0.28	0.86	400	±5%	RoHS	smt	0-18	0-28	0-86	400	%c2%b15	rohs	sml32
SML32-180J	SMT	0.18	0.28	0.86	400	±5%	Pb	smt	0-18	0-28	0-86	400	%c2%b15	pb	sml32
SML32-180GLF	SMT	0.18	0.28	0.86	400	±2%	RoHS	smt	0-18	0-28	0-86	400	%c2%b12	rohs	sml32
SML32-180G	SMT	0.18	0.28	0.86	400	±2%	Pb	smt	0-18	0-28	0-86	400	%c2%b12	pb	sml32
SML32-150MLF	SMT	0.15	0.25	0.91	450	±20%	RoHS	smt	0-15	0-25	0-91	450	%c2%b120	rohs	sml32
SML32-150M	SMT	0.15	0.25	0.91	450	±20%	Pb	smt	0-15	0-25	0-91	450	%c2%b120	pb	sml32
SML32-150KLF	SMT	0.15	0.25	0.91	450	±10%	RoHS	smt	0-15	0-25	0-91	450	%c2%b110	rohs	sml32
SML32-150K	SMT	0.15	0.25	0.91	450	±10%	Pb	smt	0-15	0-25	0-91	450	%c2%b110	pb	sml32
SML32-150JLF	SMT	0.15	0.25	0.91	450	±5%	RoHS	smt	0-15	0-25	0-91	450	%c2%b15	rohs	sml32
SML32-150J	SMT	0.15	0.25	0.91	450	±5%	Pb	smt	0-15	0-25	0-91	450	%c2%b15	pb	sml32
SML32-150GLF	SMT	0.15	0.25	0.91	450	±2%	RoHS	smt	0-15	0-25	0-91	450	%c2%b12	rohs	sml32
SML32-150G	SMT	0.15	0.25	0.91	450	±2%	Pb	smt	0-15	0-25	0-91	450	%c2%b12	pb	sml32
SML32-120MLF	SMT	0.12	0.22	0.971	500	±20%	RoHS	smt	0-12	0-22	0-971	500	%c2%b120	rohs	sml32
SML32-120M	SMT	0.12	0.22	0.971	500	±20%	Pb	smt	0-12	0-22	0-971	500	%c2%b120	pb	sml32
SML32-120KLF	SMT	0.12	0.22	0.971	500	±10%	RoHS	smt	0-12	0-22	0-971	500	%c2%b110	rohs	sml32
SML32-120K	SMT	0.12	0.22	0.971	500	±10%	Pb	smt	0-12	0-22	0-971	500	%c2%b110	pb	sml32
SML32-120JLF	SMT	0.12	0.22	0.971	500	±5%	RoHS	smt	0-12	0-22	0-971	500	%c2%b15	rohs	sml32
SML32-120J	SMT	0.12	0.22	0.971	500	±5%	Pb	smt	0-12	0-22	0-971	500	%c2%b15	pb	sml32
SML32-120GLF	SMT	0.12	0.22	0.971	500	±2%	RoHS	smt	0-12	0-22	0-971	500	%c2%b12	rohs	sml32
SML32-120G	SMT	0.12	0.22	0.971	500	±2%	Pb	smt	0-12	0-22	0-971	500	%c2%b12	pb	sml32
SML32-100MLF	SMT	0.1	0.44	0.525	700	±20%	RoHS	smt	0-1	0-44	0-525	700	%c2%b120	rohs	sml32
SML32-100M	SMT	0.1	0.44	0.525	700	±20%	Pb	smt	0-1	0-44	0-525	700	%c2%b120	pb	sml32
SML32-100KLF	SMT	0.1	0.44	0.525	700	±10%	RoHS	smt	0-1	0-44	0-525	700	%c2%b110	rohs	sml32
SML32-100K	SMT	0.1	0.44	0.525	700	±10%	Pb	smt	0-1	0-44	0-525	700	%c2%b110	pb	sml32
SML32-100JLF	SMT	0.1	0.44	0.525	700	±5%	RoHS	smt	0-1	0-44	0-525	700	%c2%b15	rohs	sml32
SML32-100J	SMT	0.1	0.44	0.525	700	±5%	Pb	smt	0-1	0-44	0-525	700	%c2%b15	pb	sml32
SML32-100GLF	SMT	0.1	0.44	0.525	700	±2%	RoHS	smt	0-1	0-44	0-525	700	%c2%b12	rohs	sml32
SML32-100G	SMT	0.1	0.44	0.525	700	±2%	Pb	smt	0-1	0-44	0-525	700	%c2%b12	pb	sml32
SML32-082MLF	SMT	0.082	0.4	0.551	900	±20%	RoHS	smt	0-082	0-4	0-551	900	%c2%b120	rohs	sml32
SML32-082M	SMT	0.082	0.4	0.551	900	±20%	Pb	smt	0-082	0-4	0-551	900	%c2%b120	pb	sml32
SML32-082KLF	SMT	0.082	0.4	0.551	900	±10%	RoHS	smt	0-082	0-4	0-551	900	%c2%b110	rohs	sml32
SML32-082K	SMT	0.082	0.4	0.551	900	±10%	Pb	smt	0-082	0-4	0-551	900	%c2%b110	pb	sml32
SML32-082JLF	SMT	0.082	0.4	0.551	900	±5%	RoHS	smt	0-082	0-4	0-551	900	%c2%b15	rohs	sml32
SML32-082J	SMT	0.082	0.4	0.551	900	±5%	Pb	smt	0-082	0-4	0-551	900	%c2%b15	pb	sml32
SML32-082GLF	SMT	0.082	0.4	0.551	900	±2%	RoHS	smt	0-082	0-4	0-551	900	%c2%b12	rohs	sml32
SML32-082G	SMT	0.082	0.4	0.551	900	±2%	Pb	smt	0-082	0-4	0-551	900	%c2%b12	pb	sml32
SML32-068MLF	SMT	0.068	0.36	0.58	1000	±20%	RoHS	smt	0-068	0-36	0-58	1000	%c2%b120	rohs	sml32
SML32-068M	SMT	0.068	0.36	0.58	1000	±20%	Pb	smt	0-068	0-36	0-58	1000	%c2%b120	pb	sml32
SML32-068KLF	SMT	0.068	0.36	0.58	1000	±10%	RoHS	smt	0-068	0-36	0-58	1000	%c2%b110	rohs	sml32
SML32-068K	SMT	0.068	0.36	0.58	1000	±10%	Pb	smt	0-068	0-36	0-58	1000	%c2%b110	pb	sml32
SML32-068JLF	SMT	0.068	0.36	0.58	1000	±5%	RoHS	smt	0-068	0-36	0-58	1000	%c2%b15	rohs	sml32
SML32-068J	SMT	0.068	0.36	0.58	1000	±5%	Pb	smt	0-068	0-36	0-58	1000	%c2%b15	pb	sml32
SML32-068GLF	SMT	0.068	0.36	0.58	1000	±2%	RoHS	smt	0-068	0-36	0-58	1000	%c2%b12	rohs	sml32
SML32-068G	SMT	0.068	0.36	0.58	1000	±2%	Pb	smt	0-068	0-36	0-58	1000	%c2%b12	pb	sml32
SML32-056MLF	SMT	0.056	0.33	0.606	1100	±20%	RoHS	smt	0-056	0-33	0-606	1100	%c2%b120	rohs	sml32
SML32-056M	SMT	0.056	0.33	0.606	1100	±20%	Pb	smt	0-056	0-33	0-606	1100	%c2%b120	pb	sml32
SML32-056KLF	SMT	0.056	0.33	0.606	1100	±10%	RoHS	smt	0-056	0-33	0-606	1100	%c2%b110	rohs	sml32
SML32-056K	SMT	0.056	0.33	0.606	1100	±10%	Pb	smt	0-056	0-33	0-606	1100	%c2%b110	pb	sml32
SML32-056JLF	SMT	0.056	0.33	0.606	1100	±5%	RoHS	smt	0-056	0-33	0-606	1100	%c2%b15	rohs	sml32
SML32-056J	SMT	0.056	0.33	0.606	1100	±5%	Pb	smt	0-056	0-33	0-606	1100	%c2%b15	pb	sml32
SML32-056GLF	SMT	0.056	0.33	0.606	1100	±2%	RoHS	smt	0-056	0-33	0-606	1100	%c2%b12	rohs	sml32
SML32-056G	SMT	0.056	0.33	0.606	1100	±2%	Pb	smt	0-056	0-33	0-606	1100	%c2%b12	pb	sml32
SML32-047MLF	SMT	0.047	0.27	0.636	1200	±20%	RoHS	smt	0-047	0-27	0-636	1200	%c2%b120	rohs	sml32
SML32-047M	SMT	0.047	0.27	0.636	1200	±20%	Pb	smt	0-047	0-27	0-636	1200	%c2%b120	pb	sml32
SML32-047KLF	SMT	0.047	0.27	0.636	1200	±10%	RoHS	smt	0-047	0-27	0-636	1200	%c2%b110	rohs	sml32
SML32-047K	SMT	0.047	0.27	0.636	1200	±10%	Pb	smt	0-047	0-27	0-636	1200	%c2%b110	pb	sml32
SML32-047JLF	SMT	0.047	0.27	0.636	1200	±5%	RoHS	smt	0-047	0-27	0-636	1200	%c2%b15	rohs	sml32
SML32-047J	SMT	0.047	0.27	0.636	1200	±5%	Pb	smt	0-047	0-27	0-636	1200	%c2%b15	pb	sml32
SML32-047GLF	SMT	0.047	0.27	0.636	1200	±2%	RoHS	smt	0-047	0-27	0-636	1200	%c2%b12	rohs	sml32
SML32-047G	SMT	0.047	0.27	0.636	1200	±2%	Pb	smt	0-047	0-27	0-636	1200	%c2%b12	pb	sml32
SML32-039MLF	SMT	0.039	0.27	0.67	1300	±20%	RoHS	smt	0-039	0-27	0-67	1300	%c2%b120	rohs	sml32
SML32-039M	SMT	0.039	0.27	0.67	1300	±20%	Pb	smt	0-039	0-27	0-67	1300	%c2%b120	pb	sml32
SML32-039KLF	SMT	0.039	0.27	0.67	1300	±10%	RoHS	smt	0-039	0-27	0-67	1300	%c2%b110	rohs	sml32
SML32-039K	SMT	0.039	0.27	0.67	1300	±10%	Pb	smt	0-039	0-27	0-67	1300	%c2%b110	pb	sml32
SML32-039JLF	SMT	0.039	0.27	0.67	1300	±5%	RoHS	smt	0-039	0-27	0-67	1300	%c2%b15	rohs	sml32
SML32-039J	SMT	0.039	0.27	0.67	1300	±5%	Pb	smt	0-039	0-27	0-67	1300	%c2%b15	pb	sml32
SML32-039GLF	SMT	0.039	0.27	0.67	1300	±2%	RoHS	smt	0-039	0-27	0-67	1300	%c2%b12	rohs	sml32
SML32-039G	SMT	0.039	0.27	0.67	1300	±2%	Pb	smt	0-039	0-27	0-67	1300	%c2%b12	pb	sml32
SML32-033MLF	SMT	0.033	0.24	0.711	1400	±20%	RoHS	smt	0-033	0-24	0-711	1400	%c2%b120	rohs	sml32
SML32-033M	SMT	0.033	0.24	0.711	1400	±20%	Pb	smt	0-033	0-24	0-711	1400	%c2%b120	pb	sml32
SML32-033KLF	SMT	0.033	0.24	0.711	1400	±10%	RoHS	smt	0-033	0-24	0-711	1400	%c2%b110	rohs	sml32
SML32-033K	SMT	0.033	0.24	0.711	1400	±10%	Pb	smt	0-033	0-24	0-711	1400	%c2%b110	pb	sml32
SML32-033JLF	SMT	0.033	0.24	0.711	1400	±5%	RoHS	smt	0-033	0-24	0-711	1400	%c2%b15	rohs	sml32
SML32-033J	SMT	0.033	0.24	0.711	1400	±5%	Pb	smt	0-033	0-24	0-711	1400	%c2%b15	pb	sml32
SML32-033GLF	SMT	0.033	0.24	0.711	1400	±2%	RoHS	smt	0-033	0-24	0-711	1400	%c2%b12	rohs	sml32
SML32-033G	SMT	0.033	0.24	0.711	1400	±2%	Pb	smt	0-033	0-24	0-711	1400	%c2%b12	pb	sml32
SML32-027MLF	SMT	0.027	0.22	0.743	1500	±20%	RoHS	smt	0-027	0-22	0-743	1500	%c2%b120	rohs	sml32
SML32-027M	SMT	0.027	0.22	0.743	1500	±20%	Pb	smt	0-027	0-22	0-743	1500	%c2%b120	pb	sml32
SML32-027KLF	SMT	0.027	0.22	0.743	1500	±10%	RoHS	smt	0-027	0-22	0-743	1500	%c2%b110	rohs	sml32
SML32-027K	SMT	0.027	0.22	0.743	1500	±10%	Pb	smt	0-027	0-22	0-743	1500	%c2%b110	pb	sml32
SML32-027JLF	SMT	0.027	0.22	0.743	1500	±5%	RoHS	smt	0-027	0-22	0-743	1500	%c2%b15	rohs	sml32
SML32-027J	SMT	0.027	0.22	0.743	1500	±5%	Pb	smt	0-027	0-22	0-743	1500	%c2%b15	pb	sml32
SML32-027GLF	SMT	0.027	0.22	0.743	1500	±2%	RoHS	smt	0-027	0-22	0-743	1500	%c2%b12	rohs	sml32
SML32-027G	SMT	0.027	0.22	0.743	1500	±2%	Pb	smt	0-027	0-22	0-743	1500	%c2%b12	pb	sml32
SML32-022MLF	SMT	0.022	0.2	0.779	1700	±20%	RoHS	smt	0-022	0-2	0-779	1700	%c2%b120	rohs	sml32
SML32-022M	SMT	0.022	0.2	0.779	1700	±20%	Pb	smt	0-022	0-2	0-779	1700	%c2%b120	pb	sml32
SML32-022KLF	SMT	0.022	0.2	0.779	1700	±10%	RoHS	smt	0-022	0-2	0-779	1700	%c2%b110	rohs	sml32
SML32-022K	SMT	0.022	0.2	0.779	1700	±10%	Pb	smt	0-022	0-2	0-779	1700	%c2%b110	pb	sml32
SML32-022JLF	SMT	0.022	0.2	0.779	1700	±5%	RoHS	smt	0-022	0-2	0-779	1700	%c2%b15	rohs	sml32
SML32-022J	SMT	0.022	0.2	0.779	1700	±5%	Pb	smt	0-022	0-2	0-779	1700	%c2%b15	pb	sml32
SML32-022GLF	SMT	0.022	0.2	0.779	1700	±2%	RoHS	smt	0-022	0-2	0-779	1700	%c2%b12	rohs	sml32
SML32-022G	SMT	0.022	0.2	0.779	1700	±2%	Pb	smt	0-022	0-2	0-779	1700	%c2%b12	pb	sml32
SML32-018MLF	SMT	0.018	0.18	0.821	1800	±20%	RoHS	smt	0-018	0-18	0-821	1800	%c2%b120	rohs	sml32
SML32-018M	SMT	0.018	0.18	0.821	1800	±20%	Pb	smt	0-018	0-18	0-821	1800	%c2%b120	pb	sml32
SML32-018KLF	SMT	0.018	0.18	0.821	1800	±10%	RoHS	smt	0-018	0-18	0-821	1800	%c2%b110	rohs	sml32
SML32-018K	SMT	0.018	0.18	0.821	1800	±10%	Pb	smt	0-018	0-18	0-821	1800	%c2%b110	pb	sml32
SML32-018JLF	SMT	0.018	0.18	0.821	1800	±5%	RoHS	smt	0-018	0-18	0-821	1800	%c2%b15	rohs	sml32
SML32-018J	SMT	0.018	0.18	0.821	1800	±5%	Pb	smt	0-018	0-18	0-821	1800	%c2%b15	pb	sml32
SML32-018GLF	SMT	0.018	0.18	0.821	1800	±2%	RoHS	smt	0-018	0-18	0-821	1800	%c2%b12	rohs	sml32
SML32-018G	SMT	0.018	0.18	0.821	1800	±2%	Pb	smt	0-018	0-18	0-821	1800	%c2%b12	pb	sml32
SML32-015MLF	SMT	0.015	0.16	0.871	1800	±20%	RoHS	smt	0-015	0-16	0-871	1800	%c2%b120	rohs	sml32
SML32-015M	SMT	0.015	0.16	0.871	1800	±20%	Pb	smt	0-015	0-16	0-871	1800	%c2%b120	pb	sml32
SML32-015KLF	SMT	0.015	0.16	0.871	1800	±10%	RoHS	smt	0-015	0-16	0-871	1800	%c2%b110	rohs	sml32
SML32-015K	SMT	0.015	0.16	0.871	1800	±10%	Pb	smt	0-015	0-16	0-871	1800	%c2%b110	pb	sml32
SML32-015JLF	SMT	0.015	0.16	0.871	1800	±5%	RoHS	smt	0-015	0-16	0-871	1800	%c2%b15	rohs	sml32
SML32-015J	SMT	0.015	0.16	0.871	1800	±5%	Pb	smt	0-015	0-16	0-871	1800	%c2%b15	pb	sml32
SML32-015GLF	SMT	0.015	0.16	0.871	1800	±2%	RoHS	smt	0-015	0-16	0-871	1800	%c2%b12	rohs	sml32
SML32-015G	SMT	0.015	0.16	0.871	1800	±2%	Pb	smt	0-015	0-16	0-871	1800	%c2%b12	pb	sml32
SML32-012MLF	SMT	0.012	0.14	0.931	1800	±20%	RoHS	smt	0-012	0-14	0-931	1800	%c2%b120	rohs	sml32
SML32-012M	SMT	0.012	0.14	0.931	1800	±20%	Pb	smt	0-012	0-14	0-931	1800	%c2%b120	pb	sml32
SML32-012KLF	SMT	0.012	0.14	0.931	1800	±10%	RoHS	smt	0-012	0-14	0-931	1800	%c2%b110	rohs	sml32
SML32-012K	SMT	0.012	0.14	0.931	1800	±10%	Pb	smt	0-012	0-14	0-931	1800	%c2%b110	pb	sml32
SML32-012JLF	SMT	0.012	0.14	0.931	1800	±5%	RoHS	smt	0-012	0-14	0-931	1800	%c2%b15	rohs	sml32
SML32-012J	SMT	0.012	0.14	0.931	1800	±5%	Pb	smt	0-012	0-14	0-931	1800	%c2%b15	pb	sml32
SML32-012GLF	SMT	0.012	0.14	0.931	1800	±2%	RoHS	smt	0-012	0-14	0-931	1800	%c2%b12	rohs	sml32
SML32-012G	SMT	0.012	0.14	0.931	1800	±2%	Pb	smt	0-012	0-14	0-931	1800	%c2%b12	pb	sml32
SML32-010MLF	SMT	0.01	0.13	0.966	1800	±20%	RoHS	smt	0-01	0-13	0-966	1800	%c2%b120	rohs	sml32
SML32-010M	SMT	0.01	0.13	0.966	1800	±20%	Pb	smt	0-01	0-13	0-966	1800	%c2%b120	pb	sml32
SML32-010KLF	SMT	0.01	0.13	0.966	1800	±10%	RoHS	smt	0-01	0-13	0-966	1800	%c2%b110	rohs	sml32
SML32-010K	SMT	0.01	0.13	0.966	1800	±10%	Pb	smt	0-01	0-13	0-966	1800	%c2%b110	pb	sml32

Notes

Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
MSL Rating: 1
Epoxy-encapsulated for environmental protection and superior strength to withstand all types of reflow soldering
Materials are fungus-inert to meet method 508 of MIL-STD-810H
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Sn63Pb37 (Tin/Lead) for Pb components

Sn/Cu (Tin/Copper) for RoHS components

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C

SML32 SERIES

PARAMETRIC SEARCH

Notes

Environmental

DownloadConical Brochure

Download
Conical Brochure
