Gowanda’s 030AT1002SM is a wirewound toroidal inductor designed for high reliability and performance in electronic applications. Weighing 1.8 grams and measuring 11.18 × 11.05 × 9.14 mm, this component is part of the ATSM series and features surface mount technology (SMT) for easy integration. It is classified as COTS+ grade, ensuring suitability for commercial off-the-shelf applications. With an inductance of 10 µH, a direct current resistance (DCR) of 0.05 Ω, and a self-resonant frequency (SRF) of 35 MHz, it supports a current rating of 2.56 A DC. The inductor can handle incremental current changes of 2200 mA DC at a 10% inductance drop and 3400 mA DC at a 20% drop, with a tolerance of ±10%. It features lead (Pb) termination with a Sn63Pb37 finish and operates within a temperature range of -55°C to +130°C. The component is moisture sensitivity level (MSL) 1 and is available in tape and reel (T&R) packaging for efficient handling and assembly.
| Weight | 1.8 g |
|---|---|
| Dimensions | 11.18 × 11.05 × 9.14 mm |
| Series | ATSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 10 |
| DCR (Ω) | 0.05 |
| SRF (MHz) | 35 |
| Current Rating (A DC) | 2.56 |
| INC I L (Δ10% mA DC) | 2200 |
| INC I L (Δ20% mA DC) | 3400 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |

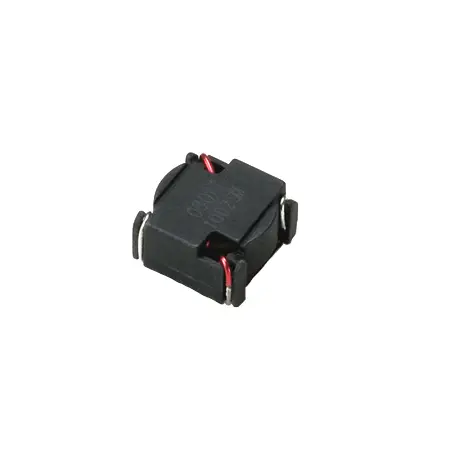

Wirewound Toroidal Inductor
