Gowanda’s 030AT2502VSM is a high-quality Vertical Mount Toroidal Inductor designed for demanding applications. Weighing 1.8 grams and measuring 0.44 × 0.4 × 0.48 mm, this component is part of the ATVSM series and features a surface-mount technology (SMT) for efficient installation. It is classified under the COTS+ application grade, ensuring reliability in commercial off-the-shelf applications. With an inductance of 25 µH, a direct current resistance (DCR) of 0.07 Ω, and a self-resonant frequency (SRF) of 25 MHz, it supports a current rating of 2.16 A DC. The inductor can handle incremental current levels of 1400 mA DC at a 10% increase and 2100 mA DC at a 20% increase, with a tolerance of ±10%. It features a lead-based termination type with a Sn63Pb37 finish, suitable for operating temperatures ranging from -55°C to +125°C. The component is rated at moisture sensitivity level (MSL) 1 and is available in tape and reel (T&R) packaging for streamlined handling and assembly.
| Weight | 1.8 g |
|---|---|
| Dimensions | 0.44 × 0.4 × 0.48 mm |
| Series | ATVSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 25 |
| DCR (Ω) | 0.07 |
| SRF (MHz) | 25 |
| Current Rating (A DC) | 2.16 |
| INC I L (Δ10% mA DC) | 1400 |
| INC I L (Δ20% mA DC) | 2100 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |

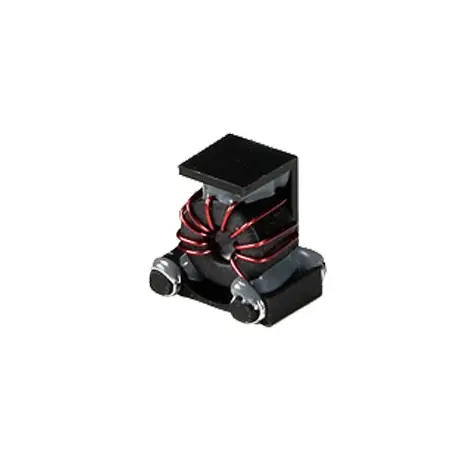

Vertical Mount Toroidal Inductor
