Gowanda’s 030KM2003VSMLF is a high-quality Vertical Style Toroidal Power Inductor designed for demanding applications. Weighing 1.78 grams and measuring 11.18 × 10.16 × 12.2 mm, this inductor is part of the KMVSM series and features an SMT mounting type, making it suitable for compact electronic assemblies. It is a COTS+ grade component, offering an inductance of 200 µH with a DCR of 0.3 Ω and an SRF of 3 MHz. The inductor supports a current rating of 1.04 A DC, with incremental current limits of 170 mA DC for a 10% change and 340 mA DC for a 20% change. It has a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The component operates reliably across a wide temperature range of -55°C to +125°C and has an MSL of 1, ensuring robust performance in various environments. It is available in tape and reel packaging for efficient handling and assembly.
| Weight | 1.78 g |
|---|---|
| Dimensions | 11.18 × 10.16 × 12.2 mm |
| Series | KMVSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 200 |
| DCR (Ω) | 0.3 |
| SRF (MHz) | 3 |
| Current Rating (A DC) | 1.04 |
| INC I L (Δ10% mA DC) | 170 |
| INC I L (Δ20% mA DC) | 340 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |

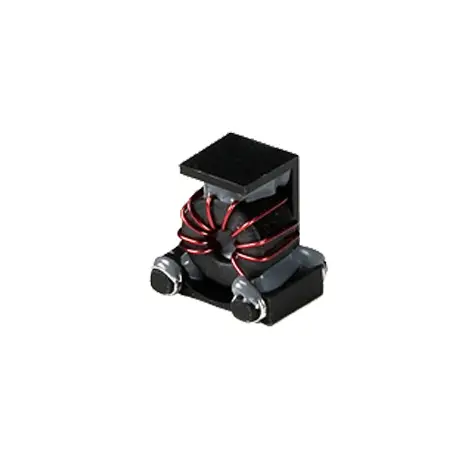

Vertical Style Toroidal Power Inductor
