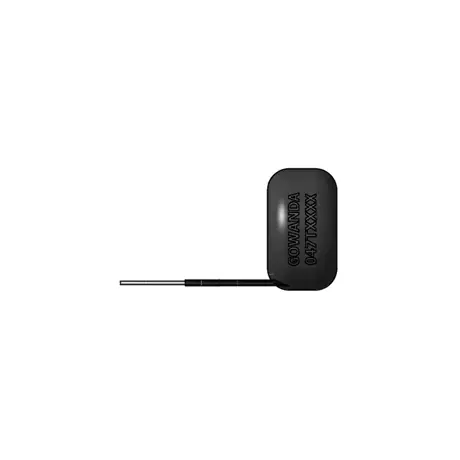

Gowanda’s 047T2007LF is a self-leaded high inductance toroidal inductor, part of the T-Small series, designed for high reliability in electronic applications. With dimensions of 17.78 × 17.78 × 10.16 mm and a weight of 6.3 g, it features a through-hole technology (THT) mounting type and is suitable for COTS+ application grades. This inductor offers an impressive inductance of 2,000,000 µH, a DCR of 575 Ω, and a current rating of 0.011 A DC. It operates at a low frequency with a self-resonant frequency (SRF) of 0.014 MHz and maintains a tolerance of ±2%. The component is RoHS compliant with a Sn100 termination finish and can function within a temperature range of -40°C to +105°C. It has a moisture sensitivity level (MSL) of 1 and is available in bulk packaging.
| Weight | 6.3 g |
|---|---|
| Dimensions | 17.78 × 17.78 × 10.16 mm |
| Series | T-Small |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 2000000 |
| DCR (Ω) | 575 |
| Current Rating (A DC) | 0.011 |
| SRF (MHz) | 0.014 |
| Frequency | Low |
| Tolerance | ±2% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |
Self-Leaded High Inductance Toroidal Inductor
