Gowanda’s 050AT1003VSM is a high-quality Vertical Mount Toroidal Inductor designed for demanding applications. With a compact size of 0.625 × 0.55 × 0.74 mm and a weight of 6 grams, it is part of the ATVSM series and features SMT mounting. This inductor is suitable for COTS+ grade applications, offering an inductance of 100 µH, a DCR of 0.055 Ω, and an SRF of 4 MHz. It supports a current rating of 3.14 A DC, with incremental current levels of 1500 mA DC (Δ10%) and 2200 mA DC (Δ20%). The component has a tolerance of ±10% and utilizes Pb termination with a Sn63Pb37 finish. It operates reliably within a temperature range of -55°C to +125°C, has an MSL of 1, and is available in T&R packaging.
| Weight | 6 g |
|---|---|
| Dimensions | 0.625 × 0.55 × 0.74 mm |
| Series | ATVSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 100 |
| DCR (Ω) | 0.055 |
| SRF (MHz) | 4 |
| Current Rating (A DC) | 3.14 |
| INC I L (Δ10% mA DC) | 1500 |
| INC I L (Δ20% mA DC) | 2200 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |

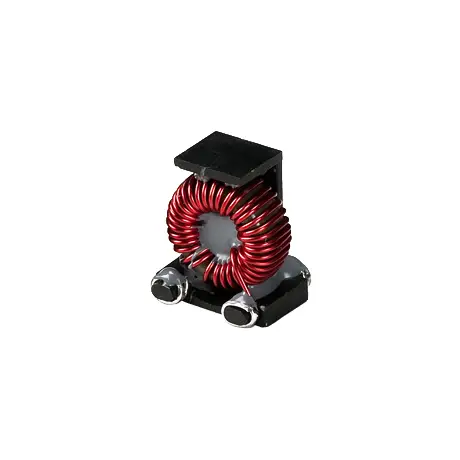

Vertical Mount Toroidal Inductor
