Gowanda’s 050AT1503HCLF is a high-quality horizontal encapsulated toroidal power choke, designed for reliable performance in electronic applications. Weighing 7.5 grams and measuring 19.05 × 19.05 × 10.8 mm, this component is part of the ATHC series and features a surface-mount technology (SMT) for easy integration. It offers an inductance of 150 µH with a direct current resistance (DCR) of 0.1 Ω and a self-resonant frequency (SRF) of 1 MHz. The choke supports a current rating of 2.33 A DC, with incremental current limits of 1200 mA DC at a 10% change and 1800 mA DC at a 20% change. It maintains a tolerance of ±10% and is compliant with RoHS standards, featuring a Sn/Cu termination finish. The component operates efficiently across a wide temperature range of -55°C to +130°C and is classified with a moisture sensitivity level (MSL) of 1, available in bulk packaging.
| Weight | 7.5 g |
|---|---|
| Dimensions | 19.05 × 19.05 × 10.8 mm |
| Series | ATHC |
| Mounting Type | SMT |
| Inductance (µH) | 150 |
| DCR (Ω) | 0.1 |
| SRF (MHz) | 1 |
| Current Rating (A DC) | 2.33 |
| INC I L (Δ10% mA DC) | 1200 |
| INC I L (Δ20% mA DC) | 1800 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

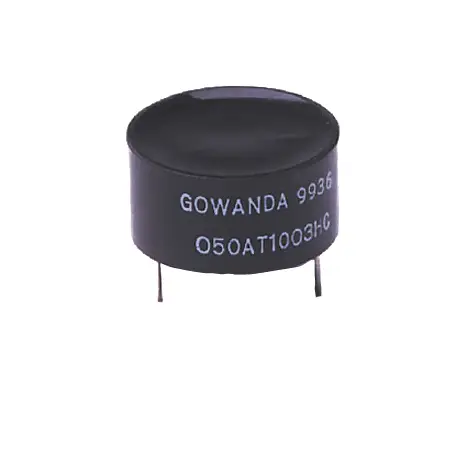

Horizontal Encapsulated Toroidal Power Choke
