Gowanda’s 050AT1503VLF is a high-quality, reliable electronic component designed as a vertical open construction toroidal inductor. It weighs 4.75 grams and measures 15.88 × 15.88 × 7.62 mm, making it suitable for various applications. Part of the AT series, this inductor features through-hole technology (THT) mounting and is graded as COTS+ for commercial off-the-shelf applications. It offers an inductance of 150 µH, a direct current resistance (DCR) of 0.1 Ω, and a self-resonant frequency (SRF) of 2 MHz. The component supports a current rating of 2.33 A DC, with incremental current limits of 1200 mA DC for a 10% change and 1800 mA DC for a 20% change. It has a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The inductor operates efficiently within a temperature range of -55°C to +130°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 4.75 g |
|---|---|
| Dimensions | 15.88 × 15.88 × 7.62 mm |
| Series | AT |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 150 |
| DCR (Ω) | 0.1 |
| SRF (MHz) | 2 |
| Current Rating (A DC) | 2.33 |
| INC I L (Δ10% mA DC) | 1200 |
| INC I L (Δ20% mA DC) | 1800 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

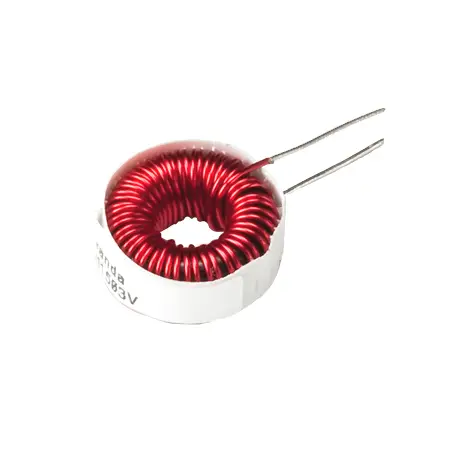

Vertical Open Construction Toroidal inductor
