Gowanda’s 050AT2503VCLF is a high-quality, reliable electronic component designed for demanding applications. This vertical mount encapsulated toroidal choke, part of the ATVC series, features a compact design with dimensions of 19.05 × 10.16 × 19.69 mm and a weight of 6.2 g. It is suitable for through-hole technology (THT) mounting and is classified under the COTS+ application grade, ensuring enhanced performance and reliability. With an inductance of 250 µH, a direct current resistance (DCR) of 0.16 Ω, and a self-resonant frequency (SRF) of 1 MHz, it supports a current rating of 1.84 A DC. The component can handle incremental current levels of 900 mA DC with a 10% inductance change and 1400 mA DC with a 20% change. It offers a tolerance of ±10% and features RoHS-compliant Sn/Cu termination finish. The 050AT2503VCLF operates efficiently across a wide temperature range from -55°C to +130°C, with a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 6.2 g |
|---|---|
| Dimensions | 19.05 × 10.16 × 19.69 mm |
| Series | ATVC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 250 |
| DCR (Ω) | 0.16 |
| SRF (MHz) | 1 |
| Current Rating (A DC) | 1.84 |
| INC I L (Δ10% mA DC) | 900 |
| INC I L (Δ20% mA DC) | 1400 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

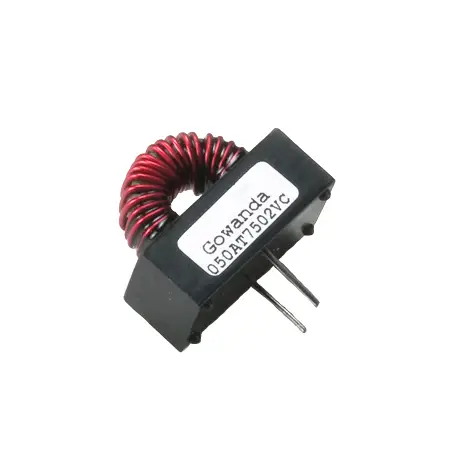

Vertical Mount Encapsulated Toroidal Choke
