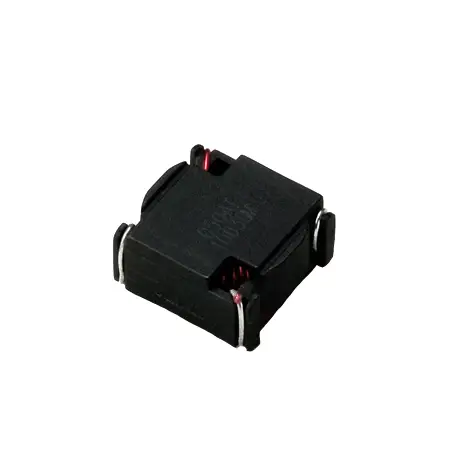

Gowanda’s 050AT7502SM is a high-quality wirewound toroidal inductor designed for demanding applications, featuring a compact size with dimensions of 17.78 × 17.02 × 10.28 mm and a weight of 6 grams. Part of the ATSM series, this surface-mount technology (SMT) component is crafted for COTS+ application grade, ensuring reliability and performance. It offers an inductance of 75 µH with a direct current resistance (DCR) of 0.045 Ω and a self-resonant frequency (SRF) of 5 MHz. The inductor supports a current rating of 3.47 A DC, with incremental current limits of 1600 mA DC for a 10% change and 2500 mA DC for a 20% change. It features a tolerance of ±10% and utilizes a Pb termination type with a Sn63Pb37 finish. Designed to operate in extreme temperatures ranging from -55°C to +130°C, it boasts a moisture sensitivity level (MSL) of 1 and is available in tape and reel (T&R) packaging for efficient handling and installation.
| Weight | 6 g |
|---|---|
| Dimensions | 17.78 × 17.02 × 10.28 mm |
| Series | ATSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 75 |
| DCR (Ω) | 0.045 |
| SRF (MHz) | 5 |
| Current Rating (A DC) | 3.47 |
| INC I L (Δ10% mA DC) | 1600 |
| INC I L (Δ20% mA DC) | 2500 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |
Wirewound Toroidal Inductor
