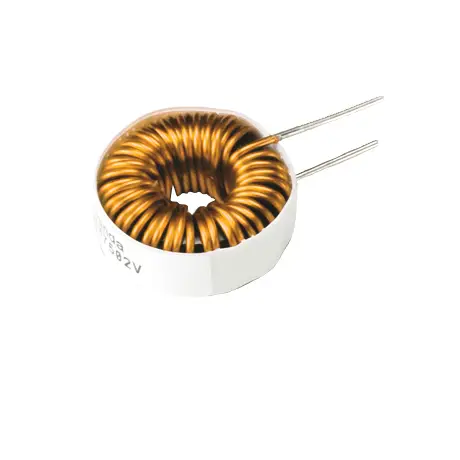

Gowanda’s 050HT8201VLF is a high-quality vertical toroidal inductor designed for demanding applications. Weighing 6 grams and measuring 16.76 × 16.76 × 9.14 mm, this component is part of the HT series and features through-hole technology (THT) for mounting. It is classified under the COTS+ application grade, ensuring reliability in commercial off-the-shelf applications. The inductor offers an inductance of 8.2 µH, a direct current resistance (DCR) of 18 Ω, and a self-resonant frequency (SRF) of 40 MHz. It supports a current rating of 6.9 A DC, with incremental current limits of 6600 mA DC for a 10% change and 9900 mA DC for a 20% change. The component has a tolerance of ±10% and features RoHS-compliant Sn/Cu termination finish. It operates efficiently across a wide temperature range from -55°C to +200°C and has a moisture sensitivity level (MSL) of 1, making it suitable for various environmental conditions. The inductor is available in bulk packaging.
| Weight | 6 g |
|---|---|
| Dimensions | 16.76 × 16.76 × 9.14 mm |
| Series | HT |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 8.2 |
| DCR (Ω) | 18 |
| SRF (MHz) | 40 |
| Current Rating (A DC) | 6.9 |
| INC I L (Δ10% mA DC) | 6600 |
| INC I L (Δ20% mA DC) | 9900 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +200°C |
| MSL | 1 |
| Packaging | Bulk |
Vertical Toroidal Inductor
