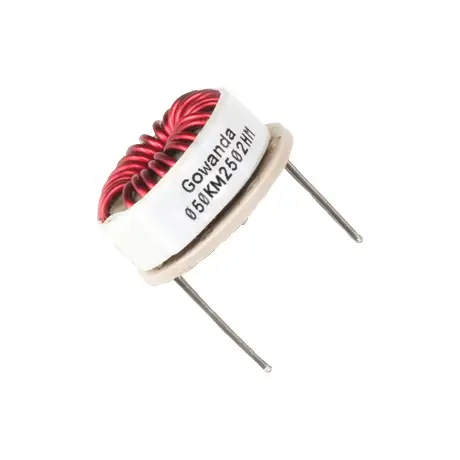

Gowanda’s 050KM2502HMLF is a high-efficiency horizontal mount standoff toroidal choke, part of the KMHM series, designed for surface mount technology (SMT) applications. It is a COTS+ grade component, offering an inductance of 25 µH with a direct current resistance (DCR) of 0.02 Ω and a self-resonant frequency (SRF) of 10 MHz. The choke supports a current rating of 5.2 A DC, with incremental current levels of 1000 mA DC for a 10% inductance change and 1900 mA DC for a 20% change. It features a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The component is designed to operate within a temperature range of -55°C to +130°C and has a moisture sensitivity level (MSL) of 1, making it suitable for various demanding environments. The product is available in bulk packaging, weighing 7 grams with dimensions of 16.76 × 16.76 × 10.67 mm.
| Weight | 7 g |
|---|---|
| Dimensions | 16.76 × 16.76 × 10.67 mm |
| Series | KMHM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 25 |
| DCR (Ω) | 0.02 |
| SRF (MHz) | 10 |
| Current Rating (A DC) | 5.2 |
| INC I L (Δ10% mA DC) | 1000 |
| INC I L (Δ20% mA DC) | 1900 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |
Horizontal Mount High Efficiency Standoff Toroidal Choke
