Gowanda’s 050KM5002H is a high-quality, reliable horizontal open construction toroidal inductor, designed for demanding applications. With a compact size of 15.88 × 15.88 × 7.62 mm and a weight of 5 grams, it is part of the KM series and features through-hole technology (THT) for easy mounting. This component is suitable for COTS+ grade applications, offering an inductance of 50 µH, a DCR of 0.035 Ω, and a self-resonant frequency (SRF) of 7 MHz. It supports a current rating of 3.93 A DC, with incremental current limits of 700 mA DC for a 10% inductance change and 1300 mA DC for a 20% change. The inductor has a tolerance of ±10% and uses Pb termination with a Sn63Pb37 finish. It operates efficiently across a wide temperature range from -55°C to +130°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 5 g |
|---|---|
| Dimensions | 15.88 × 15.88 × 7.62 mm |
| Series | KM |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 50 |
| DCR (Ω) | 0.035 |
| SRF (MHz) | 7 |
| Current Rating (A DC) | 3.93 |
| INC I L (Δ10% mA DC) | 700 |
| INC I L (Δ20% mA DC) | 1300 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

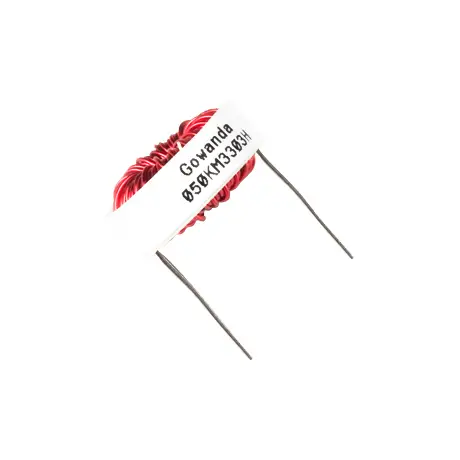

Horizontal Open Construction Toroidal inductor
