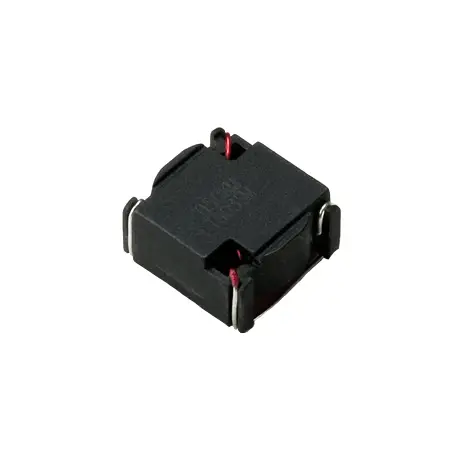

Gowanda’s 050KM7502SMLF is a high-quality Wirewound Toroidal Inductor designed for demanding applications. Weighing 6 grams and measuring 17.78 × 17.02 × 10.28 mm, this inductor is part of the KMSM series and features an SMT mounting type. It is suitable for COTS+ application grades, offering an inductance of 75 µH with a DCR of 0.045 Ω and an SRF of 5 MHz. The inductor supports a current rating of 3.47 A DC, with incremental current levels of 600 mA DC for a 10% change and 1100 mA DC for a 20% change. It has a tolerance of ±10% and is RoHS compliant with Sn/Cu termination finish. The operating temperature ranges from -55°C to +130°C, with an MSL of 1, and it is available in T&R packaging.
| Weight | 6 g |
|---|---|
| Dimensions | 17.78 × 17.02 × 10.28 mm |
| Series | KMSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 75 |
| DCR (Ω) | 0.045 |
| SRF (MHz) | 5 |
| Current Rating (A DC) | 3.47 |
| INC I L (Δ10% mA DC) | 600 |
| INC I L (Δ20% mA DC) | 1100 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |
Wirewound Toroidal Inductor
