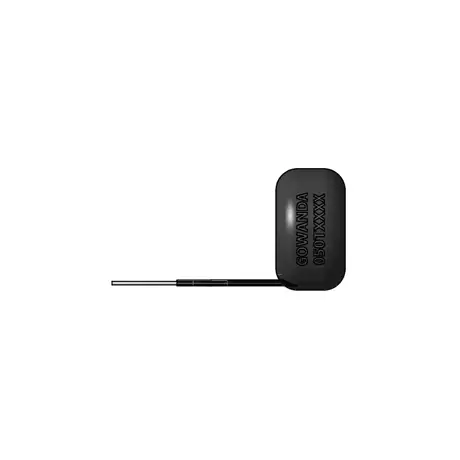

Gowanda’s 050T5004 is a self-leaded high inductance toroidal inductor, part of the T-Small series, designed for medium frequency applications. With dimensions of 17.78 × 17.78 × 10.16 mm and a weight of 5.7 g, it features a through-hole mounting type (THT) and is suitable for COTS+ application grades. The inductor offers an inductance of 5000 µH, a DCR of 2.5 Ω, and a current rating of 0.235 A DC, with a self-resonant frequency (SRF) of 0.35 MHz. It has a tolerance of ±2% and utilizes Pb termination with a Sn63Pb37 finish. The component operates within a temperature range of -40°C to +105°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 5.7 g |
|---|---|
| Dimensions | 17.78 × 17.78 × 10.16 mm |
| Series | T-Small |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 5000 |
| DCR (Ω) | 2.5 |
| Current Rating (A DC) | 0.235 |
| SRF (MHz) | 0.35 |
| Frequency | Medium |
| Tolerance | ±2% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |
Self-Leaded High Inductance Toroidal Inductor
