Gowanda’s 051T1004 is a self-leaded high inductance toroidal inductor, part of the T-Small series, designed for high-frequency applications. It features a compact size with dimensions of 17.78 × 17.78 × 10.16 mm and weighs 5.8 grams. This through-hole technology (THT) component is suitable for commercial off-the-shelf plus (COTS+) applications, offering an inductance of 1000 µH with a tolerance of ±2%. It has a direct current resistance (DCR) of 1.3 Ω and a current rating of 0.38 A DC, with a self-resonant frequency (SRF) of 0.85 MHz. The inductor operates efficiently within a temperature range of -40°C to +105°C and is rated at moisture sensitivity level (MSL) 1. It features a lead-based termination type with a Sn63Pb37 finish and is available in bulk packaging.
| Weight | 5.8 g |
|---|---|
| Dimensions | 17.78 × 17.78 × 10.16 mm |
| Series | T-Small |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 1000 |
| DCR (Ω) | 1.3 |
| Current Rating (A DC) | 0.38 |
| SRF (MHz) | 0.85 |
| Frequency | High |
| Tolerance | ±2% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |

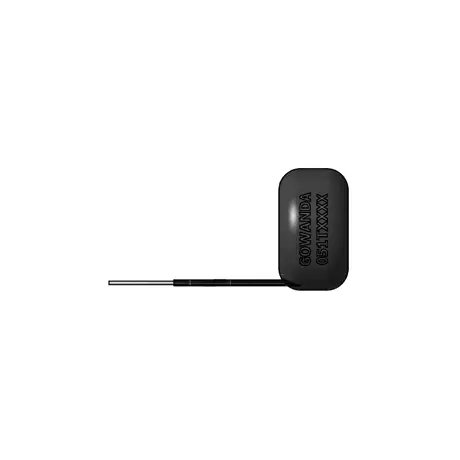

Self-Leaded High Inductance Toroidal Inductor
