Gowanda’s 059AT5003VLF is a high-quality, reliable electronic component designed for demanding applications. This vertical open construction toroidal inductor, part of the AT series, features a weight of 22 grams and dimensions of 29.21 × 29.21 × 12.07 mm. It is tailored for through-hole technology (THT) mounting and is classified under the COTS+ application grade, ensuring enhanced performance and reliability. With an inductance of 500 µH, a direct current resistance (DCR) of 0.16 Ω, and a self-resonant frequency (SRF) of 0.8 MHz, it supports a current rating of 2.6 A DC. The inductor can handle incremental current levels of 2700 mA DC with a 10% inductance change and 3800 mA DC with a 20% change, maintaining a tolerance of ±10%. It features RoHS-compliant termination with a Sn/Cu finish and operates efficiently across a temperature range of -55°C to +130°C. With a moisture sensitivity level (MSL) of 1, it is packaged in bulk, making it a versatile choice for various electronic applications.
| Weight | 22 g |
|---|---|
| Dimensions | 29.21 × 29.21 × 12.07 mm |
| Series | AT |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 500 |
| DCR (Ω) | 0.16 |
| SRF (MHz) | 0.8 |
| Current Rating (A DC) | 2.6 |
| INC I L (Δ10% mA DC) | 2700 |
| INC I L (Δ20% mA DC) | 3800 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

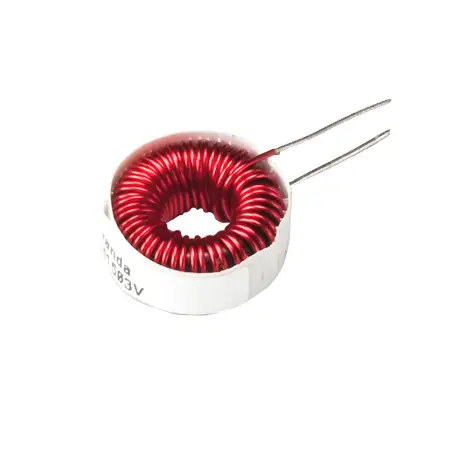

Vertical Open Construction Toroidal inductor
