Gowanda’s 059KM2502HC is a high-quality, reliable horizontal mount potted toroidal inductor designed for demanding applications. With a weight of 33 grams and dimensions of 31.75 × 31.75 × 16.51 mm, this inductor is part of the KMHC series and features through-hole technology (THT) mounting. It is suitable for COTS+ application grades, offering an inductance of 25 µH and a direct current resistance (DCR) of 0.011 Ω. The inductor supports a self-resonant frequency (SRF) of 5 MHz and a current rating of 9.8 A DC, with incremental current levels of 4700 mA DC for a 10% change and 8300 mA DC for a 20% change. It has a tolerance of ±10% and uses Pb termination with a Sn63Pb37 finish. The operating temperature range is from -55°C to +130°C, and it has a moisture sensitivity level (MSL) of 1, making it suitable for bulk packaging.
| Weight | 33 g |
|---|---|
| Dimensions | 31.75 × 31.75 × 16.51 mm |
| Series | KMHC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 25 |
| DCR (Ω) | 0.011 |
| SRF (MHz) | 5 |
| Current Rating (A DC) | 9.8 |
| INC I L (Δ10% mA DC) | 4700 |
| INC I L (Δ20% mA DC) | 8300 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

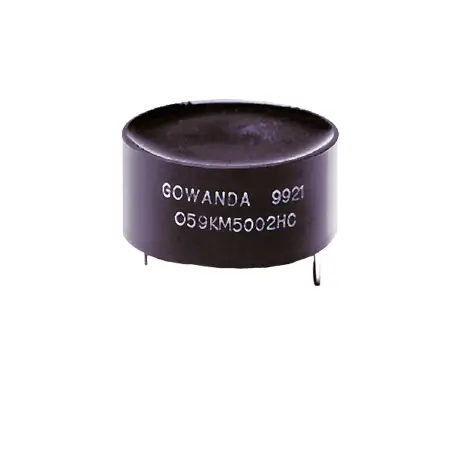

Horizontal Mount Potted Toroidal Inductor
