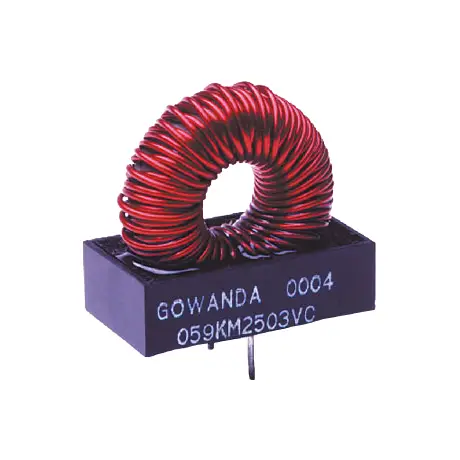

Gowanda’s 059KM2502VC is a high-quality, reliable vertical mount potted toroidal inductor designed for demanding applications. Weighing 28 grams and measuring 30.73 × 17.4 × 29.85 mm, this inductor is part of the KMVC series and features a through-hole technology (THT) mounting type. It is suitable for COTS+ application grades, offering an inductance of 25 µH with a direct current resistance (DCR) of 0.011 Ω and a self-resonant frequency (SRF) of 8 MHz. The inductor supports a current rating of 9.8 A DC, with incremental current levels of 4700 mA DC for a 10% change and 8300 mA DC for a 20% change. It has a tolerance of ±10% and uses lead (Pb) termination with a Sn63Pb37 finish. The operating temperature ranges from -55°C to +130°C, with a moisture sensitivity level (MSL) of 1, and it is available in bulk packaging.
| Weight | 28 g |
|---|---|
| Dimensions | 30.73 × 17.4 × 29.85 mm |
| Series | KMVC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 25 |
| DCR (Ω) | 0.011 |
| SRF (MHz) | 8 |
| Current Rating (A DC) | 9.8 |
| INC I L (Δ10% mA DC) | 4700 |
| INC I L (Δ20% mA DC) | 8300 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

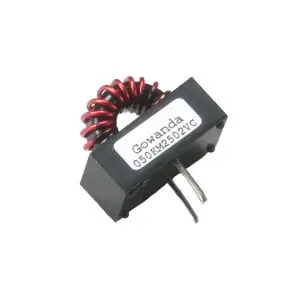

Vertical Mount Potted Toroidal Inductor
