Gowanda’s 059KM5003VLF is a high-quality vertical open construction toroidal inductor designed for demanding applications. With a weight of 22 grams and dimensions of 29.21 × 29.21 × 12.07 mm, this inductor is part of the KM series and features through-hole technology (THT) for mounting. It is suitable for COTS+ application grades, offering an inductance of 500 µH, a direct current resistance (DCR) of 0.24 Ω, and a self-resonant frequency (SRF) of 0.6 MHz. The inductor supports a current rating of 2.1 A DC, with incremental current levels of 900 mA DC for a 10% inductance change and 1600 mA DC for a 20% change. It has a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The component operates efficiently within a temperature range of -55°C to +130°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 22 g |
|---|---|
| Dimensions | 29.21 × 29.21 × 12.07 mm |
| Series | KM |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 500 |
| DCR (Ω) | 0.24 |
| SRF (MHz) | 0.6 |
| Current Rating (A DC) | 2.1 |
| INC I L (Δ10% mA DC) | 900 |
| INC I L (Δ20% mA DC) | 1600 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

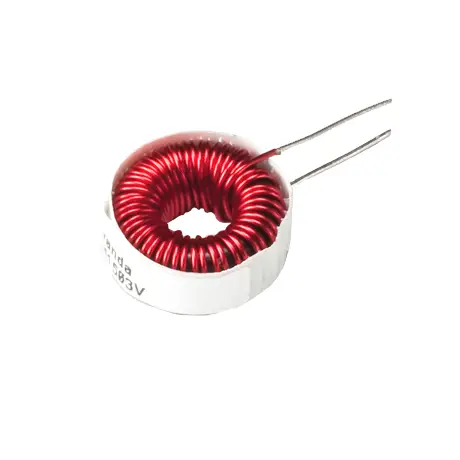

Vertical Open Construction Toroidal inductor
