Gowanda’s 059KM7502H is a high-quality, reliable horizontal open construction toroidal inductor designed for demanding applications. Weighing 23 grams and measuring 27.94 × 27.94 × 12.07 mm, this inductor is part of the KM series and features through-hole technology (THT) mounting. It is suitable for COTS+ grade applications, offering an inductance of 75 µH with a direct current resistance (DCR) of 0.03 Ω and a self-resonant frequency (SRF) of 3 MHz. The inductor supports a current rating of 5.9 A DC, with incremental current levels of 3000 mA DC for a 10% inductance change and 4900 mA DC for a 20% change. It has a tolerance of ±10% and uses Pb termination with a Sn63Pb37 finish. The operating temperature range is from -55°C to +130°C, with a moisture sensitivity level (MSL) of 1, and it is available in bulk packaging.
| Weight | 23 g |
|---|---|
| Dimensions | 27.94 × 27.94 × 12.07 mm |
| Series | KM |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 75 |
| DCR (Ω) | 0.03 |
| SRF (MHz) | 3 |
| Current Rating (A DC) | 5.9 |
| INC I L (Δ10% mA DC) | 3000 |
| INC I L (Δ20% mA DC) | 4900 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

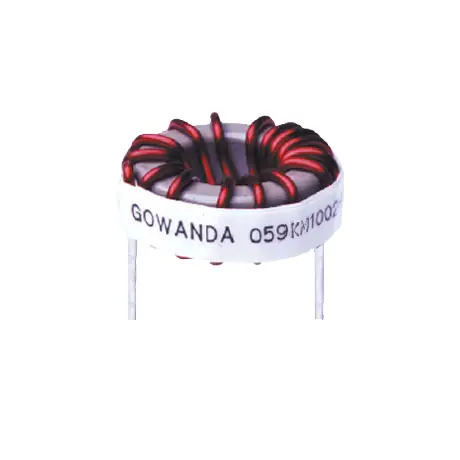

Horizontal Open Construction Toroidal inductor
