106HT1503V

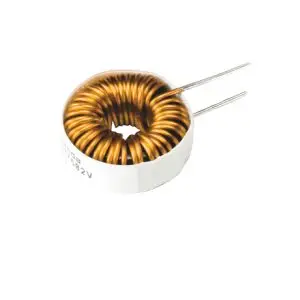

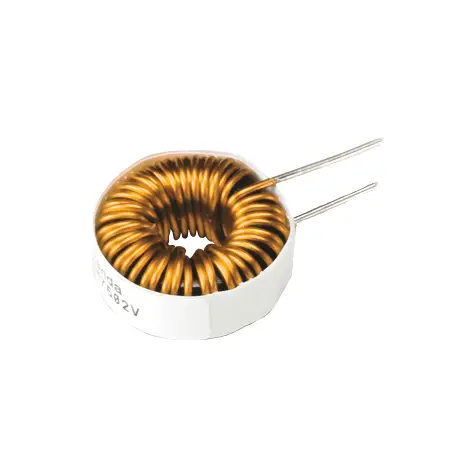

Gowanda’s 106HT1503V is a high-quality vertical toroidal inductor designed for demanding applications. Weighing 50 grams and measuring 34 × 34 × 14.73 mm, this component is part of the HT series and features through-hole technology (THT) for mounting. It is classified under the COTS+ application grade, ensuring enhanced reliability. The inductor offers an inductance of 150 µH with a direct current resistance (DCR) of 52 ohms and a self-resonant frequency (SRF) of 2.3 MHz. It supports a current rating of 6.2 A DC, with incremental current levels of 4900 mA DC for a 10% change and 8000 mA DC for a 20% change. The component has a tolerance of ±10% and utilizes a Pb termination type with a Sn63Pb37 finish. It operates efficiently across a wide temperature range from -55°C to +200°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
