Gowanda’s 106HT2202H is a high-quality horizontal toroidal inductor designed for demanding applications. With a weight of 50 grams and dimensions of 34 × 34 × 14.73 mm, this component belongs to the HT series and features through-hole technology (THT) for mounting. It is classified under the COTS+ application grade, ensuring reliability in commercial off-the-shelf applications. The inductor offers an inductance of 22 µH, a direct current resistance (DCR) of 9.7 Ω, and a self-resonant frequency (SRF) of 16.7 MHz. It supports a current rating of 14.4 A DC, with incremental current limits of 12,800 mA DC for a 10% inductance change and 20,900 mA DC for a 20% change. The component has a tolerance of ±10% and features leaded (Pb) terminations with a Sn63Pb37 finish. It operates efficiently across a wide temperature range from -55°C to +200°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 50 g |
|---|---|
| Dimensions | 34 × 34 × 14.73 mm |
| Series | HT |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 22 |
| DCR (Ω) | 9.7 |
| SRF (MHz) | 16.7 |
| Current Rating (A DC) | 14.4 |
| INC I L (Δ10% mA DC) | 12800 |
| INC I L (Δ20% mA DC) | 20900 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +200°C |
| MSL | 1 |
| Packaging | Bulk |

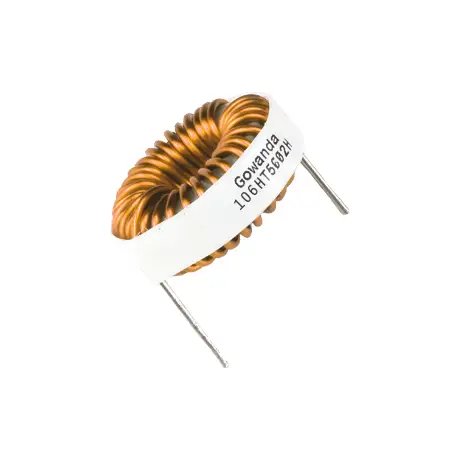

Horizontal Toroidal Inductor
