Gowanda’s 121KM5002HMLF is a high-efficiency horizontal mount standoff toroidal choke designed for demanding applications. Part of the KMHM series, this component features a compact design with dimensions of 22.86 × 22.86 × 12.7 mm and a weight of 12 grams, making it suitable for space-constrained environments. It offers an inductance of 50 µH with a tolerance of ±10%, and a low DCR of 0.03 Ω, ensuring minimal energy loss. The choke supports a current rating of 4.77 A DC and can handle incremental current levels of 2300 mA DC (Δ10%) and 4000 mA DC (Δ20%). With a self-resonant frequency of 2.5 MHz, it is ideal for high-frequency applications. The component is RoHS compliant with Sn/Cu termination finish and is designed for surface mount technology (SMT) applications. It operates reliably across a wide temperature range from -55°C to +130°C and is packaged in bulk, meeting the COTS+ application grade standards.
| Weight | 12 g |
|---|---|
| Dimensions | 22.86 × 22.86 × 12.7 mm |
| Series | KMHM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 50 |
| DCR (Ω) | 0.03 |
| SRF (MHz) | 2.5 |
| Current Rating (A DC) | 4.77 |
| INC I L (Δ10% mA DC) | 2300 |
| INC I L (Δ20% mA DC) | 4000 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

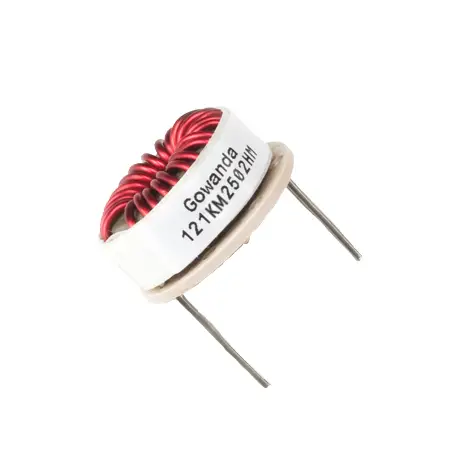

Horizontal Mount High Efficiency Standoff Toroidal Choke
