Gowanda’s 121KM7502SM is a high-quality wirewound toroidal inductor designed for demanding applications. With a weight of 14.5 grams and compact dimensions of 23.88 × 23.88 × 12.95 mm, this inductor is part of the KMSM series and features surface mount technology (SMT) for easy integration into electronic systems. It is classified as COTS+ application grade, ensuring reliability in commercial off-the-shelf applications. The inductor offers an inductance of 75 µH, a direct current resistance (DCR) of 0.045 Ω, and a self-resonant frequency (SRF) of 3 MHz. It supports a current rating of 3.9 A DC, with incremental current levels of 1800 mA DC for a 10% inductance change and 3100 mA DC for a 20% change. The component has a tolerance of ±10% and features lead (Pb) termination with a Sn63Pb37 finish. It operates efficiently across a wide temperature range of -55°C to +130°C and has a moisture sensitivity level (MSL) of 1, making it suitable for various environmental conditions. The inductor is available in tape and reel (T&R) packaging for convenient handling and assembly.
| Weight | 14.5 g |
|---|---|
| Dimensions | 23.88 × 23.88 × 12.95 mm |
| Series | KMSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 75 |
| DCR (Ω) | 0.045 |
| SRF (MHz) | 3 |
| Current Rating (A DC) | 3.9 |
| INC I L (Δ10% mA DC) | 1800 |
| INC I L (Δ20% mA DC) | 3100 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |

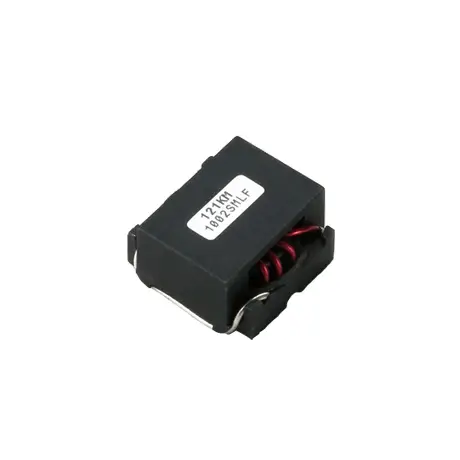

Wirewound Toroidal Inductor
