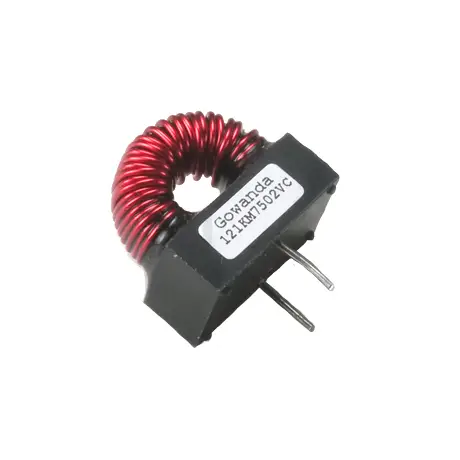

Gowanda’s 121KM7502VCLF is a high-quality Vertical Mount Potted Toroidal Inductor designed for reliability and performance in demanding applications. Weighing 12 grams and measuring 20.32 × 12.7 × 24.13 mm, this inductor is part of the KMVC series and features a Through-Hole Technology (THT) mounting type. It is suitable for COTS+ application grades, offering an inductance of 75 µH with a direct current resistance (DCR) of 0.045 Ω and a self-resonant frequency (SRF) of 2.5 MHz. The inductor supports a current rating of 3.9 A DC, with incremental current levels of 1800 mA DC for a 10% change and 3100 mA DC for a 20% change. It has a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The component operates efficiently across a temperature range of -55°C to +130°C and has a moisture sensitivity level (MSL) of 1, making it ideal for bulk packaging.
| Weight | 12 g |
|---|---|
| Dimensions | 20.32 × 12.7 × 24.13 mm |
| Series | KMVC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 75 |
| DCR (Ω) | 0.045 |
| SRF (MHz) | 2.5 |
| Current Rating (A DC) | 3.9 |
| INC I L (Δ10% mA DC) | 1800 |
| INC I L (Δ20% mA DC) | 3100 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

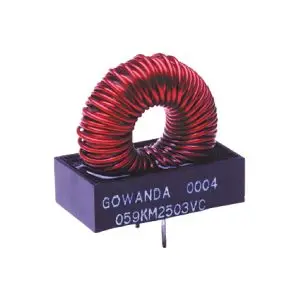

Vertical Mount Potted Toroidal Inductor
