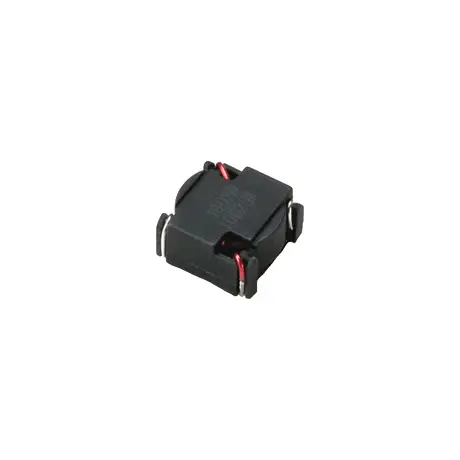

Gowanda’s 180KM1002SMLF is a high-quality wirewound toroidal inductor designed for demanding applications. With a compact size of 8.64 × 8.64 × 6.86 mm and weighing just 0.7 grams, it is ideal for space-constrained environments. Part of the KMSM series, this surface-mount technology (SMT) component is crafted for COTS+ grade applications, ensuring reliability and performance. It offers an inductance of 10 µH with a direct current resistance (DCR) of 0.1 Ω and a self-resonant frequency (SRF) of 35 MHz. The inductor supports a current rating of 1.6 A DC, with incremental current levels of 430 mA DC for a 10% inductance change and 860 mA DC for a 20% change. It features a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The device operates efficiently across a wide temperature range from -55°C to +130°C and has a moisture sensitivity level (MSL) of 1, making it suitable for various industrial applications. Packaged in tape and reel (T&R) format, it ensures ease of handling and integration into automated assembly processes.
| Weight | 0.7 g |
|---|---|
| Dimensions | 8.64 × 8.64 × 6.86 mm |
| Series | KMSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 10 |
| DCR (Ω) | 0.1 |
| SRF (MHz) | 35 |
| Current Rating (A DC) | 1.6 |
| INC I L (Δ10% mA DC) | 430 |
| INC I L (Δ20% mA DC) | 860 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |
Wirewound Toroidal Inductor
