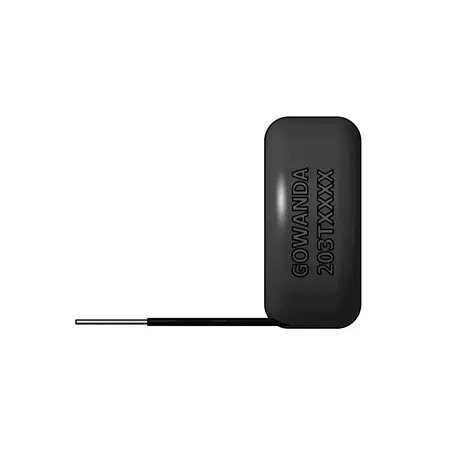

Gowanda’s 203T2007 is a self-leaded high inductance toroidal inductor, part of the T-Medium series, designed for high-quality, reliable electronic applications. It features a weight of 18 grams and dimensions of 27.94 × 27.94 × 12.7 mm, with a through-hole mounting type. This component is suitable for COTS+ grade applications, offering an inductance of 2,000,000 µH, a DCR of 13 Ω, and a current rating of 0.038 A DC. It operates at a low frequency with an SRF of 0.25 MHz and a tolerance of ±2%. The inductor has a Pb termination type with a Sn63Pb37 finish, and it can function within a temperature range of -40°C to +105°C. It is rated with an MSL of 1 and is available in bulk packaging.
| Weight | 18 g |
|---|---|
| Dimensions | 27.94 × 27.94 × 12.7 mm |
| Series | T-Medium |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 2000000 |
| DCR (Ω) | 13 |
| Current Rating (A DC) | 0.038 |
| SRF (MHz) | 0.25 |
| Frequency | Low |
| Tolerance | ±2% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |
Self-Leaded High Inductance Toroidal Inductor
