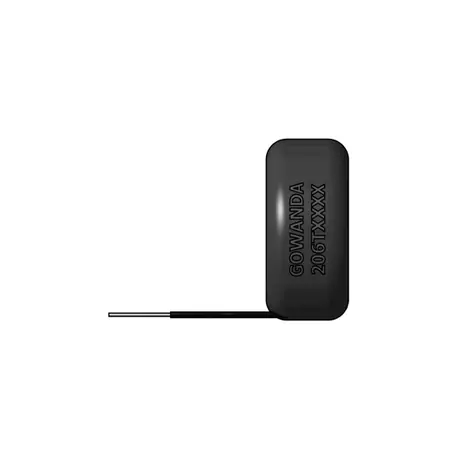

Gowanda’s 206T1007 is a self-leaded high inductance toroidal inductor, part of the T-Medium series, designed for medium frequency applications. This component is characterized by its compact dimensions of 27.94 × 27.94 × 12.7 mm and a weight of 18 grams. It features a high inductance of 1,000,000 µH, a DCR of 18 Ω, and a current rating of 0.029 A DC, with an SRF of 0.22 MHz. The inductor is suitable for COTS+ application grades and is mounted using through-hole technology (THT). It offers a tolerance of ±2% and operates within a temperature range of -40°C to +105°C. The termination type is Pb with a Sn63Pb37 finish, and it is packaged in bulk with an MSL of 1, ensuring reliability and quality in various electronic applications.
| Weight | 18 g |
|---|---|
| Dimensions | 27.94 × 27.94 × 12.7 mm |
| Series | T-Medium |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 1000000 |
| DCR (Ω) | 18 |
| Current Rating (A DC) | 0.029 |
| SRF (MHz) | 0.22 |
| Frequency | Medium |
| Tolerance | ±2% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |
Self-Leaded High Inductance Toroidal Inductor
