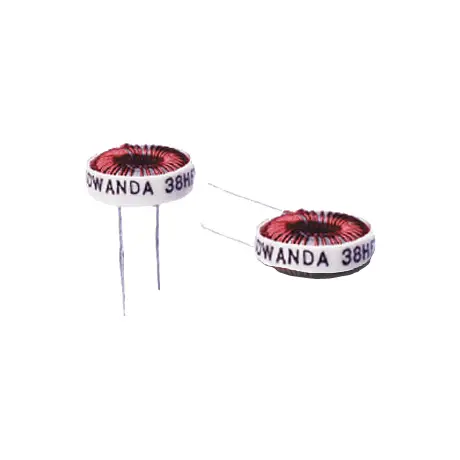

Gowanda’s 38HF1003H is a high-quality horizontal toroidal inductor designed for reliable performance in demanding applications. Weighing 1.65 grams and measuring 11.68 × 11.68 × 4.57 mm, this component is part of the HF series and features through-hole technology (THT) for mounting. It is classified as COTS+ grade, ensuring suitability for commercial off-the-shelf applications with enhanced reliability. The inductor offers an inductance of 100 µH, a direct current resistance (DCR) of 0.25 Ω, and a self-resonant frequency (SRF) of 4 MHz. It supports a current rating of 1.146 A DC, with incremental current limits of 1200 mA DC for a 10% inductance change and 1600 mA DC for a 20% change. The component has a tolerance of ±10% and features lead-based terminations with a Sn63Pb37 finish. It operates effectively within a temperature range of -55°C to +130°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 1.65 g |
|---|---|
| Dimensions | 11.68 × 11.68 × 4.57 mm |
| Series | HF |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 100 |
| DCR (Ω) | 0.25 |
| SRF (MHz) | 4 |
| Current Rating (A DC) | 1.146 |
| INC I L (Δ10% mA DC) | 1200 |
| INC I L (Δ20% mA DC) | 1600 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |
Horizontal Toroidal Inductor
