Gowanda’s 5A501 is a wirewound high current power choke designed for demanding applications, featuring a weight of 38 grams and compact dimensions of 22.23 × 22.23 × 16.26 mm. Part of Series A, this component is mounted using through-hole technology (THT) and is classified under the COTS+ application grade, ensuring high reliability. It offers an inductance of 5 µH with a direct current resistance (DCR) of 0.012 Ω and a current rating of 5 A DC. The self-resonant frequency (SRF) is 30 MHz, with a tolerance of ±10%. The termination type is lead-based (Pb) with a Sn63Pb37 finish, suitable for operating temperatures ranging from -55°C to +125°C. It has a moisture sensitivity level (MSL) of 1 and is available in bulk packaging.
| Weight | 38 g |
|---|---|
| Dimensions | 22.23 × 22.23 × 16.26 mm |
| Series | A |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 5 |
| DCR (Ω) | 0.012 |
| Current Rating (A DC) | 5 |
| SRF (MHz) | 30 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | Bulk |

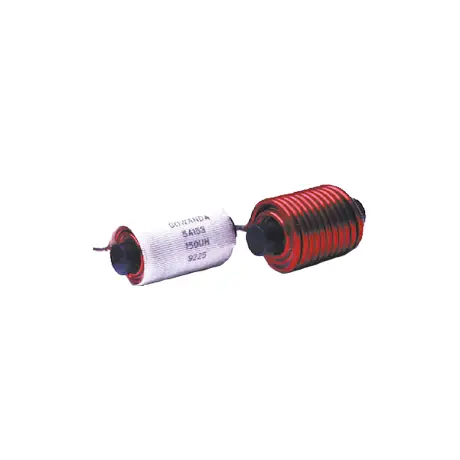

Wirewound High Current Power Choke
