Gowanda’s 894AT1003RMLF is a high-quality, horizontally mounted ruggedized toroidal inductor, part of the ATRM series, designed for demanding applications. With a weight of 57 grams and dimensions of 34 × 34 × 20.32 mm, this inductor is built for through-hole technology (THT) mounting and is classified under COTS+ application grade, ensuring reliability in commercial off-the-shelf applications. It features an inductance of 100 µH, a direct current resistance (DCR) of 0.023 Ω, and a self-resonant frequency (SRF) of 1.5 MHz. The inductor supports a current rating of 8 A DC, with incremental current limits of 7100 mA DC for a 10% change and 10600 mA DC for a 20% change. It offers a tolerance of ±10% and is RoHS compliant with a Sn/Cu termination finish. The component operates efficiently within a temperature range of -55°C to +130°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 57 g |
|---|---|
| Dimensions | 34 × 34 × 20.32 mm |
| Series | ATRM |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 100 |
| DCR (Ω) | 0.023 |
| SRF (MHz) | 1.5 |
| Current Rating (A DC) | 8 |
| INC I L (Δ10% mA DC) | 7100 |
| INC I L (Δ20% mA DC) | 10600 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

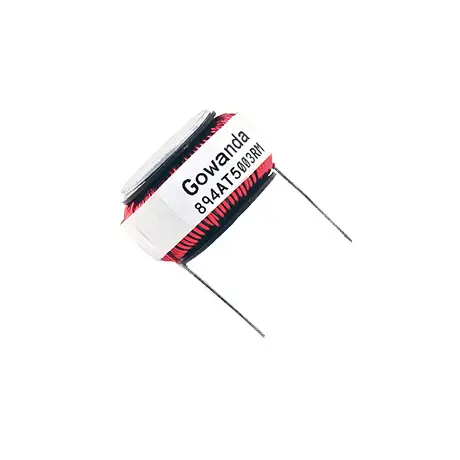

Horizontal Mount Ruggedized Toroidal Inductor
