Gowanda’s 894AT5002VCLF is a high-quality, reliable vertical mount encapsulated toroidal choke designed for demanding applications. With a weight of 58 grams and dimensions of 36.83 × 20.96 × 35.56 mm, this component is part of the ATVC series and features through-hole technology (THT) mounting. It is suitable for COTS+ application grades, offering an inductance of 50 µH, a DCR of 0.016 Ω, and a self-resonant frequency of 4 MHz. The choke supports a current rating of 9.9 A DC, with incremental current limits of 10800 mA DC for a 10% change and 15200 mA DC for a 20% change. It has a tolerance of ±10% and is RoHS compliant, with a termination finish of Sn/Cu. The component operates efficiently within a temperature range of -55°C to +130°C and has a moisture sensitivity level (MSL) of 1, making it ideal for bulk packaging.
| Weight | 58 g |
|---|---|
| Dimensions | 36.83 × 20.96 × 35.56 mm |
| Series | ATVC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 50 |
| DCR (Ω) | 0.016 |
| SRF (MHz) | 4 |
| Current Rating (A DC) | 9.9 |
| INC I L (Δ10% mA DC) | 10800 |
| INC I L (Δ20% mA DC) | 15200 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

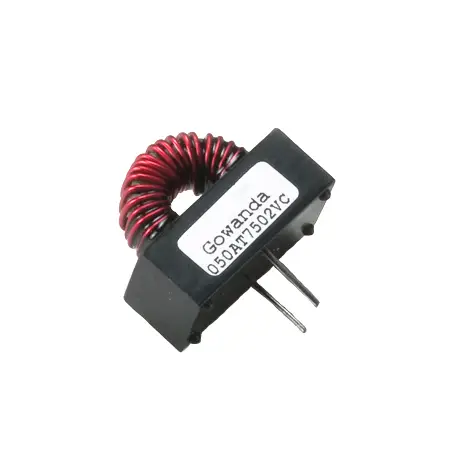

Vertical Mount Encapsulated Toroidal Choke
