Gowanda’s 894KM1004V is a high-quality Vertical Open Construction Toroidal Inductor designed for reliable performance in demanding applications. Weighing 47 grams and measuring 33.02 × 33.02 × 16.51 mm, this inductor is part of the KM series and features Through-Hole Technology (THT) mounting. It is suitable for COTS+ application grades, offering an inductance of 1000 µH with a direct current resistance (DCR) of 0.235 Ω and a self-resonant frequency (SRF) of 0.4 MHz. The inductor supports a current rating of 2.4 A DC, with incremental current levels of 1000 mA DC for a 10% change and 1800 mA DC for a 20% change. It has a tolerance of ±10% and uses Pb termination with a Sn63Pb37 finish. The operating temperature ranges from -55°C to +130°C, with a moisture sensitivity level (MSL) of 1, and it is available in bulk packaging.
| Weight | 47 g |
|---|---|
| Dimensions | 33.02 × 33.02 × 16.51 mm |
| Series | KM |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 1000 |
| DCR (Ω) | 0.235 |
| SRF (MHz) | 0.4 |
| Current Rating (A DC) | 2.4 |
| INC I L (Δ10% mA DC) | 1000 |
| INC I L (Δ20% mA DC) | 1800 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

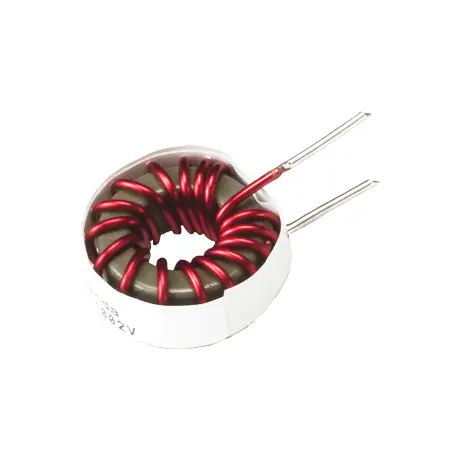

Vertical Open Construction Toroidal inductor
