Gowanda’s 894KM2502H is a high-quality, reliable horizontal open construction toroidal inductor, designed for demanding applications. Weighing 48 grams and measuring 33.02 × 33.02 × 16.51 mm, this component is part of the KM series and features through-hole technology (THT) for mounting. It is suitable for COTS+ application grades, offering an inductance of 25 µH with a direct current resistance (DCR) of 0.012 Ω and a self-resonant frequency (SRF) of 8 MHz. The inductor supports a current rating of 12.8 A DC, with incremental current limits of 6600 mA DC for a 10% inductance change and 11000 mA DC for a 20% change. It has a tolerance of ±10% and uses Pb termination with a Sn63Pb37 finish. The component operates within a temperature range of -55°C to +130°C, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 48 g |
|---|---|
| Dimensions | 33.02 × 33.02 × 16.51 mm |
| Series | KM |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 25 |
| DCR (Ω) | 0.012 |
| SRF (MHz) | 8 |
| Current Rating (A DC) | 12.8 |
| INC I L (Δ10% mA DC) | 6600 |
| INC I L (Δ20% mA DC) | 11000 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

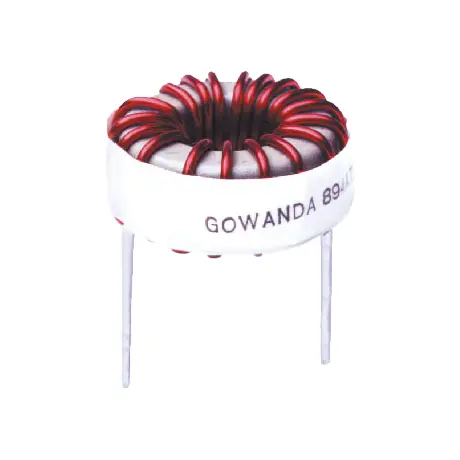

Horizontal Open Construction Toroidal inductor
