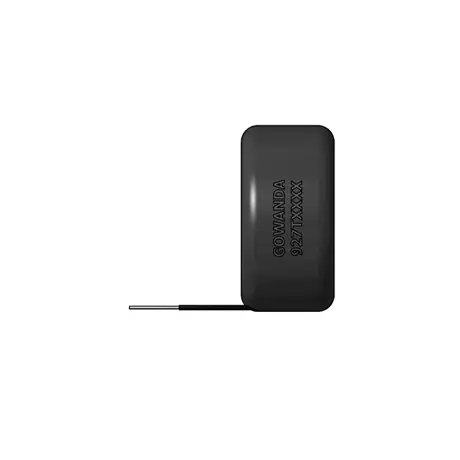

Gowanda’s 927T5005 is a self-leaded high inductance toroidal inductor, part of the T-Large series, designed for high-quality, reliable electronic applications. With dimensions of 35.56 × 35.56 × 17.78 mm and a weight of 54 g, this component is suitable for through-hole technology (THT) mounting. It features an inductance of 50000 µH, a direct current resistance (DCR) of 4.5 Ω, and a current rating of 0.324 A DC, making it ideal for low-frequency applications. The inductor operates efficiently within a temperature range of -40°C to +105°C and has a moisture sensitivity level (MSL) of 1. It is finished with a Sn63Pb37 termination and is packaged in bulk, ensuring durability and ease of integration into various systems.
| Weight | 54 g |
|---|---|
| Dimensions | 35.56 × 35.56 × 17.78 mm |
| Series | T-Large |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 50000 |
| DCR (Ω) | 4.5 |
| Current Rating (A DC) | 0.324 |
| SRF (MHz) | 0.07 |
| Frequency | Low |
| Tolerance | ±2% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |
Self-Leaded High Inductance Toroidal Inductor
